• Model NO.：GD-H1089
• HS Code：9031809090
• Production Capacity：200PCS,Month

Basic Info.

Model NO. GD-H1089 HS Code 9031809090 Production Capacity 200PCS/Month

Product Description

Fully Automatic Cold Cranking Simulator For Testing Apparent Viscosity Of Engine Oil and Base Stocks


Introduction:

The Fully Automatic Cold Cranking Simulator mainly tests the low temperature dynamic viscosity index of engine oil.
The Fully Automatic Cold Cranking Simulator is fully controlled by computer. The viscosity result is automatically calculated.
The Fully Automatic Cold Cranking Simulator is currently the top CCS tester in China.


Features:

1. The Fully Automatic Cold Cranking Simulator complies with ASTM D5293, GB/T 6538 standard
2. Test temperature range: -5 to -40ºC
3. Viscosity range: 1500mPa·s to 20,000mPa·s (cP)
4. Semiconductor refrigeration, green and environmentally friendly, no flammable and harmful medium.
5. Computer automatic control, self-correction.
6. 12 samples are measured at a time, eliminating the need for operators to track operations randomly.
7. Automatic calculation of viscosity to provide more accurate data and test results files.
8. The cleaning process has a heating program to ensure thorough cleaning of the viscosity tank and improve the test accuracy.
9. Test time: The test time of each sample is about 10 minutes.
10. Operating system: Windows XP/Win7/Win8/Win10 operating system, software operation is convenient, intuitive, and can be automatically controlled.
11. Instrument operation, microcomputer control, Windows operating system, full English interface.
12. Improved rotor, low torque test condition, high repeatability.
13. Automatically generate a calibration curve that directly displays the test viscosity results.
14. All test process is fully automatic, no manual operation is required, and the test is automatically stopped and warmed up.
15. Automatically calculate instrument deviation after calibration.


Specifications:


1	Applicable standards	GB/T6538, ASTM D2602, D5293
2	Refrigeration method	semiconductor refrigeration
3	Circulation mode	cooling water circulation
4	Temperature control mode	PID temperature controller
5	Detection method	automatic test, automatic injection, automatic cleaning
6	Result processing	automatic storage and printing
7	Test temperature	-5ºC, -10ºC, -15ºC, -20ºC, -25ºC, -30ºC, -35ºC, -40ºC
8	Working power supply	AC220 V, 50Hz

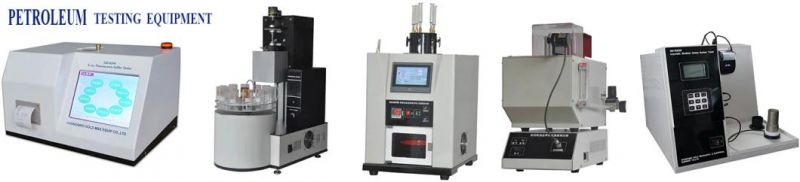

All Lubricant Testing Equipment are available here! Welcome to visit us!
