GDB-IV Transformer Turns Ratio Tester/Three Phase TTR Tester/Portable TTR Tester
HV Hipot Electric Co., Ltd.- Type:Universal Testing Machine
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
Base Info
- Model NO.:GDB-IV
- Weight:about 10kg
- Power Source:AC220V
- Accuracy of current measurement:1% FS+2digits
- Ambient temperature:-20~40 centigrade
- Ambient humidity:less than 85% RH
- Resolution of angle:0.01 centigrade
- Transport Package:Wooden Case
- Specification:ISO9001
- Trademark:HV Hipot
- Origin:Wuhan, China
- HS Code:8501109990
- Production Capacity:5000,Year
Description
Basic Info.
Model NO. GDB-IV Weight about 10kg Power Source AC220V Accuracy of current measurement 1% FS+2digits Ambient temperature -20~40 centigrade Ambient humidity less than 85% RH Resolution of angle 0.01 centigrade Transport Package Wooden Case Specification ISO9001 Trademark HV Hipot Origin Wuhan, China HS Code 8501109990 Production Capacity 5000/YearProduct Description
GDB-IV Transformer Turns Ratio Tester/Three Phase TTR Tester/Portable TTR TesterProduct Description

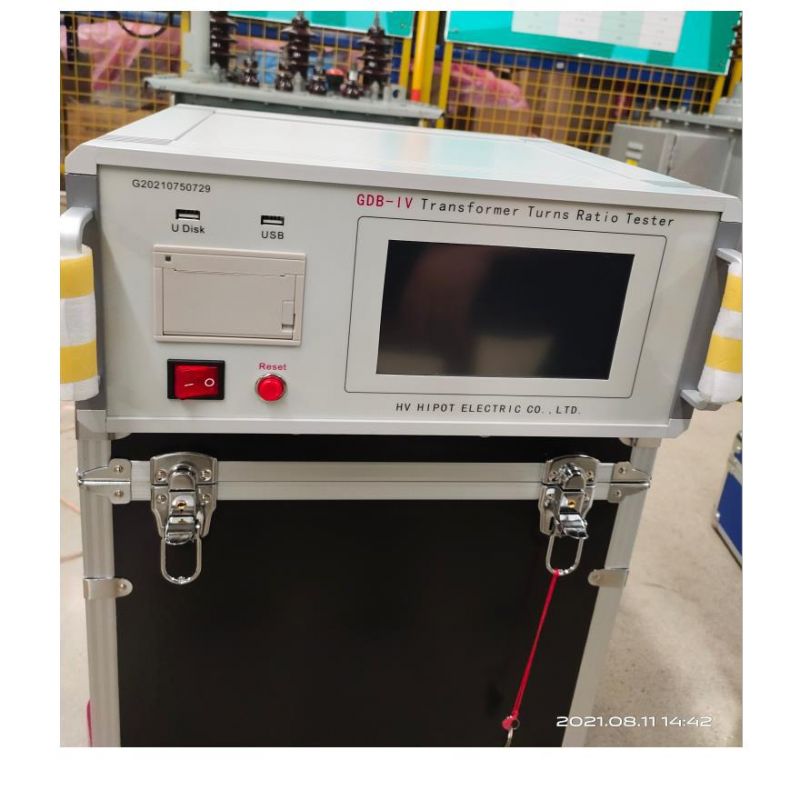

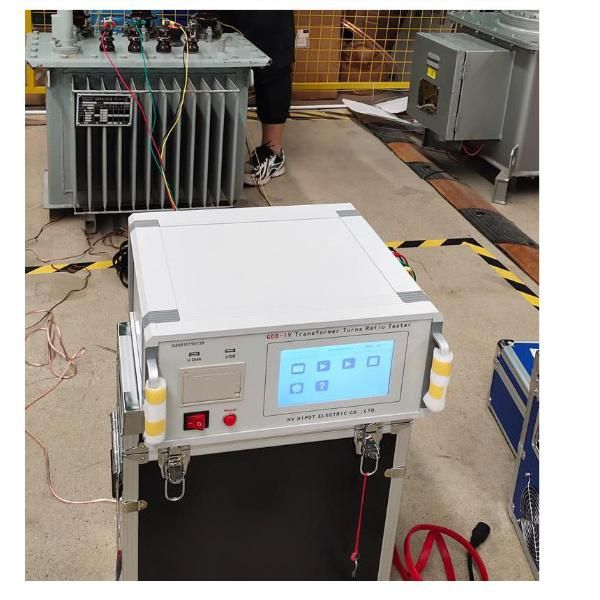

GDB-IV Transformer Turns Ratio Tester is an automatic tester that measures transformation ratio of single phase and three phase transformers, which is suitable for using in power system, transformer manufacturer and railway electrical system. It is suitable to be used for power transformer, phase shifting rectifier transformer, Scott transformer, Inverse Scott transformer.

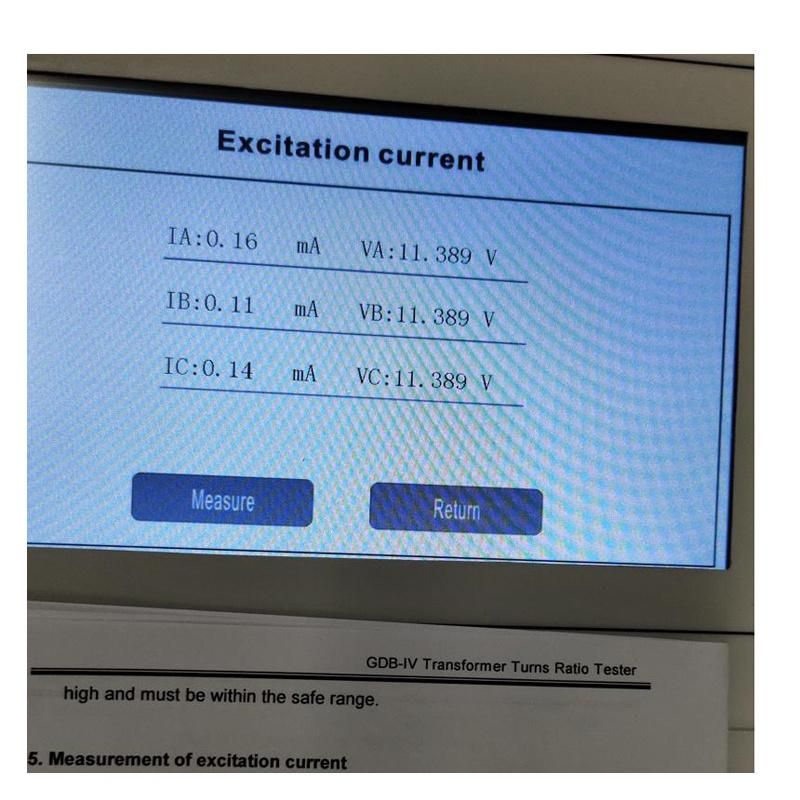

- 7-inch touch screen, full English menu.

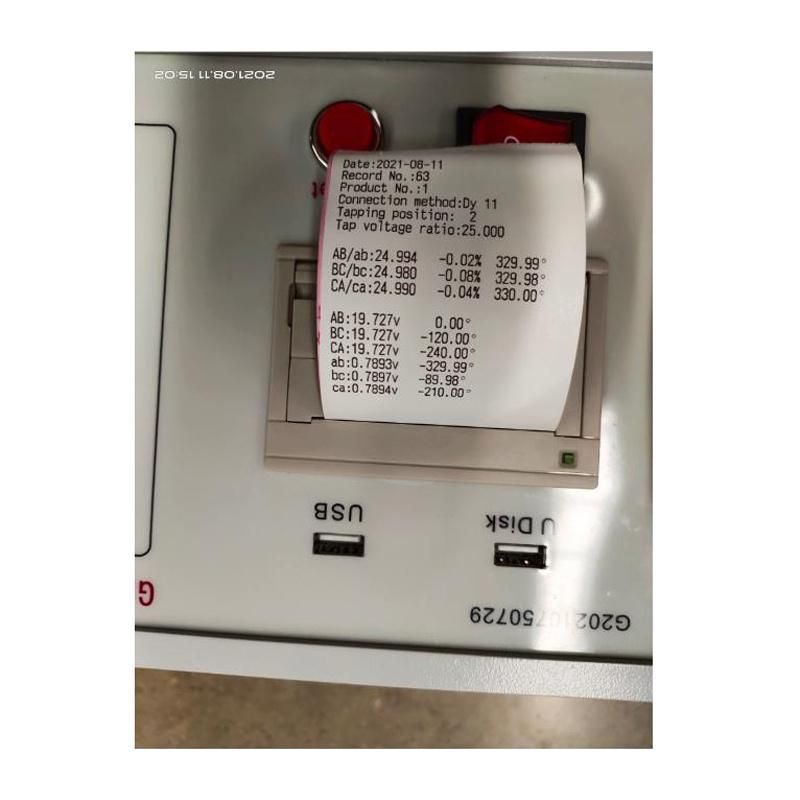

- It generates 3-phase power or 2-phase power, and output to HV side of transformer.LV side and HV side are sampling at the same time, and group, turns ratio, error and phase error are calculated at last.
- The instrument output 2voltages, which enhance the adaptation of different voltage grade transformer.
- For the transformer with tap changer, after rated parameter is set, the position of tap changer, tap changer ratio of current position can be determined automatically when measuring.
- Fast speed, testing time for one group data is 10s.
- Three-phase(120°) or two-phase(90°) power supply with stable amplitude and constant phase.
- With over-current, over-voltage protection function, over-heat function, reverse connection protection function.
- With 2pcs USB port, one for online and it can be controlled and measured by PC, data can be uploaded and saved by EXCEL file, one for inserting USB disk to save data.
Specifications
Power Supply | Lithium battery 10AH |
Turns Ratio Range | 1-10000 |
Group testing range | 0-11 |
Accuracy of turns ratio test | 1-500 Class 0.1 High voltage 500-2000 Class 0.2 High voltage 2000-5000 Class 0.5 High voltage 1-100 Class 0.2 Low voltage 100-500 Class 0.5 Low voltage |
Turns Ratio Resolution | 0.001 |
Resolution of angle | 0.1° |
Accuracy of current measurement | 1% FS+2digits |
Ambient temperature | -20~40ºC |
Ambient humidity | ≤85% RH |
Power input | Lithium Battery 10AH 12V |
Dimension | 387*175*379 mm |
Weight | 9 kg |
