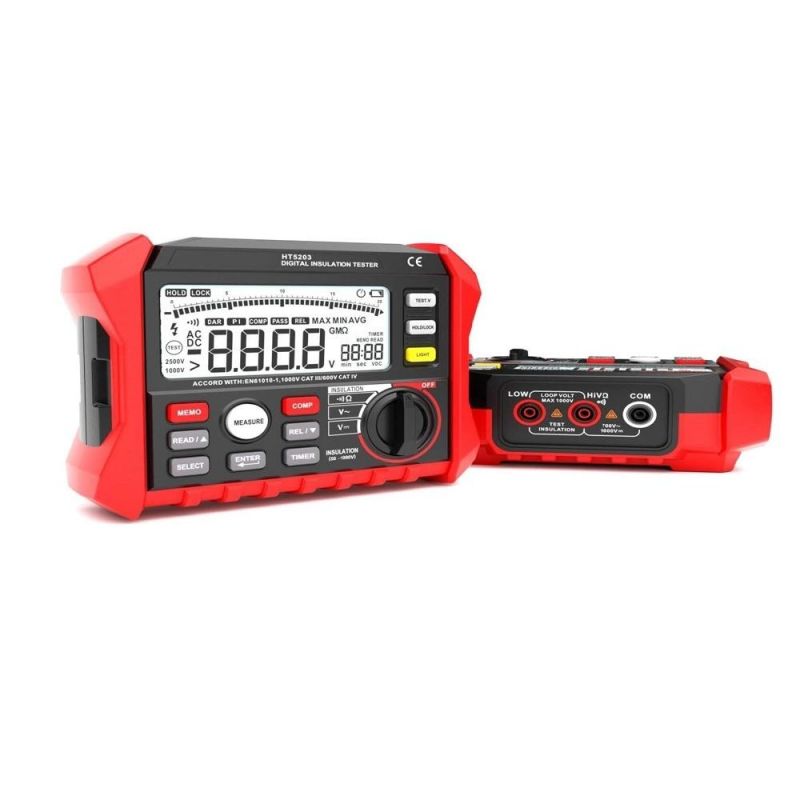

Hototech Insulation Tester and Portable Insulation Tester Megger Accept OEM Your Own Brand Insulation Resistance Tester
Dongguan Hong Tu Instrument Co., Ltd.- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Insulation Tester
- Display：Digital
- Weight：1kg
- Power Supply：6*Lr14 Batteries
Base Info
- Model NO.：HT5205
- Short Circuit Current：Approx.3mA
- Transport Package：4PCS in 1 Carton
- Specification：180*140*65mm
- Trademark：HOTOTECH
- Origin：Guangdong, China
- Production Capacity：100000PCS,Year
Description
SPECIFICATIONS
FEATURE
GENERAL
Source Output Voltage
Measuring Range
Auto Calculate PI and DAR
Power Supply
6x LR14 batteries
250V(0%~+20%)
0.01MΩ~250MΩ±(3%+5)
Store /Load Function
500V( 0%~+20%)
0.01MΩ~ 500MΩ±(3%+5)
Compare function
Product Size
180mm x 140mm x65mm
1000V(0%~+20%)
0.01MΩ~1000MΩ±(3%+5)
Auto discharge for capacitive load
2500V(0%~+20%)
0.01MΩ~2.00GΩ±(3%+5)
Timer Function for insulation test
Product Weight
Approx.950g
2.00GΩ~20.00GΩ±(5%+0.2GΩ)
Lock function for insulation test
1000V(0%~+20%)
20.00GΩ~ 100.0GΩ±( 10%+2GΩ)
Low Battery Indication
Safety Rating
EN61010-1
EN61557-1
EN61326-1
CAT.IV 600V
CAT.III 1000V
Short circuit current Approx*.3mA
DCV and ACV Test
DC Voltage Test
0.1~1000V±0.5%
Continuity test
AC Voltage Test
0.1~750V±1%
Auto power Off
Continuity Test
0.01 Ω~ 200Ω±0.5%
Digital and analog display
