Hot Sale Electrical Testing Equipment Three Phase TTR Turns Ratio Measuring Meter Transformer Turns Ratio Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Warranty：1 Year
- Product Name：Transformer TTR Tester
- Test Standards：IEC60044,IEC76-1
- Function：Turns Ratio Test,Vector Group Test,Polarity Test
- Group Measurement：1~12
- Ratio Measurement Range：1-10000
Base Info
- Model NO.：GDBC-901
- Accuracy：0.2%
- Test Voltage：0~80V
- Application：Transformer, CT PT
- Transport Package：Plywood Case
- Specification：22KG
- Trademark：GOLD
- Origin：Chongqing, China
- HS Code：9030849000
- Production Capacity：500 Pieces,Month
Description
22Kg

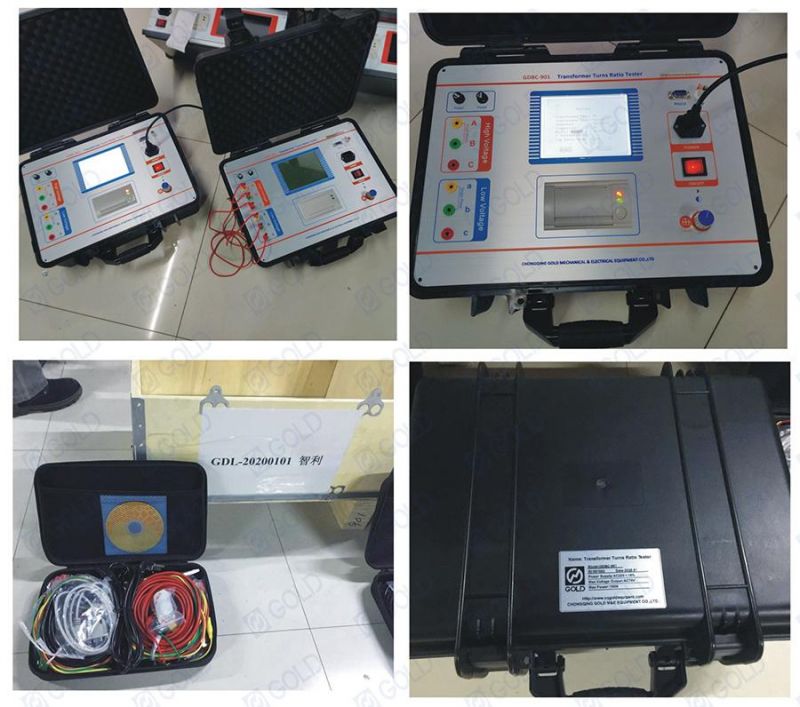

Product Pictures
Certificate of Calibration
Benefits:
The test power supply is generated by the internal power amplifier of the tester, and the waveform distortion rate is less than 0.5% and is not affected by the quality of power supply.
Automatic voltage regulation, with automatic protection functions such as transformer reverse connection, over-current, etc., to avoid damage to the instrument due to incorrect operation.
It can be used for power transformer, CT and PT ratio detection.
Convenient standard transformation ratio setting template, don't need to manually calculate the standard transformation ratio value.
GDBC-901 is very light, only 12KG. It's easy to carry. It's suitable for field test.

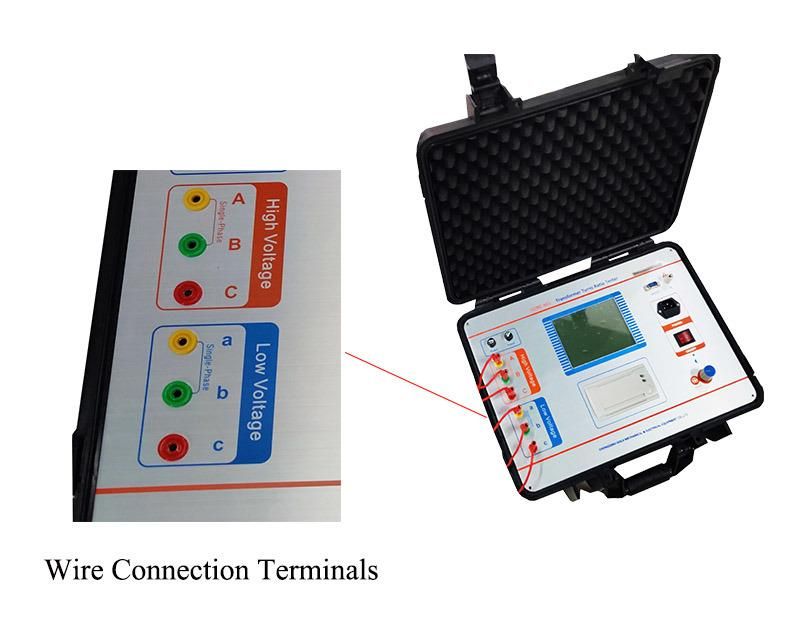

Product Pictures
Certificate of Calibration
