• Model NO.：PHQ-1000H
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Length：2280 mm
• Width：800 mm
• Height：1150 mm
• Number of Package：1 Pieces
• Colour：Jp Standard or Custom
• Delivery：Within 25 Days
• Transport Package：Fumigated Wood Box
• Specification：ISO9001: 2008 CE SGS
• Trademark：Jp
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. PHQ-1000H Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Length 2280 mm Width 800 mm Height 1150 mm Number of Package 1 Pieces Colour Jp Standard or Custom Delivery Within 25 Days Transport Package Fumigated Wood Box Specification ISO9001: 2008 CE SGS Trademark Jp Origin Shanghai China HS Code 90311000 Production Capacity 100 Sets/Month

Product Description

Specifications

With Rotary hydraulic cylinder dynamic balancing machine (PHQ-5000)
Large application&measure range
High initial unbalance permitted
High prec

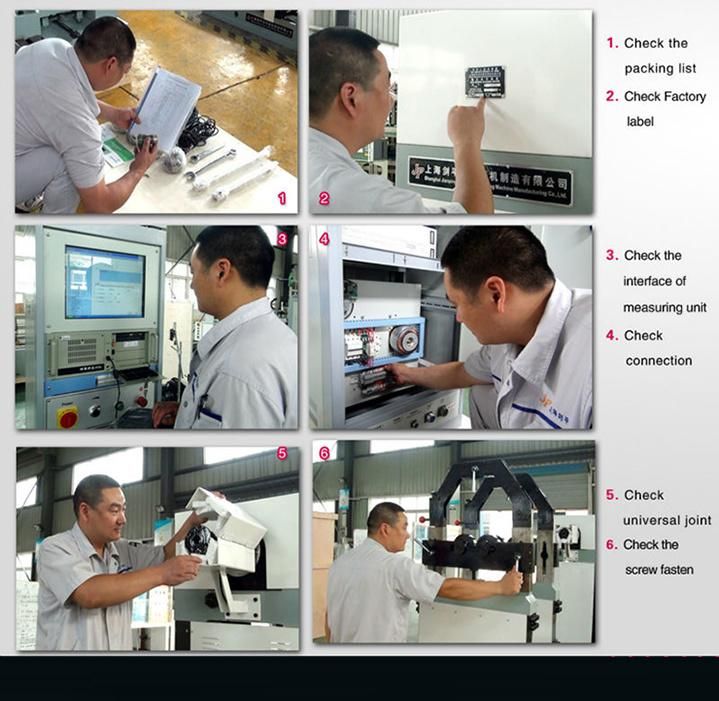

Delivery inspection



1000/2000/3000/5000kg Belt Drive Balancing Machine

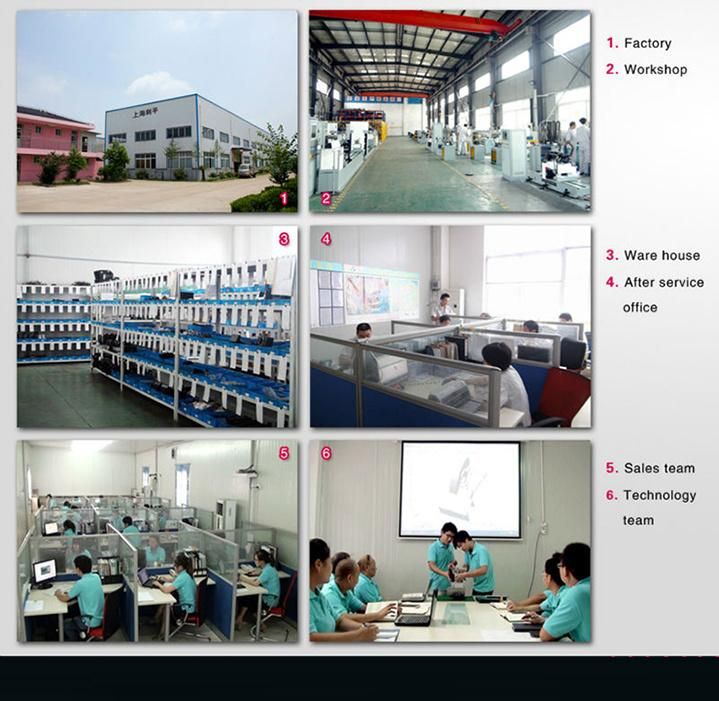

Factory Outlook



Production Description

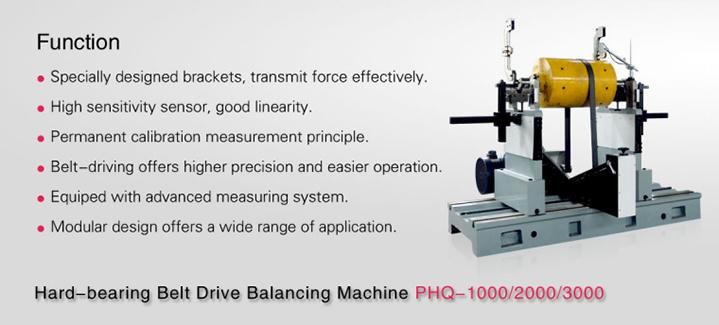

Specially designed brackets transmit mechanical force with low vibration damping
Durable and reliable sensor possesses good linearity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Belt-driving offers higher precision and easier operation
Advanced electrical measuring system and friendly man-machine interface
Modular design offers a wide range of application

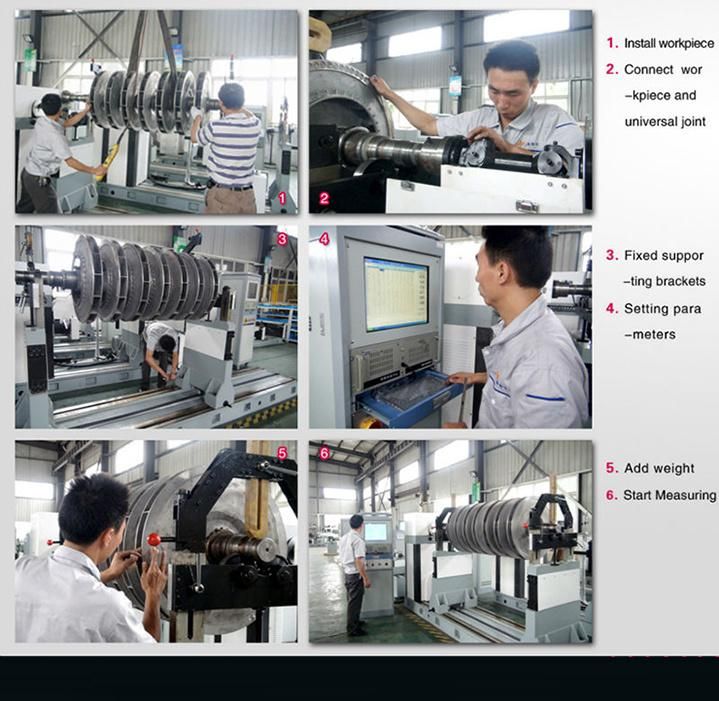

Workshop debugging



Range of Application

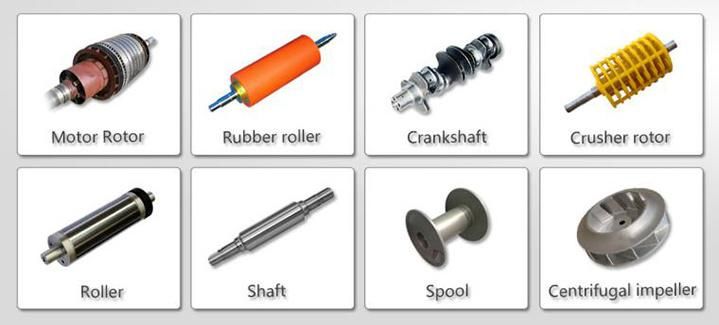

With Rotary hydraulic cylinder dynamic balancing machine (PHQ-5000) is also widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency

Certificates



Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Production Parameters


Technical data at a glance	PHQ-1000	PHQ-2000	PHQ-3000	PHQ-5000
Max Mass of Workpiece (kg)	1000	2000	3000	5000
Max Diameter of Workpiece (mm)	1600	1800	2000	2400
Distance between Two Support Bearings (mm)	160~1500	180~1700	500~2200	500~2200
Journal Diameter Scope of Workpiece (mm)	35~200	40~240	40~380	40~380
Diameter Scope of Driving Belt (mm)	40~400	40~600	50~1000	50~1000
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	1148,1554 +Stepless speed regulation	590,1375 +Stepless speed regulation	795,1853 +Stepless speed regulation	795,1853 +Stepless speed regulation
Motor Power (kw)	4 Frequency conversion	5.5 Frequency conversion	7.5 Frequency conversion	15 Frequency conversion
Min Achievable Residual Unbalance Amount (emar)	Min 0.5g. mm/kg	Min 0.5g. mm/kg	Min 0.5g. mm/kg	Min 0.5g. mm/kg
