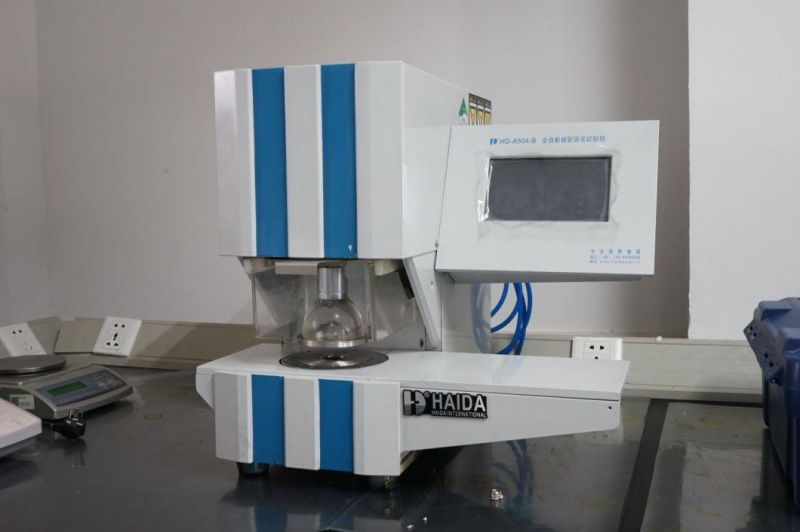

Automatic Paperboard Bursting Strength Tester

Dongguan Haida Equipment Co., Ltd.
  • Type：Strength Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-A504-B
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Delivery Time：15 Days After Receive The Deposit
  • Accuracy：± 0.5%
  • Pressure Range：250~5600kpa
  • Speed of Compression：High Pressure 170± 10ml,Min
  • Specimen Clamping Force：>690kpa
  • Motor：Anti-Vibration Motor 1,4 HP
  • Material of The Ring：Stainless Steel SUS304
  • Oil：85% Glycerin; 15% Distilled Water
  • Sensing Method：Pressure Transmitter

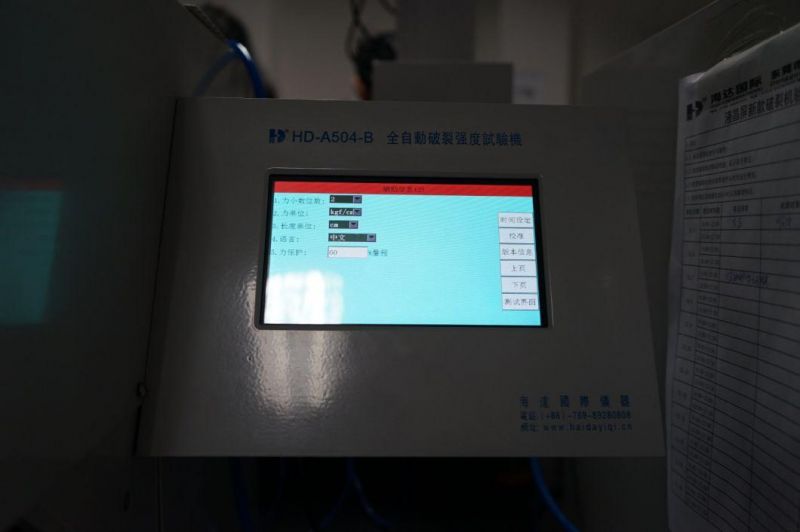

  • Indicating Method：Digital
  • Transport Package：Strong Wooden Case
  • Specification：ASTM-D2210 Tappi T403 ISO2759-2001
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

ModelHD-A504-BCapacity  (Optional)High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)Unit (sitchable)Kpa, psi, kg/cm^2Accuracy± 0.5%Pressure Range250~5600kpaSpeed of CompressionHigh Pressure 170± 10ml/minSpecimen Clamping Force>690kpaOil85% Glycerin; 15% Distilled Water Sensing methodPressure TransmitterIndicating MethodDigitalDisplayLCDMaterial of the RingStainless Steel SUS304Opening in Upper Clamp31.5 ± 0.05 mm DiameterOpening in Lower Clamp31.5 ± 0.05 mm DiameterMotorAnti-vibration Motor 1/4 HPOperation MethodSemi-automaticDimension (L×W×H)430×530×520 mmWeight Approx. 64 kgPower1 phase, AC220± 10%, 50 HzPower Capacity120WStandard ConfigurationRubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottleOptional ConfigurationPrinterStandardJIS-L1004, L1018, L1031, K6328, P8131, P8112
ASTM-D2210; TAPPIT403TS-63
ISO2759-2001; GB/T1539
Automatic Paperboard Bursting Strength Tester

Automatic Paperboard Bursting Strength Tester

The introduction of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
