• Model NO.：HJ- 66
• Weight：0-100Kg
• Power Source：AC220V
• Controller：Full Computer Operation
• Maximum Force：Optional Within 100kn
• Use Itinerary：900mm
• Double Column Width：425mm
• Speed：0.01~500mm,Min
• Force Display Accuracy：0.001kg
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ- 66 Weight 0-100Kg Power Source AC220V Controller Full Computer Operation Maximum Force Optional Within 100kn Use Itinerary 900mm Double Column Width 425mm Speed 0.01~500mm/Min Force Display Accuracy 0.001kg Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Main function:
This machine can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons,thread, spring, wood,medicine packaging materials, tapes etc.

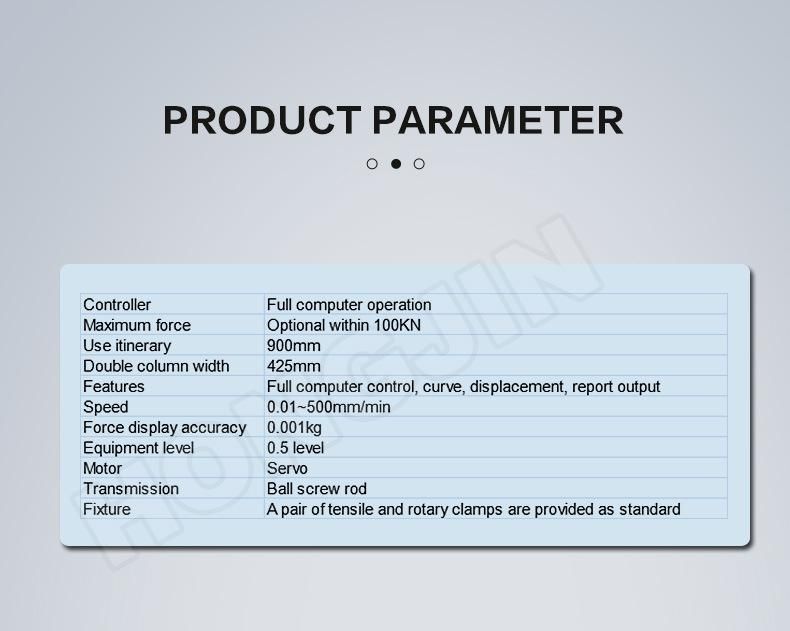

Controller	Full computer operation
Maximum force	Optional within 100KN
Use itinerary	900mm
Double column width	425mm
Features	Full computer control, curve, displacement, report output
Speed	0.01~500mm/min
Force display accuracy	0.001kg
Equipment level	0.5 level
Motor	Servo
Transmission	Ball screw rod
Fixture	A pair of tensile and rotary clamps are provided as standard

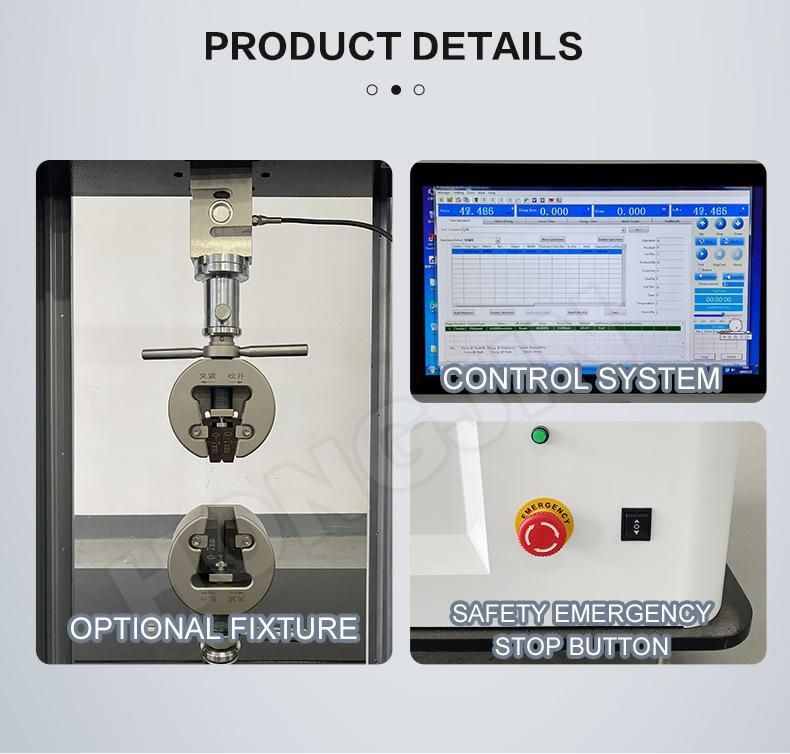

Main features:
1. Adopt  Panasonic servo motor,the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,testing speed and testing curves.
4. Microcomputer for data processing and  analysis, testing results can be saved automatically, testing curves can be transferred out after the test, you can know the testing process through the testing curves, or compare with others curves, or amplify the curves.
5. The testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.
