• Model NO.：HJ- 65
• Weight：0-100Kg
• Power Source：AC220V
• Controller：Full Computer Operation
• Maximum Force：Optional Within 100kn
• Use Itinerary：900mm
• Double Column Width：425mm
• Speed：0.01~500mm,Min
• Force Display Accuracy：0.001kg
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ- 65 Weight 0-100Kg Power Source AC220V Controller Full Computer Operation Maximum Force Optional Within 100kn Use Itinerary 900mm Double Column Width 425mm Speed 0.01~500mm/Min Force Display Accuracy 0.001kg Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

This machine is suitable for tensile, compression, bending, shearing and tearing test of rubber, plastic, electrical wire and cable, composite, plastic profiled bar, waterproof roll, etc.
They may add test methods or rules according to customers' requirement. They are essential testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.

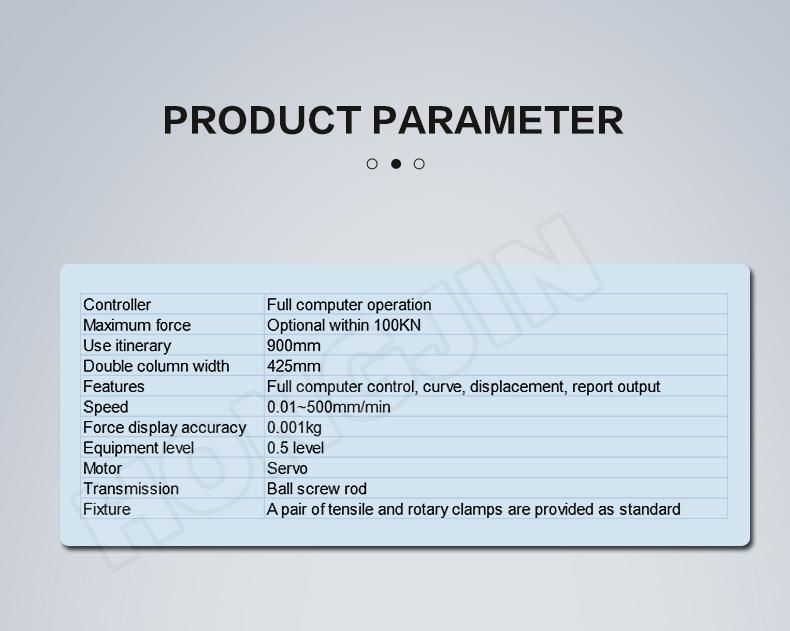

Controller	Full computer operation
Maximum force	Optional within 100KN
Use itinerary	900mm
Double column width	425mm
Features	Full computer control, curve, displacement, report output
Speed	0.01~500mm/min
Force display accuracy	0.001kg
Equipment level	0.5 level
Motor	Servo
Transmission	Ball screw rod
Fixture	A pair of tensile and rotary clamps are provided as standard

Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.

Corresponding standard :
GB/T16491-1996  electronic universal testing machine
