• Model NO.：GD-3536-1
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Item：Semi-Auto Petroleum Products Coc Cleveland Open Cu
• Flash Point Tester Type：Semi-Auto
• Test Method：Cleveland Open Cup
• Applicable Standards：ASTM D92
• Measurement Range：Room Temperature~400c
• Application：Test Petroleum Products with Flash Points Above 79
• Features：Semi-Auto Model, Reliable, High Cost-Effective Per
• Packing Size：73*41*40cm
• Gross Weight：10kg
• Warranty Period：1 Year
• Transport Package：Packed in Veneer Case
• Specification：ASTM D92
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. GD-3536-1 Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Item Semi-Auto Petroleum Products Coc Cleveland Open Cu Flash Point Tester Type Semi-Auto Test Method Cleveland Open Cup Applicable Standards ASTM D92 Measurement Range Room Temperature~400c Application Test Petroleum Products with Flash Points Above 79 Features Semi-Auto Model, Reliable, High Cost-Effective Per Packing Size 73*41*40cm Gross Weight 10kg Warranty Period 1 Year Transport Package Packed in Veneer Case Specification ASTM D92 Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

GD-3536-1 Cleveland Open Cup Flash Point Tester for flash and fire points of petroleum products


ASTM D92 Cleveland Open Cup Apparatus:

1. The Cleveland Open Cup Flash Point Tester is designed and made as per GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.
2. The Cleveland Open Cup Flash Point Tester is used to determine the flash and fire points of all petroleum products, except fuel oils and those having an open cup flash below 79°C (175°F). It conforms to ASTM D92 and related specifications, mainly for flash points above 79°C (175°F).



Technical Features:

1. It adopts technology of single chip microcomputer and LCD screen. English man-machine interface.The heating device is continuously adjustable.Easy to set parameters.
2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.
3. It is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.
4. The Cleveland Open Cup Flash Point Tester is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.
Accurate heating rate.The instrument can do test automatically.
Attention: Operator only need to observe the flash point appearing. The cost performance is high.


Technical Specifications:

1. Power supply:  AC(220±10%)V, 50Hz.
2. Heating device: Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400ºC.
3. Temperature control: Single chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92.
4. Temperature display: LCD shows temperature parameters. The display range is 0ºC~400ºC, display accuracy is 0.1ºC.
5. Flash point detecting device: It applies the test flame automatically.
6. Temperature sensor: RTD, PT100
7. Igniting device: (1) Ignition source: coal gas (or civil gas); (2) Flame diameter is 3.2mm~4.8mm
8. Ambient temperature: (-10∼50)ºC
9. Relative humidity: ≤85%
10.Maximum power consumption: 650W
11.Dimension: 340mm*320mm*450mm (Temperature sensor is included)

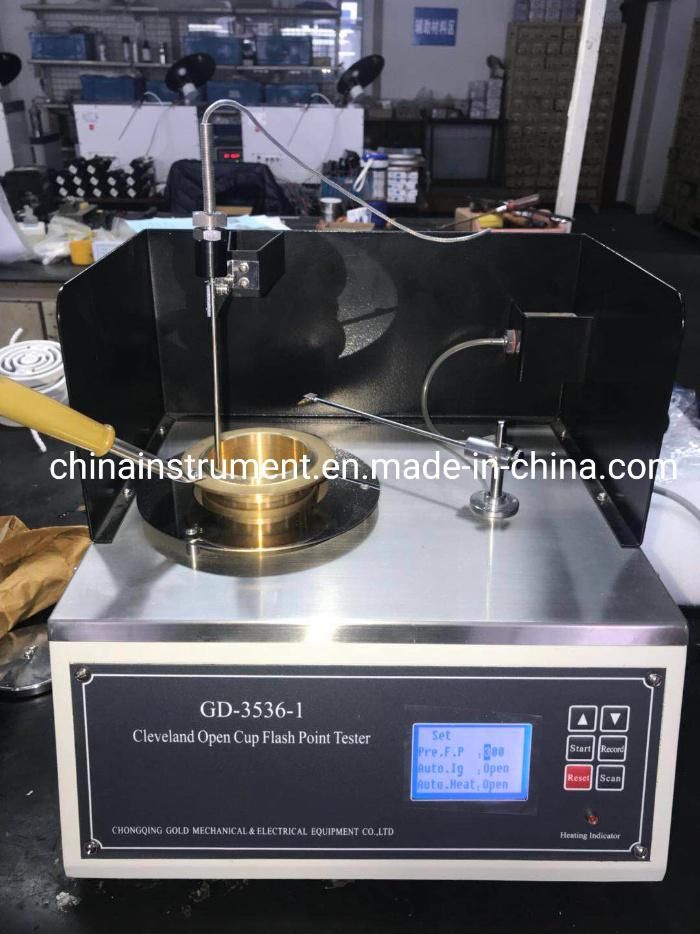

ASTM D92 Cleveland Open Cup Flash Point Tester:
