• Model NO.：GD-H1311
• Power Source：AC220V
• Standards：ASTM D5800, DIN51581, Nft60616, Cecc40A9s
• Applications：Lubricating Oils, Particularly Engine Oils
• Features：Conforms to ASTM D5800, Procedure B
• Temperature Control Mode：Digital Display Pid Temperature Control
• Temperature Control Range：Normal Temperature ~ 250+,-0.5c
• Heating Method：Metal Bath Heating
• Pressure Regulation：High Precision Needle Valve
• Suction Method：Vacuum Pump
• Transport Package：Plywood
• Trademark：GOLD
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-H1311 Power Source AC220V Standards ASTM D5800, DIN51581, Nft60616, Cecc40A9s Applications Lubricating Oils, Particularly Engine Oils Features Conforms to ASTM D5800, Procedure B Temperature Control Mode Digital Display Pid Temperature Control Temperature Control Range Normal Temperature ~ 250+/-0.5c Heating Method Metal Bath Heating Pressure Regulation High Precision Needle Valve Suction Method Vacuum Pump Transport Package Plywood Trademark GOLD Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

Automatic Non-Woods Metal Noack Evaporative Apparatus for lubricating oils and engine oils



Introduction:

The ASTM D5800 Noack Volatility Tester is used to determine the amount of evaporation loss of lubricating oil. The weighed sample was placed in a crucible for heating, and the mass of the evaporation loss of the test sample was measured by heating at a constant temperature and suction pressure by heating for 1 hour, expressed as a percentage loss.

The Noack Evaporative Apparatus is used to determine the evaporation loss of lubricating oils, particularly engine oils. The high temperatures can evaporate oil which may contribute to oil consumption in an engine and can lead to a change in the properties of an oil.



Key Features:


1. The latest technology: replace the Noack A method, the test process does not require Wood Alloy to avoid environmental pollution and personal injury.
2. Control mode: embedded operating system, high-speed microprocessor control, stable and reliable work.
3. Printing method: USB printer interface, RS232 interface.
4. Touch screen: LCD display, convenient touch screen operation.
5. Security: Built-in diagnostic program and various alarm functions.
6. Precision control: built-in large-capacity EPROM, real-time recording of temperature and pressure values at each moment.


Parameters:

1. Applicable standards: ASTM D5800, DIN51581, NFT60616, CECC40A9S, SH/T0059.
2. Temperature control mode: digital display PID temperature control
3. Temperature control range: normal temperature ~ 250 ± 0.5ºC
4. Heating method: metal bath heating
5. Pressure regulation: high precision needle valve
6. Suction method: vacuum pump
7. Metal bath heating device, safe and environmentally friendly
8. Imported inclined tube differential pressure gauge to ensure accurate pressure
9. Equipped with a special vacuum pumping system
10. Digital timer to record the test time

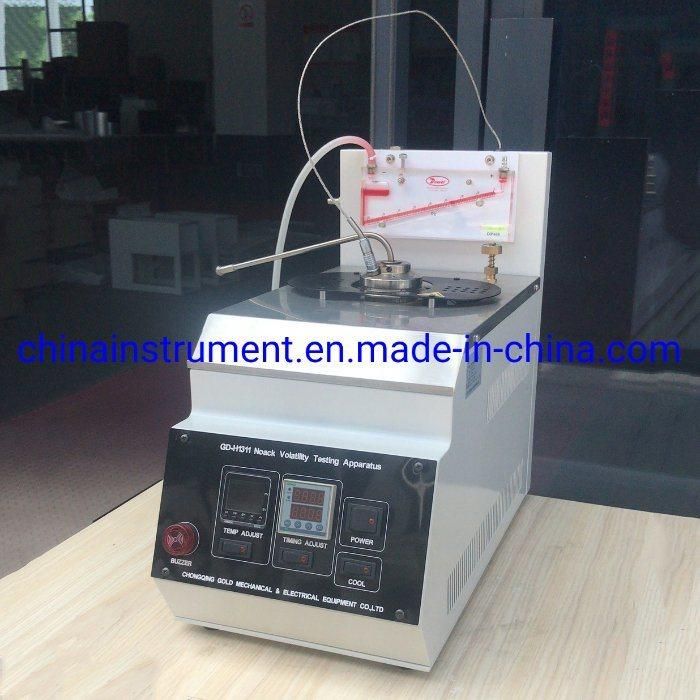

Automatic Non-Woods Metal Noack Evaporative Apparatus:
