• Model NO.：GD2843
• Optical Path：300mm
• Height Distance Above The Base：480mm
• Exhaust Fan：Exhaust The Smoke After Test
• Exhaust Volume：1700 L,Min
• The Smoke Density Measurement Accuracy：+- 3%;
• The Light Absorption Rate：0-100% Can Be Measured Continuously
• Smoke Density Resolution：0.1%
• Stainless Steel：Sample Holder and Sample Templates
• Warranty：12 Months
• Transport Package：Standard Wooden Case
• Trademark：GOLD
• Origin：Chongqing China(Mainland)
• HS Code：9031809090
• Production Capacity：500 Sets, Year

Basic Info.

Model NO. GD2843 Optical Path 300mm Height Distance Above The Base 480mm Exhaust Fan Exhaust The Smoke After Test Exhaust Volume 1700 L/Min The Smoke Density Measurement Accuracy +- 3%; The Light Absorption Rate 0-100% Can Be Measured Continuously Smoke Density Resolution 0.1% Stainless Steel Sample Holder and Sample Templates Warranty 12 Months Transport Package Standard Wooden Case Trademark GOLD Origin Chongqing China(Mainland) HS Code 9031809090 Production Capacity 500 Sets/ Year

Product Description

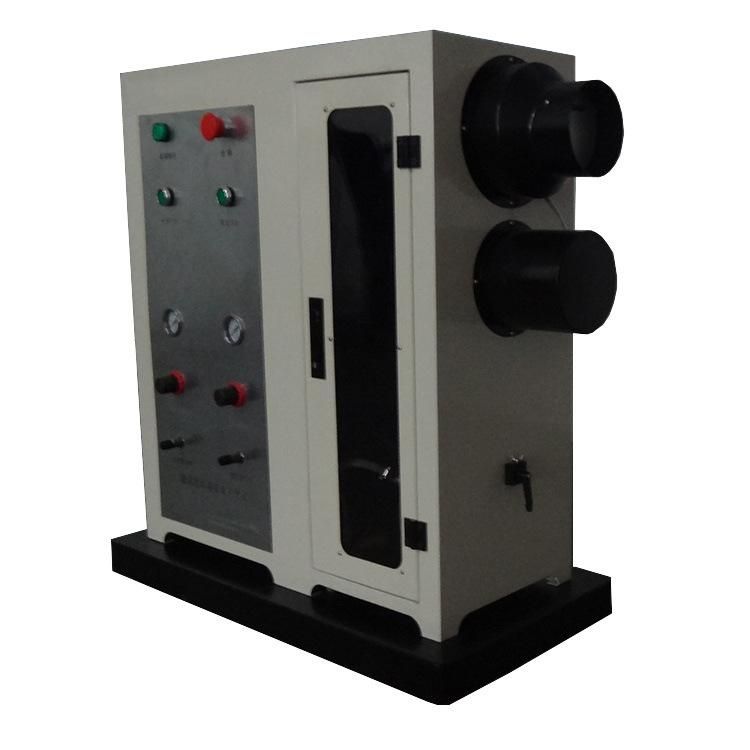

ASTM 2843 Smoke Density Tester for Building Material

Introduction:

 In a fire, people are often smoke suffocated or unable to escape because of the invisible road, so in the prevention of fires, the smoke density of the test material is essential.

Building materials smoke density Tester conforms to the national standard GB/t 8627-2007 specification and requirements, can be used to measure and describe materials, products, components, response to heat and flame under controlled laboratory conditions, measurement of construction materials in combustion or decomposition of the experimental conditions of static yield cigarettes.

Standard :

ASTM D2843 Smoke Density Test

GB/T 8627 Smoke Density Test

Feature:

1, The test chamber is painted, beautiful, durable anti-corrosion;

2, Transparent glass doors for easy observation of the test;

3, Stainless steel sample holder and sample templates;

4, The light absorption rate: 0-100% can be measured continuously. Smoke density resolution 0.1%;

5, The smoke density measurement accuracy: ± 3%;

6, With the main burner and pilot burner.

7, Equipped with exhaust fan, exhaust the smoke after test; exhaust volume 1700L/min;

8, 300mm optical path. 480mm height distance above the base;

9, The optical glass is easy to clean and keep clean translucent glass to avoid soot particles adhered to affect light effect.





Specification:

Control way	Computer
Power	220VAC 3A 50Hz
Weight	50KG
Model	GD11785
