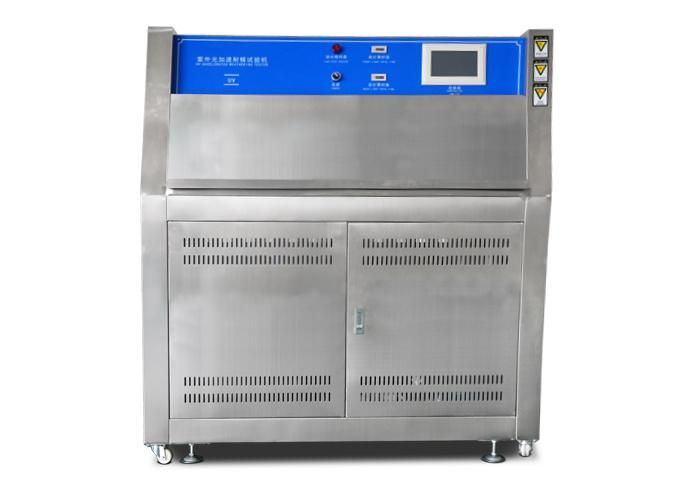

Environmental Test Chamber Programmable UV Weathering Test Machine
Dongguan Haida Equipment Co., Ltd.- Type:Material Testing Machine
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital, LCD
- Control:Computer Control
Base Info
- Model NO.:HD-E802-2
- Weight:100-500Kg
- Power Source:AC220V
- Condensation Temperature Range:40ºC~60ºC
- Light Temperature Range:50ºC~70ºC
- Warranty Period:One Year
- Delivery Time:15 Days After Receive The Deposit
- Studio Size (W×d×h):114cm×40cm×50cm
- Chamber Material:SUS#304 Stainless Steel
- Transport Package:Strong Wooden Case
- Specification:ISO9001: 2008
- Trademark:Haida
- Origin:Dongguan, China
- HS Code:9031809090
- Production Capacity:150 Sets,Month
Description
Basic Info.
Model NO. HD-E802-2 Weight 100-500Kg Power Source AC220V Condensation Temperature Range 40ºC~60ºC Light Temperature Range 50ºC~70ºC Warranty Period One Year Delivery Time 15 Days After Receive The Deposit Studio Size (W×d×h) 114cm×40cm×50cm Chamber Material SUS#304 Stainless Steel Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/MonthProduct Description
Environmental Test Chamber Programmable UV Weathering Test MachineDescription
UV aging test chamber can simulate the damage caused by sunlight, rain and dew to the material, UV use UV (UV) lamp to simulate the effect of sunlight exposure, use cold moisture rain and dew.The tested material is tested in a cycle of alternating light and moisture at a given temperature.With a few days or weeks of testing, UV can reproduce damage that has been seen outdoors for months to years.
Standard Features:
Studio size (W×D×H) | 1140mm×400 mm×500 mm |
Overall size (W×D×H) | 1340mm×530 mm×1400 mm |
Center distance of the lamp | 70mm |
Distance between the specimen and the nearest parallel surface of the lamp surface | about 50mm±2mm |
Wavelength range | UVA wavelength range of 315 to 400nm, the peak at about 340nm |
Radiation intensity | within 1W/m2/340nm |
Temperature resolution | 0.1ºC |
Light temperature range | 50ºC~70ºC / temperature tolerance is ±3ºC |
Condensation temperature range | 40ºC~60ºC / temperature tolerance of ±3ºC |
Measuring range of blackboard thermometer | 30~80ºC / tolerance is ±1ºC |
Temperature control mode | PID self - tuning temperature control mode |
Humidity range | about 45%~70% R.H. |
Water tank requirements | water depth not more than 50mm, and with an automatic water supply controller |
Standard specimen size | 75×150mm 48pcs |
Recommended operating environment | 5~35ºC, 40%~85%R•H, 300mm away from the wall |
Voltage | 220V±5%, single-phase three-wire, 50Hz, 10A, required 15A leakage switch |
Lamp selection | domestic Huaqiang lamp/American Atlecs lamp |
Protection system | Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection |
Applications
- Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.
- To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.
- Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
Meet Specifications
* Meet customer requirements
* Stay ahead of government regulations
Prevent Field Failures
* Improve quality and durability
* Enhance reputation
* Assure product performance
Gain a Competitive Edge
* Save on material costs
* Expand product lines
* Enter new markets
* Outrun the competition
Product Image:
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Customer Feedback
FAQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
