• Model NO.：PN-CT300F
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：300sets,Year

Basic Info.

Model NO. PN-CT300F Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 300sets/Year

Product Description

1. Description:

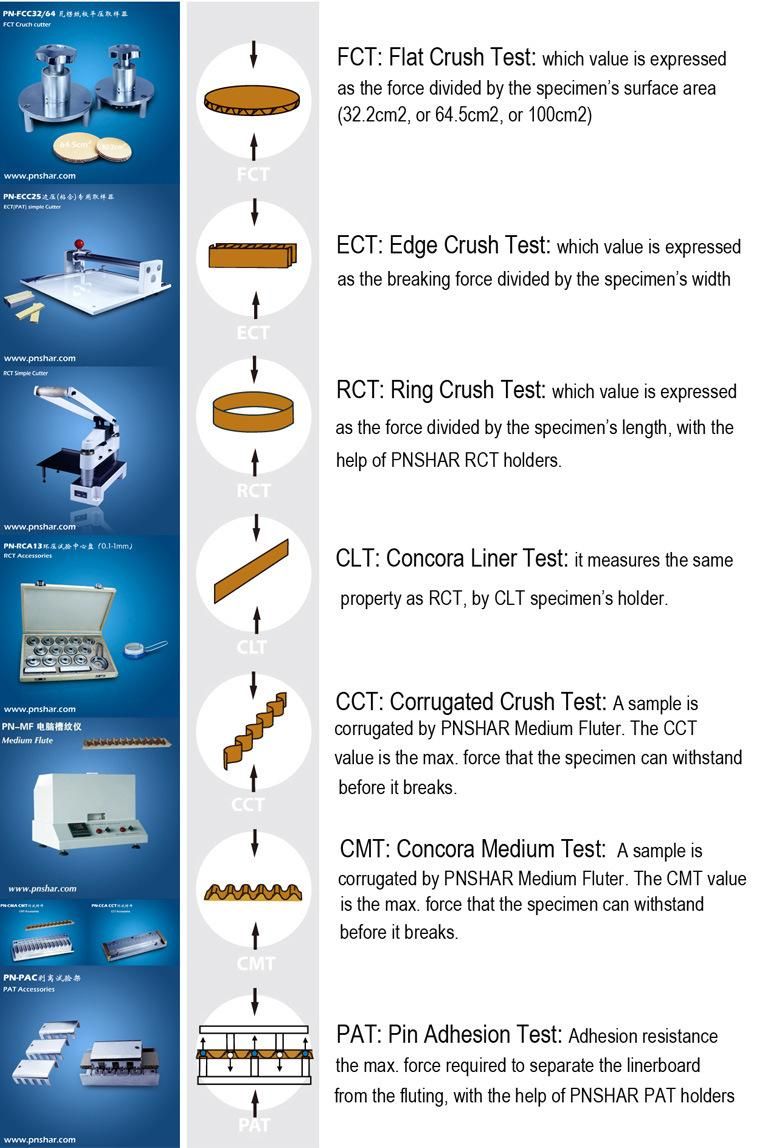

Crush Testing Machine for Lab paperboard Ring Crush Test (RCT),ECT,FCT,PAT,CMT,CCT testing equipment is used for the test of Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test (PAT), Corrugating Medium Test (CMT) an Corrugated Crush Test(CCT).
2. Applications:
Paper, Paperboard, Corrugated cardboard, Corrugated Package.
3. Standards: ISO 3035. ISO 3037. ISO 7263.
4. Specification:

ITEM	SPECIFICATION
Power:	AC100~240V, 2A,50Hz/ 60Hz.
Accuracy:	±1%
Indication varation:	<1%
Resolution:	0.1N
Measuring range:	(5~5000)N
Parallelism:	≤ 0.034mm
Stroke:	(2~70)mm
Test speed:	(12.5 ± 2.5) mm/min(1~30mm/min can be set)
Return speed:	(5~30) mm/min
Display:	7" touch screen display and English menu
Printer:	Thermal printing, high speed and low noise
Data output:	RS232(Standard) / USB(Optional)
Work environment:	Temp.(20±10 )°C relative humidity < 85%
Dimension:	(375×345×505 ) mm(L×W×H)
Net Weight:	About 38.6 kg

5. Features:
1) High speed return after finishing test
2) Imported step motor with servo control adopted
3) The test result can be measured, statistical and printed automatically and the data can be saved.
4) Blue color LCD display, which can be display the crush time and loading force real time, PN-CT300B can display crush graph real time.
5) New PC software able to manage and analyse the data and can communicate with PC. (Only for PN-CT300B type). Thermal printer, high speed and no noise.
