• Model NO.：DH-CB-01
• After-sale Customer Service：Yes
• Transport Package：Standard Exporting Wooden Package
• Specification：445× 425× 555mm
• Trademark：DahoMeter
• Origin：Dongguan, Guangdong
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DH-CB-01 After-sale Customer Service Yes Transport Package Standard Exporting Wooden Package Specification 445× 425× 555mm Trademark DahoMeter Origin Dongguan, Guangdong Production Capacity 300 Sets/Month

Product Description

DH-CB-01  Corrugated Paperboard / Cardboard Bursting Strength Tester

Application



The paperboard bursting resistance tester is a new-generation paper testing instrument developed and produced by our factory.It adopts a method of measurement and control based on an imported single-chip microcomputer as the core, which realizes all digital, computerized and intelligent of detection, controlling and data processing. The technical parameters and performance indicators are in line with the standards and requirements of ISO2758 "Bursting Strength measurement for paper", QB/T "Bursting strength for Paper and Paperboard" and GB454 "Bursting strength measurement method for paper"
With simple operation, reliable performance and advanced technology, the instrument is an ideal and indispensable equipment for research institutes, paper manufacturers, packaging industry and quality inspection departments.


Standards


JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTM-D2210, TAPPI T403, ISO2759, GB/T 1539, GB/T 454, GB/T 465.1, GB/T 6545 GB/T6545 , ISO 2759 , GB1539 , QB/T1057 of "Bursting Strength measurement for Cardboard.,etc.


Features


• Large color touch screen controller
• Equipped with printer. Print the test result immediately.
• Clamping ring material is stainless steel. Durable, fine mechanical property,green product and corrosion resistance are much better than other material.
• The structure is specially designed and high precision of test results.
• The equipment is easy and quick operations.


Main Technical Parameters



Bursting strength range	250~5600kPa
Resolution	1 kPa
Accuracy	±0.5%FS
Pressure speed	170±10ml/min
Specimen clumping force	more than 690kPa
Clamping ring diameter	31.5mm
Power	AC220 V±10%,50Hz 120w
Dimension	445×425×555mm



Packaging & Shipping

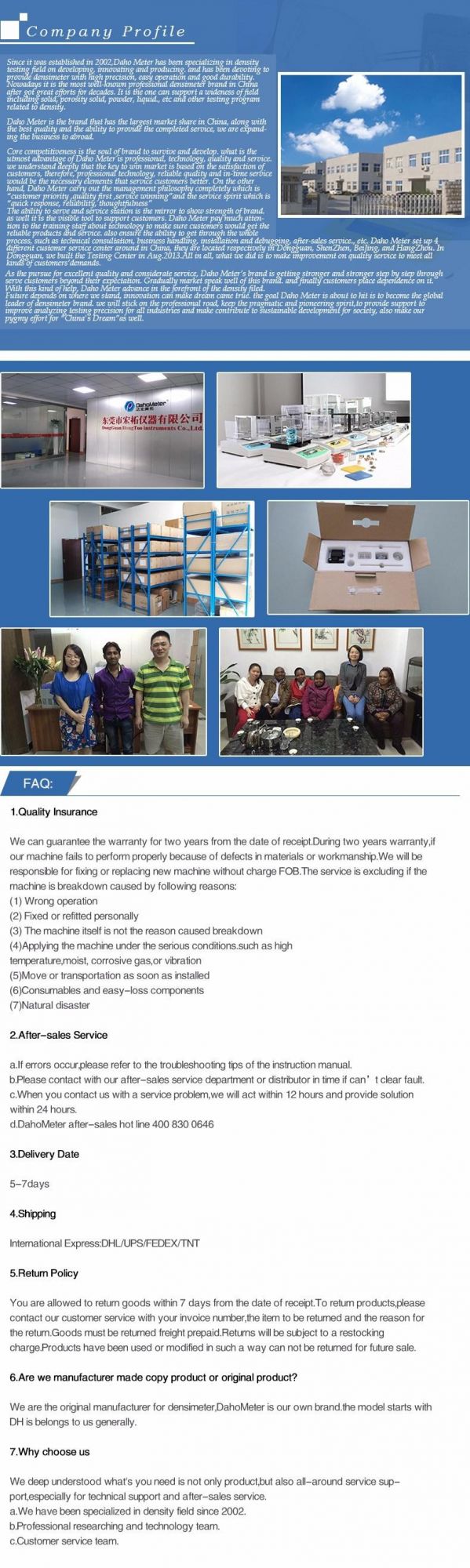

Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
