• Model NO.：PHLD-42
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Product Name：Belt Drive Dynamic Balancing Machine
• Application：Rotor Under 50 Kg Rotation Balancing
• Machine Gross Weight：540 Kg
• Power Supply：380 V, 50 Hz
• Certificate：Ce,ISO,SGS,BV.
• Drive Power：1.5 Kw
• Balancing Speed：1176 Rpm
• Achievable Residual Unbalance：0.5 G.mm,Kg
• Unbalance Reduction Ratio：90%
• Warranty：12 Months
• Transport Package：Dynamic Balancing Machine Fumigated Wooden Case
• Specification：1100 mm * 1100 mm * 1350 mm
• Trademark：JP Balancing Machine
• Origin：Shanghai, China
• HS Code：90311000
• Production Capacity：10 Sets,Month

Product Detail Dimensions1100 mm * 1100 mm * 1350 mmGross weight540 kgPower supply3-phase 380V, 50HZ, or customizationWarranty12 monthsDelivery time20 daysNumber of packages2 pcsProduct KeywordsCentrifugal Pump Dynamic Balancing Machine,Centrifugal Pump Balancing Machine,Centrifugal Pump Balancer Light grey, or sky blue, accept customization

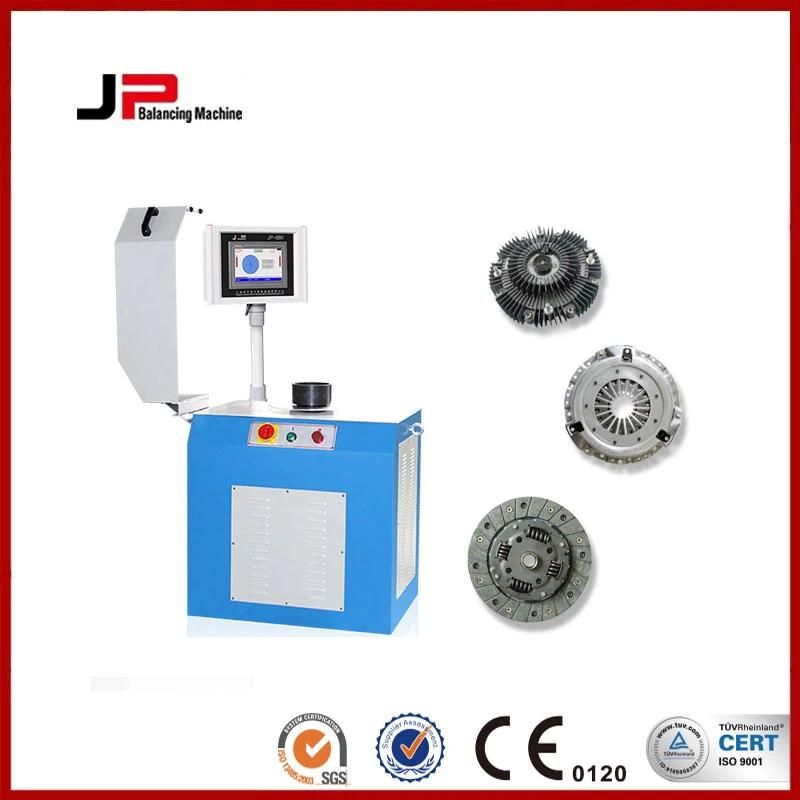

PHLD vertical balancing machine applying range:

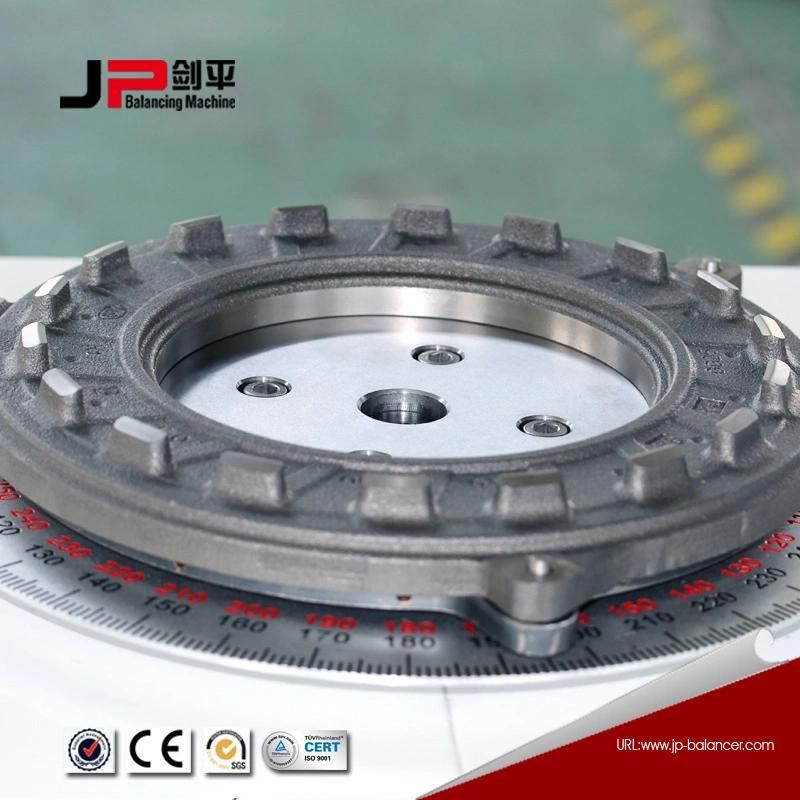

Shanghai JP balancing machine manufacture the Single plane vertical balancing machine for disc rotors, wheel shape, or small fans with up to 200 kg and 1000 mm diameter in a plate. The machine is widely equipped in multiple industries and not only for manufacture, balancing service provider, but also for machinery components repair shop. The machine can be installed pneumatic inflate clamp inside as customer request for rotors' immobilization. The rotor can be welded, milled or drilled without disassembly off the balancing machine. The accessories of vertical balancing machine include the milling machine setting on the table apart for rotor reprocessing. It is ensured that the rotor you take off from the balancing machine would be 100 % prefect.

Main Features of PHLD serials.

1) Simple structure in linear type ,easy in installation and maintain.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automation and intellectualize, no pollution

5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine .

6) Solid and reliable pedestal for lower the damping vibration and rigidity.
7) High agility sensor with precise linearity.
8) One permanent calibration, for the entire using age, increase efficiency. Allow the extremely large initial unbalance amount.
9) Universal joint driving, direct transmit power to rotors.
10) Equipped with JP measuring unit, simplify the operation and enable a valid test consequence.

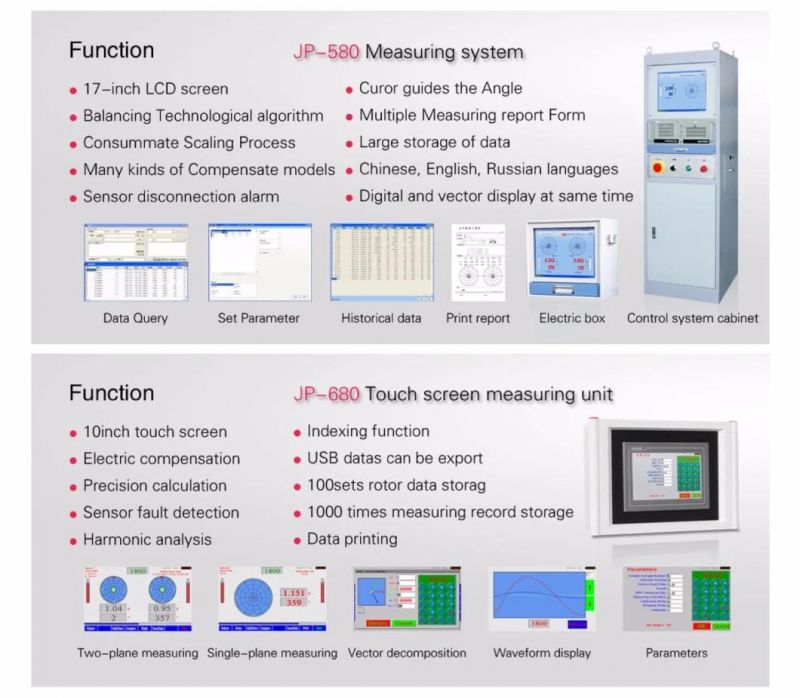

Measuring Unit

Ceritificates
