Automatic Asphalt Wheel-Track Tester / Wheel Rutting Tester / Bituminous Mixtures Wheel Track Test Apparatus

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Auto./Manual：Automatic
  • Displacement Detection Range：(0~30)mm
  • Deformation Detection Range：+0.05mm, Resolution: 0.001mm
  • Temperature Controlling Range：40~80 Centigrade
  • Rubber Hardness of Test Wheel：The National Standard Hardness 78+2(60centigrade)
  • Grounded Pressure of The Test Wheel：0.7MPa+0.05MPa

Base Info

  • Model NO.：GD-0719A
  • Walking Speed of a Dolly：42time,Min+1time,Min
  • Walking Distance of a Dolly：(230+10)mm
  • Wheel-Track Testing Time：(20~600)Min(Do Adjustment at Random)
  • Size：1500*900*1460mm
  • Transport Package：Wooden Case for Gd-0719A
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：100 Sets, Month

Description

Product nameGd-0719A Automatic Asphalt Wheel-Track Tester/Wheel Rutting Tester/Bitumen Wheel Track Sample size300mm×300mm×(30~200)mm (Grinding wheel molding)
 300mm×15mm×50mm(Cutting on site)Working modeRod driveRubber hardness78±2 at 60ºC,international standard.Test wheel movement230mm±10mmGrinding rate (42±1)times/min (21 times of returns/min)Loading device(0.7MPa~1.3 MPa)±0.05Mpa when CPRESS is at 60ºCDisplacement measuring range 0mm~30mmDisplacement measuring accuracy<0.01mmWheel track test time60 minutes~240 minutes. 60 minutes is standardTemperature controle for constant temperature chamberAmbient temp.~80ºC,precision ±0.3ºCDeformation measurementPrecision 0.3%,minimum division 0.005mm.Test temperature 45ºC~85ºC, precision 0.5ºCWorking environmentTemperature 0ºC~50ºC,RH ≤90%Drive motor power0.75kW,1450r/minPower supply  3 phases and four lines. Power 3.5KW,The yellow line is working zero line
 Dimension1510mm×740mm×146mmNet weightAbout 0.5 T



Products Packing:
Automatic Asphalt Wheel-Track Tester / Wheel Rutting Tester / Bituminous Mixtures Wheel Track Test Apparatus

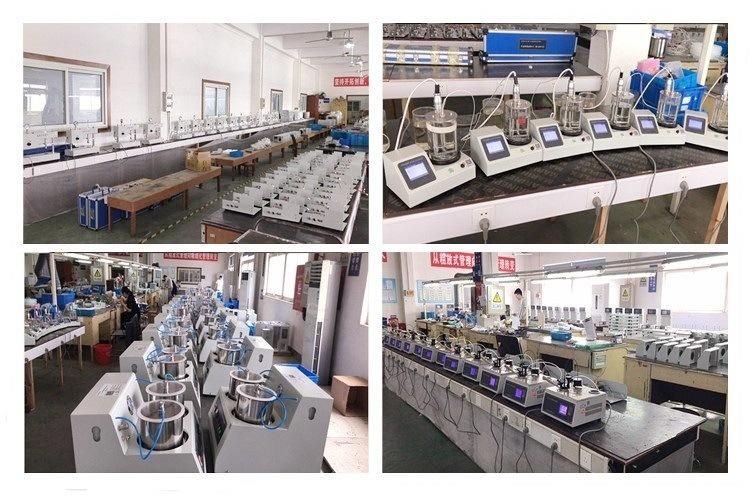

Company  Information:

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .

Automatic Asphalt Wheel-Track Tester / Wheel Rutting Tester / Bituminous Mixtures Wheel Track Test Apparatus
