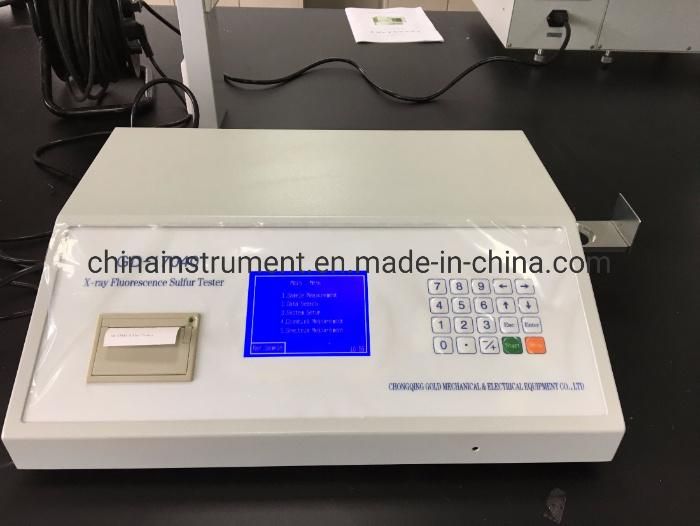

• Model NO.：GD-17040
• Packing Size：Packed in 2 Cases, 59*48*30cm, 52*44*35cm
• Standard：ASTM D4294, GB,T 17040 and GB,T11140
• Samples：Liquid Petroleum Products
• Gross Weight：28kg
• Transport Package：Standard Wooden Case
• Specification：ISO
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100 PCS,Month

1Measuring range: 20 ppm to 5%2Repeatability (r): < 0.02894(X+0.1691)3Reproducibility (R): <0.1215(X+0.5555)4Detection limit: 7 ppm5Oil sample quantity: 2.5 ml (it is equal to sample depth of 4.5 mm)6Measurement time: it can preset 60, 120, 240, 300, and 600 s at random7It can make measurement automatically for single sample. Repeat times: can set 2, 3, 5, 10, and 50 at random; it will show average value and standard deviation at end of measurement.8Calibration curve numbers: it can save 9 calibration curves. 5 pieces of them are unary linear equation and 4 pieces of them are unary quadratic equation.9Working condition:a. Ambient temperature: 5~40°ºCb. Relative humidity: ≤85% (30ºC)10Power supply: AC 220V±20V, 50 Hz; Rated power: 30 W11Dimension and weight: 468mm×368mm×136mm; 13 kg

Standard Configuration:
 No.NameUnitQuantityRemark1Main unitSet1 2Sample cell (three parts)Set200 3Sample cell film (6μm Mylar)Piece200In two boxes4Leakage protection device (two parts)Set1 5Multifunctional pressure shaping device (two parts)Set1 6Dust shield of leakage protection devicePiece1 7Printing paper (57 mm in width; Φ30mm)Roll3 8Quality control samplePiece1 9Power supply wire (250V/6A)Piece1 103 ml PipettePiece200
