400MHz 4 Independent Channels Tfg2900A Series Signal/Function Generator
Shijiazhuang Suin Instruments Co., Ltd.- Warranty:18 Months
- OEM/ODM:Yes
- Frequency:Max 400MHz
- Channels:2,4
- Waveforms:Max 165 Kinds
- Sample Rate:1.2gsa,S
Base Info
- Model NO.:TFG2922A,2924A,2932A,2934A,2942A,2944A
- Vertical Resolution:14 Bits
- Display:LED
- Interface:USB Host, USB Device, LAN and WiFi
- Transport Package:Carton
- Specification:36.3*15.4*46.7cm
- Trademark:SUIN
- Origin:China
- HS Code:854320909
- Production Capacity:30, 000 Sets,Year
Description
TFG2922ATFG2924A TFG2932A TFG2934A TFG2942A TFG2944A CHANNEL 2 4 2 4 2 4 Frequency Sine 1μHz ~ 200MHz 1μHz ~ 300MHz 1μHz ~ 400MHz Square 1μHz ~ 120MHz Pulse 1μHz ~ 80MHz Ramp 1μHz ~ 6MHz Others 1μHz ~ 50MHz Resolution 1μHz Accuracy ±1ppm Waveform Type 165 kinds include:sine, square, ramp, pulse, noise,Arbitrary waveforms and user-defined Sample Rate 1.2GSa/s Vertical Resolution 14bits Arbitrary Saple Rate 1μSa/s~200MSa/s Length 2-32M points Resolution 14bits Square Rise/Fall time ≤2.5ns Duty Cycle 0.01%~99.99% Pulse Rise/Fall Time 2.5ns~1.2s Width 4ns~(1000000s-4ns) Sine Spectral Purity Total Distortion ≤0.2%(20Hz~20kHz,20Vpp) Phase Noise <-140dbc@10mhz(0dbm,10khz offset=""> Amplitude(into 50 Ω) ≤40MHz 1mVpp ~ 10Vpp ≤100MHz 1mVpp ~ 5Vpp ≤200MHz 1mVpp ~ 2Vpp ≤300MHz 1mVpp ~ 1.5Vpp >300MHz 1mVpp ~ 1Vpp Accuracy ±(1% of setting +1mVpp),(Sine 1kHz,0V offset,≥10mVpp) Offset Range ±5Vpk ac+dc(50Ω load) Accuracy ±(1% of setting +2mV+0.5% of amplitude)(High-Z) Modulation Type FM,AM,PM,PWM,Sum,FSK,4FSK,NFSK,PSK,4PSK,NPSK,ASK,OSK Burst Burst Count 1 to 100 000 000 cycles General Characteristics Power AC 100 ~ 240V, 45 ~ 65Hz, <70va(tfg29x2a),<80va(tfg29x4a)<> Dimension & Weight 364×155×329 mm, 7.0 KGs (TFG29X2A) 364×155×468 mm, 10.0KGs(TFG29X4A) Standard Accessories Options Power Cord 1 Frequency Counter(upper limits to 3GHz)
OCXO(accuracy;±0.01ppm±1μHz BNC cable 1 CD(Software+User's Guide) 1 Wifi Antenna 1

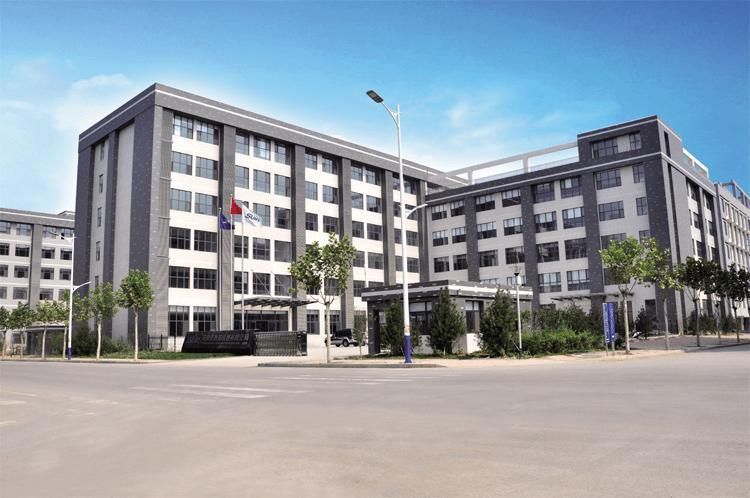

<-140dbc@10mhz(0dbm,10khz offset=""><70va(tfg29x2a),<80va(tfg29x4a)<>Company Introduction
OCXO(accuracy;±0.01ppm±1μHz
