• Model NO.：GW-002
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Electric Control
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-002
• Sensing Method：Pressure Transducers
• Indicating Method：LCD Display
• Capacity：0-100 Kg,Cm
• Dimension：48*53*53 Cm
• N.W：67 Kg
• Power：AC 220V, 50Hz
• Transport Package：Standard Export Safety Packing
• Specification：50kg
• Trademark：Great Win
• Origin：China
• HS Code：9024800000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-002 Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-002 Sensing Method Pressure Transducers Indicating Method LCD Display Capacity 0-100 Kg/Cm Dimension 48*53*53 Cm N.W 67 Kg Power AC 220V, 50Hz Transport Package Standard Export Safety Packing Specification 50kg Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

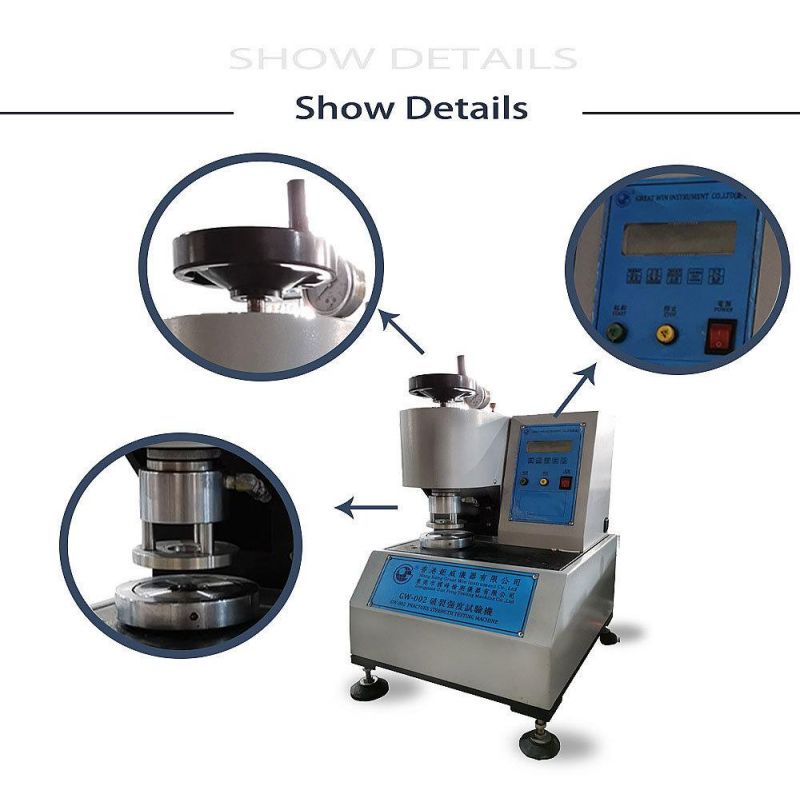

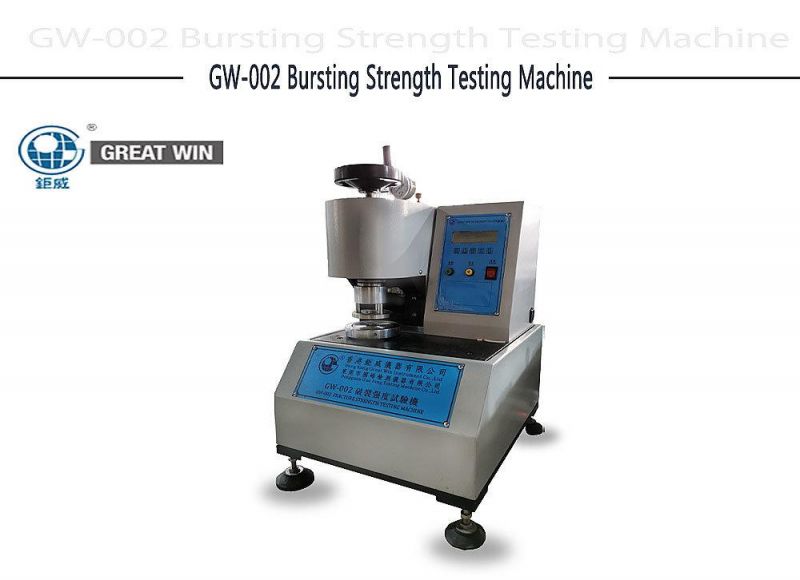

Bursting strength testing machine ( GW-002)

•Brief introduction:
This tester is used to test the bursting-resistance strength of corrugated paper box which are used in packing the products as electronic instruments, electric wire, hardware, bike, valise, food, shoe, furniture,etc, it can be also used to test the cloth and synthetic leather. It is equipped with a pressure cell for detecting output signal. The maximum breaking value can be caught and reserved when to break the specimen. Its resolution is 100 times more than the traditional dial gauge.

•Technical Specifications:

Model	GW-002   Bursting strength testing machine
Sensing method:	pressure transducers
Indicating method:	LCD display
Capacity:	0~100kg/cm
Dimension:	48*53*53cm
N.W.:	67kg
Power:	AC220V,2.6A

•Standard for:

  JIS-P8112,L1018,ASTM-D2210,TAPPI-T403,etc.

•Attached accessories:
1pc spanner
3pcs ruptured membranes
10pcs aluminum films
1 bottle of glycerin
