Great Win Electronic Rubber DIN Abrasion Testing Machine (GW-008)

GREAT WIN INSTRUMENT CO., LTD.
  • Max Diameter of Workpiece：1200mm
  • Mass Scope of Workpiece：<900kg
  • Type：Abrasion Resistance Testing Machine
  • Maxcapacity：DIN Abrasion Resistance Testing Machine
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：GW-008
  • Loading Method：Static Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Electric Control
  • Packaging：Wooden Case
  • Export Markets：Global
  • Model No：Gw-008
  • Roller Length：460mm
  • Load Weight：2.5, 5n
  • Wear Trip：40m
  • Dimension：80*40*35cm
  • Power：AC 220V, 50Hz
  • Transport Package：Standard Export Safety Packing
  • Specification：110*56*62cm
  • Trademark：Great Win
  • Origin：China
  • HS Code：9024800000
  • Production Capacity：500 Pieces,Year

Description

Basic Info.

Model NO. GW-008 Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Electric Control Packaging Wooden Case Export Markets Global Model No Gw-008 Roller Length 460mm Load Weight 2.5, 5n Wear Trip 40m Dimension 80*40*35cm Power AC 220V, 50Hz Transport Package Standard Export Safety Packing Specification 110*56*62cm Trademark Great Win Origin China HS Code 9024800000 Production Capacity 500 Pieces/Year

Product Description

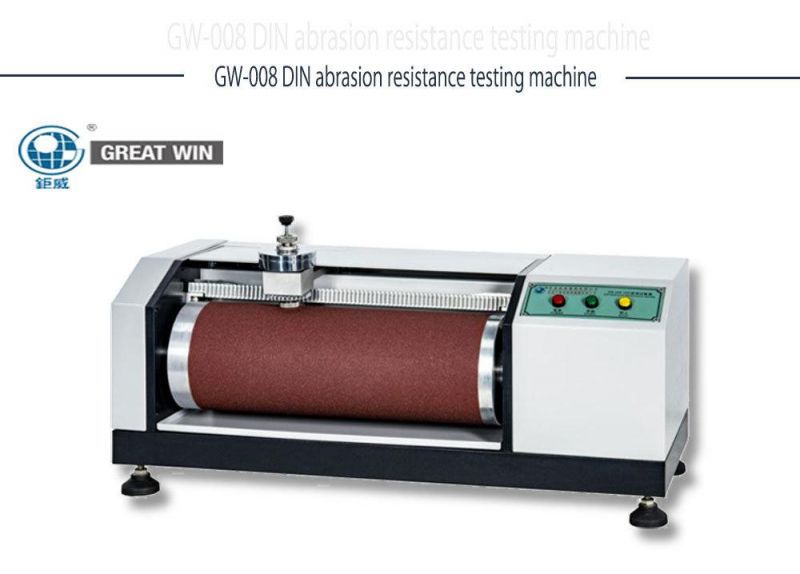

 DIN abrasion resistance testing machine/Rubber testing machine(GW-008)

•Brief introduction:
The determination of the abrasion of elastomers, rubber, soft synthetics, leather and materials is of special importance for the classification of the resistance to abrasive wear. It's with characters of high efficiency good reproducibility and easy operation.

•Technical Specifications:

ModelGW-008 DIN abrasion resistance testing machine
Roller length: 460mm
Load weight:2.5,5N
Sandpaper grits:60#
Wear trip:40m
Dimension:80*40*35cm
N.W.:61kg
Voltage:AC220V


•Standard for :
SATRA TM 174; GB/T20991-2007 8.3 (GB/T9867)ISO EN 20344:2004;DIN53516

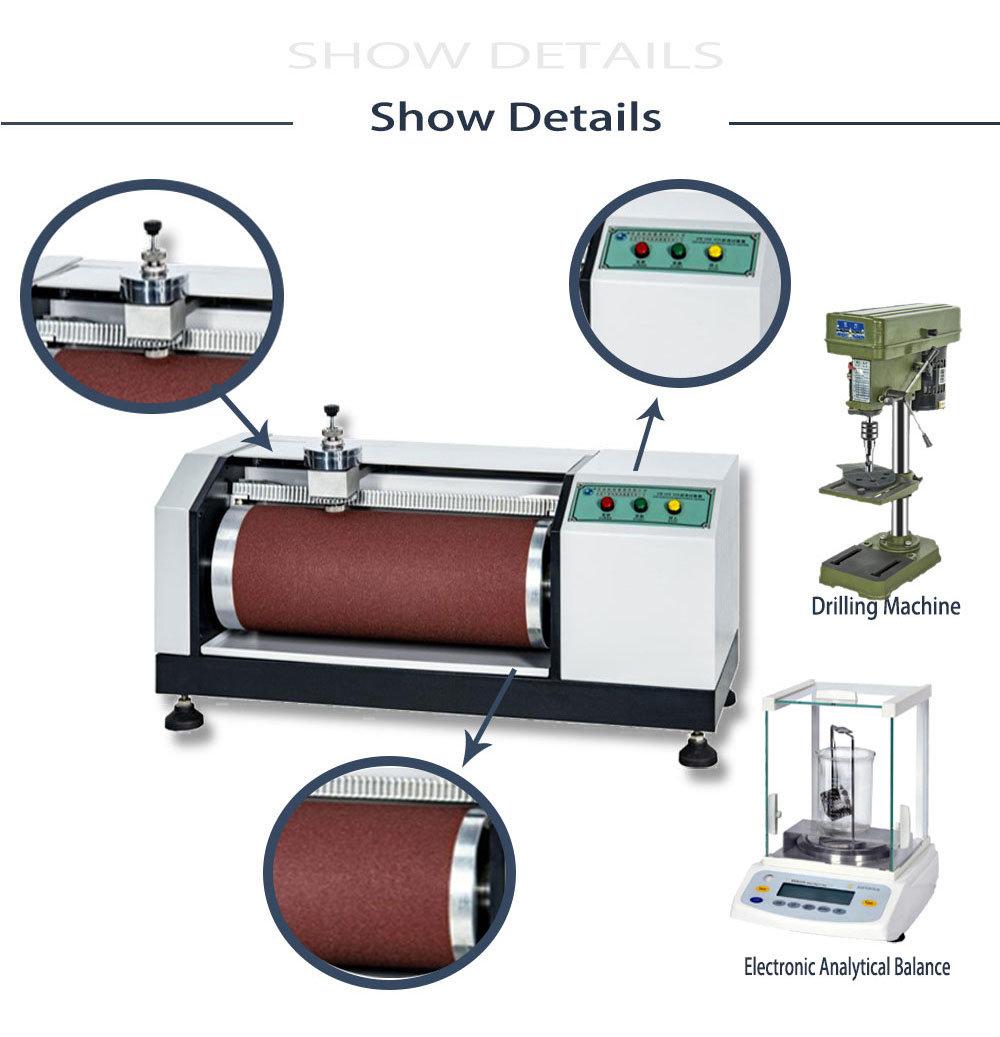

•Attached accessories:
1pc small drilling machine
1pc standard die mould
2pcs standard sandpapers

Do this test need cooperate balance ,customer buy by themself.
