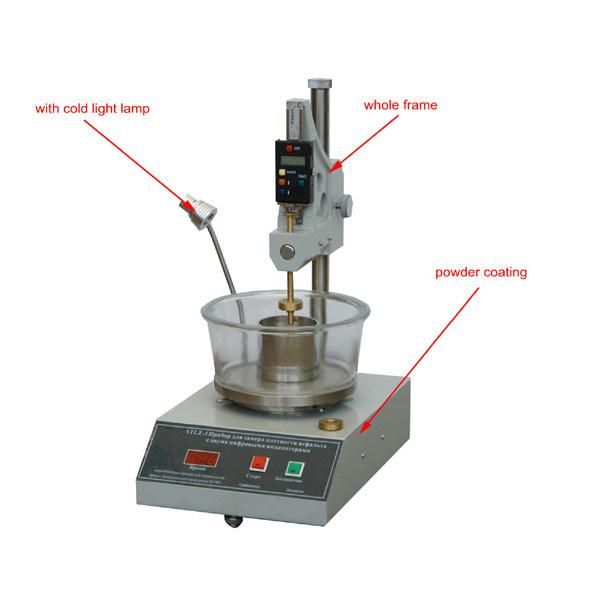

Stlz-1 Automatic Digital Penetrometer
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：<900kg
- Type：Automatic Digital Asphalt Penetrometer
- Maxcapacity：No
Base Info
- Model NO.：STLZ-1
- Accuracy Grade：1
- Load Way：Digital Display
- Loading Method：No
- Display：Digital
- Control：No
- Weight：30
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stlz-1 Automatic Digital Penetrometer
- Complies to：ASTM D5, Aashto T49
- Digital Display of Penetration：Depth and Time Set at Top Front of The Cantilever;
- Penetration Needle：2.5g, Hardened Steel, with Shaftsuitable for The
- Plunger：97.5g
- Specimen Container：55(Dia)X35mm
- Penetration Measuring Resolution：0.01mm
- Max. Penetration Depth：40mm
- Transport Package：Wooden Case
- Specification：34X45X59cm
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STLZ-1 Accuracy Grade 1 Load Way Digital Display Loading Method No Display Digital Control No Weight 30 Power Source AC220V Oil Cylinder Position No Product Name Stlz-1 Automatic Digital Penetrometer Complies to ASTM D5, Aashto T49 Digital Display of Penetration Depth and Time Set at Top Front of The Cantilever; Penetration Needle 2.5g, Hardened Steel, with Shaftsuitable for The Plunger 97.5g Specimen Container 55(Dia)X35mm Penetration Measuring Resolution 0.01mm Max. Penetration Depth 40mm Transport Package Wooden Case Specification 34X45X59cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description
STLZ-1 Automatic digital Penetrometer| Product name | STLZ-1 Automatic digital Penetrometer |
| Complies to | ASTM D5, AASHTO T49 |
| Digital display of penetration depth and time set | at top front of the cantilever |
| Penetration Needle | 2.5g, hardened steel, with shaftsuitable for the plunger |
| Plunger | 97.5g |
| Specimen container | 55(dia)×35mm |
| Penetration measuring resolution | 0.01mm |
| Max. penetration depth | 40mm |
