Product Description

soil automatic dynamic cone penetrometer
Dynamic penetrometer light DPL with pneumatic drive

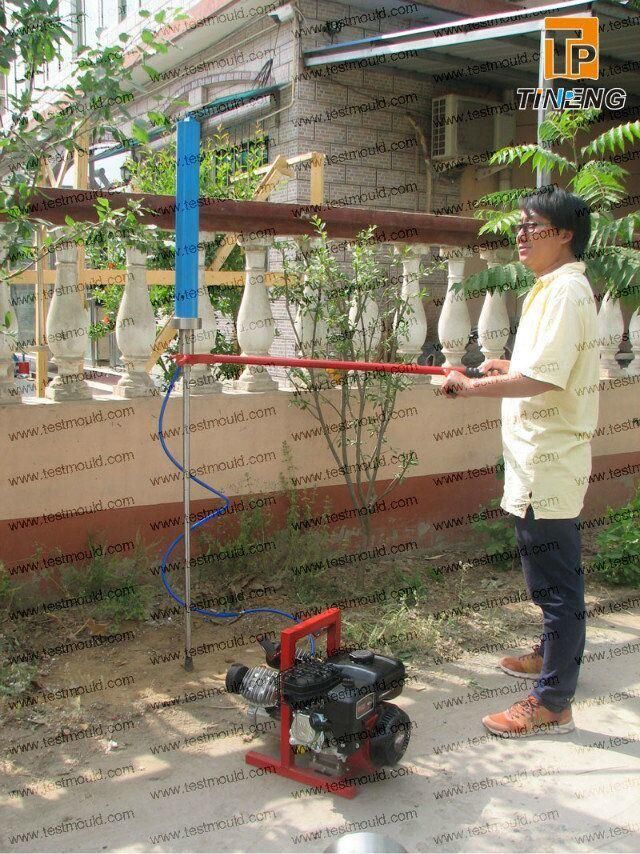

Dynamic penetrometer light DPL with pneumatic drive is most commonly used device for soil compaction testing up to 10 meters depth.

Compact and very light compressor (only 15,6 kg) with a Honda engine is mounted on solid frame. Construction of the device
allows comfortable usage, all accessories are mounted on a special holder and therefore it is very easy to transport on the
site of survey. Number of strokes can be adjusted manually. The ball valve can stop the work of the penetrometer at any time

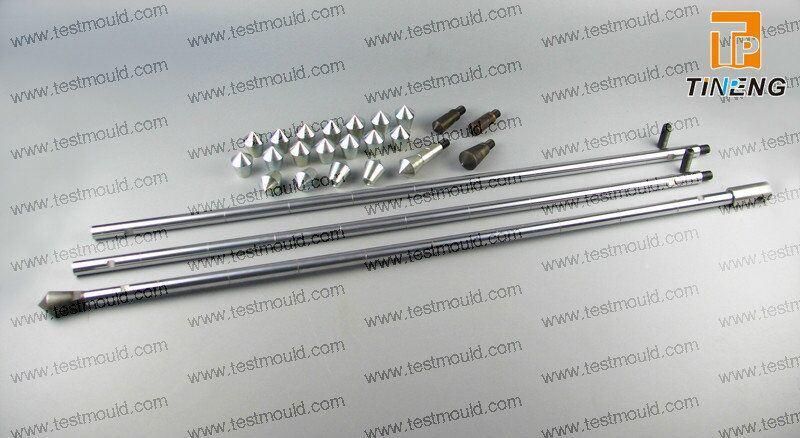

without the need of shutting the compressor down. The penetrometer can be supplied with standard extension rods
(diameter 22 mm, threaded nipple M16) and survey cone.

Specifications

 SPECIFICATION OF THE PENETROMETER:

Weight of the drop-weight: 10 kg
Total weight: 16 kg
Drop height: 50 cm
The chrome guide
Flexible number of blows
(max 50 blows per min)
Plug for the compressor

SPECIFICATION OF THE COMPRESSOR:
Honda 4-cylinder diesel engine
Rotary compressor
Regulated pressure
Frame on the rubber brackets
Total weight: 15,6 kg
Dimensions (L / W / H):
45 cm x 31,5 cm x 47 cm
Noise level: 94 dB(A) at 7m

Packaging & Shipping

ACCESORIES INCLUDED:
Connecting hose for the compressor,
2 m length with the coupler
Bolts for the head
Bracket swiveling for the head
Threaded nipple for the rods M16
Transport tube for the probe
Special oil for the probe guide
lubrication
