• Model NO.：CXJJ-50A
• Accuracy Grade：1
• Load Way：Mechanical Load
• Loading Method：Static Load
• Display：Dial Showing
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Without
• Function：Plastic Material Testing
• Control Way：LCD Digital Panel
• Impact Energy：Charpy Test: 7.5j,15j,25j,50j
• Speed：3.8m,S
• Angle of Pendulum：150 Degree
• N.W：120kgs
• Transport Package：Ocean Shipping
• Specification：650*440*900mm
• Trademark：Chenji or OEM
• Origin：China Jinan or Others

Basic Info.

Model NO. CXJJ-50A Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Dial Showing Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Without Function Plastic Material Testing Control Way LCD Digital Panel Impact Energy Charpy Test: 7.5j/15j/25j/50j Speed 3.8m/S Angle of Pendulum 150 Degree N.W 120kgs Transport Package Ocean Shipping Specification 650*440*900mm Trademark Chenji or OEM Origin China Jinan or Others

Product Description

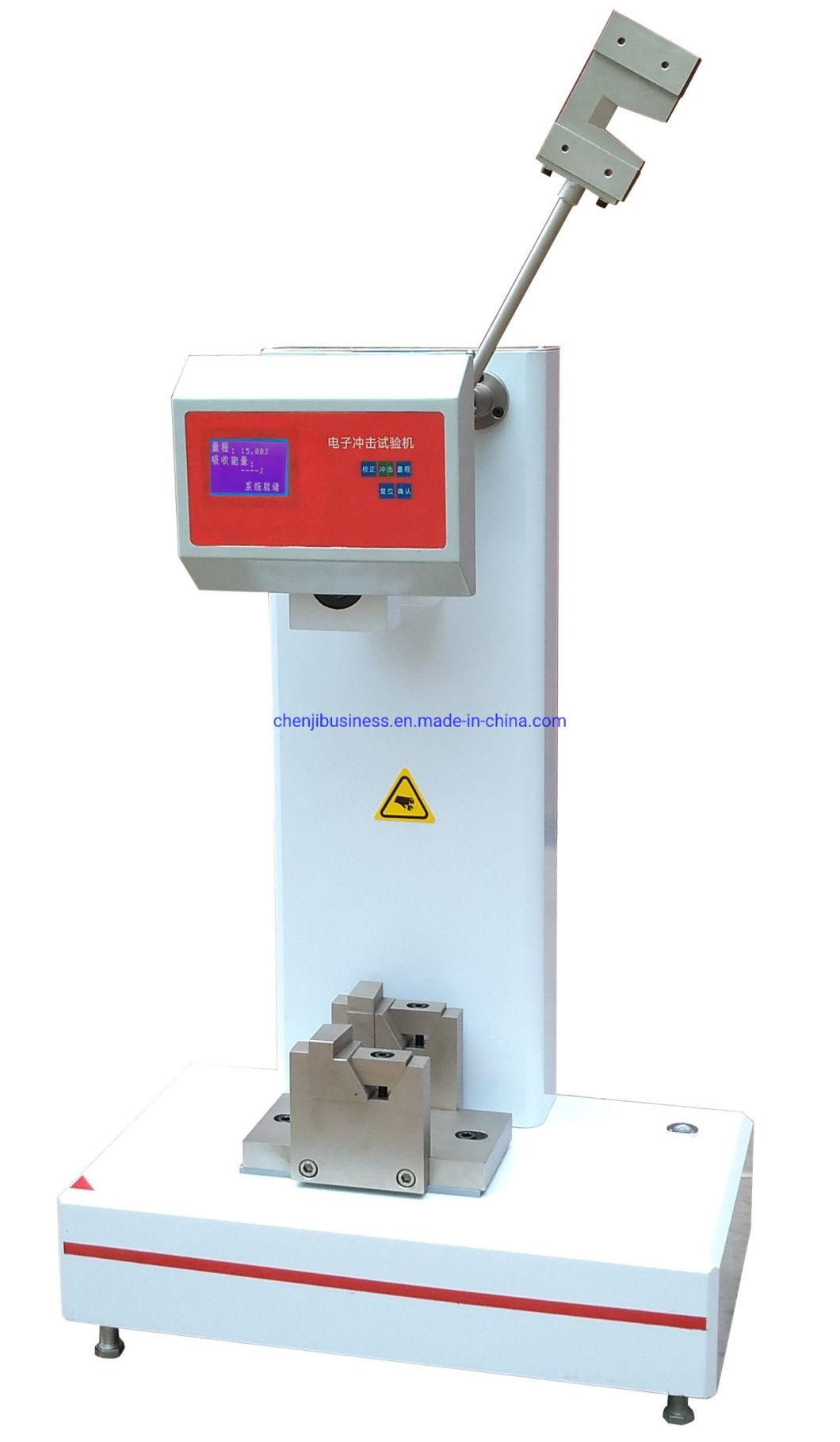

CXJJ-50A Digital Display Control Electronic typle Charpy Impact Testing Machine for Plastic Specimen
Detailed Product Description1. Digital display 2.Impact speed:Charpy Test :3.8m/s
3.Easy to operate
4.High quality and precision
5.Good after service
Characteristics
Digital type adopts the radial grating goniometry technology. With the characteristics of the precision high, stability good and measuring range big. Digital keys setting parameters and shows the test result. The impact power, angle in advanced,  calculate the energy lost self-correcting.
1. Functions
The instrument is mainly used for the determination of impact toughness of the nonmetal materials including rigid plastic, reinforced nylon, glass steel, ceramics, cast stone, electric insulating materials and so on. It is the ideal testing devices for the departments including the chemical industry, research institutes, universities, quality inspection and so on.
2. standards-compliant
Accord with the ISO179,GB/T1043,ASTM E23 DIN51222 ASTM D6110 standards' demands.
 3. Technological indicators

item	parameter
Model	CXJJ-50A
Controlled manner	Digital
Impact energy	Charpy test: 7.5J/15J/25J/50J (choose one)
Speed of impact	Charpy test:3.8m/s
Pre-elevation angle of pendulum	150 degree
Packing Dimension	650*440*900mm
Gross Weight	120kg
