PV Solar Module Mechanical Load Tester Testing Machine Equipment for IEC61215-2: 2016

Dongguan Hong Tu Instrument Co., Ltd.
  • Max Diameter of Workpiece：>3200mm
  • Mass Scope of Workpiece：<900kg
  • Type：Mechanical Load Tester
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5
  • Load Way：Mechanical Load

Base Info

  • Model NO.：HTPV-08
  • Loading Method：Static Load
  • Display：Computer
  • Control：Computer Control
  • Weight：1000-2000Kg
  • Power Source：AC220V
  • Product Name：PV Solar Module Mechanical Load Tester
  • Testing Standard：IEC61215-2:2016 Testing Standard
  • The Maximum Positive Pressure：+10000 PA
  • The Maximum Reverse Pressure：-6000 PA
  • Control Ways：Computer Control
  • Electricity：220V 50Hz
  • Cyliner：8 PCS
  • Cylinder Stroke：125mm
  • Sucker：32 PCS
  • Sucker Diameter：120mm
  • Transport Package：Export Wooden Case Package
  • Specification：Conform IEC61215-2: 2016
  • Trademark：HOTOTECH
  • Origin：China
  • HS Code：9013809000
  • Production Capacity：100 Sets Per Month

Description

AdvantageDynamic & static integration,It's can satisfy the Dynamic load testing, and also satisfy the Static load testing        The Static load mode
 The positive load can realize +10000 Pa, the reverse load can realize -6000 PaDynamic load mode
 Dynamic load:1000 Pa, 1000 times, the dynamic load frequency:7s±3sCycle timesFree SettingPressure control accurate5%Display function Real-time display the solar panel's deformation, and drawing the force curve and pressure

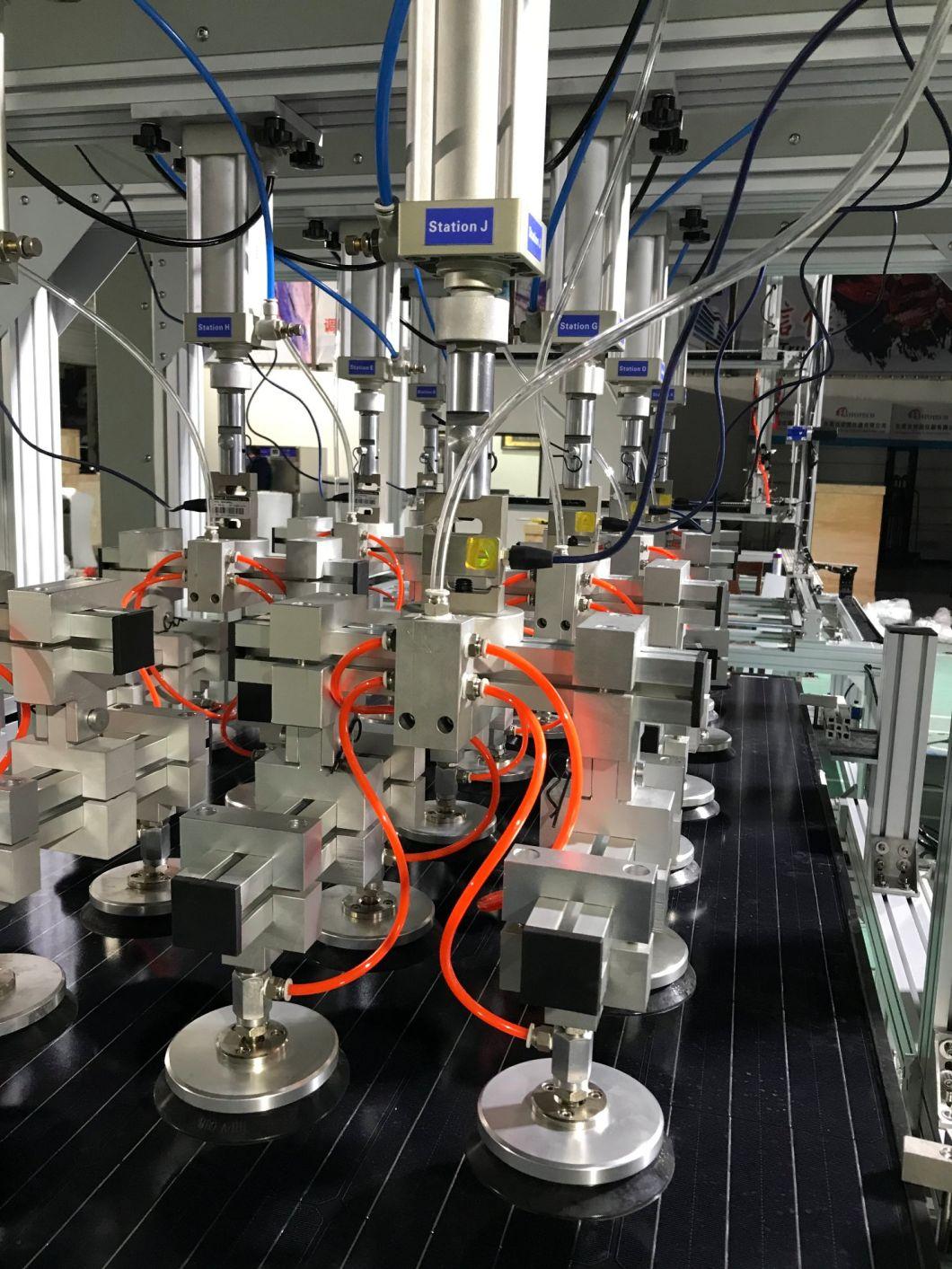

Curve Monitor dataThe Testing machine's raw materialAluminum profile structure  (firm and Antirust)Testing Sample size2000mm×1000mm (customized and adjustable)Pneumatic and force value feedback wayslow friction force cylinder, tensile pressure
Sensor ( the accurate:0.1N)The cylinder8 pcsThe telescopic stroke125mmThe Sucker32 pcsThe sucker diameter 120mmControl waysComputer control Electricity 220V 50HZ


Software Operate System Feature
 1.Computer operate and control software by HOTOTECH researched and development,easy operate and test data stable2.The software support Chinese and English , with the Switching function3.Software real-time display pressure, deformation , testing time, cycle times and current electricity continuity4.Software real-time drawing pressure and deformation curve 5.Software real-time display each cylinder's force value and drawing the force value curve
6.Testing data real-time storage , query & print
7.The Testing data can export Word, Excel, PDF,JPG format8.The software with the fault warning function


Testing Machines figures display

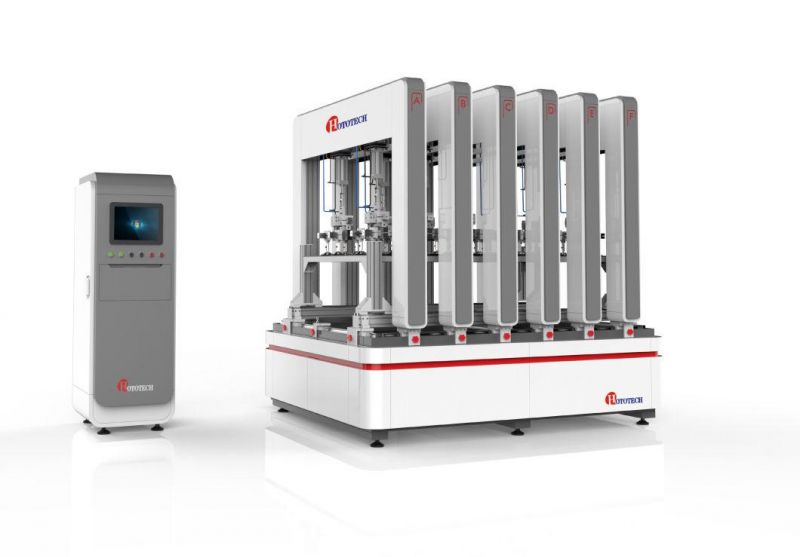

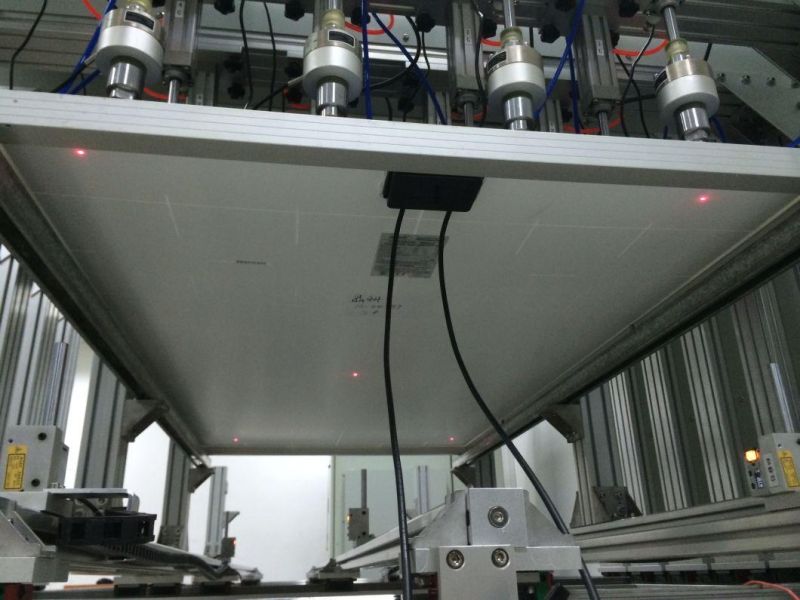

PV Solar Module Mechanical Load Tester Testing Machine Equipment for IEC61215-2: 2016
