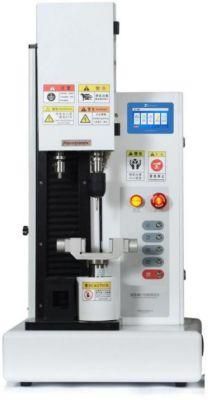

| Parameter | Technical | | Measure range | 500N(or custom) |
| Measurement accuracy | Better than±0.5% |
| Measurement resolution | 1/250000(0.01N) |
| Effective measurement range | 0.5-100%F.S |
| Unit conversion | N,kN,kgf,gf,lbf |
| Indication accuracy | Indication error±1%,indication volatility≤1% |
| Positional accuracy | ≤0.01mm |
| Transmission way | High precision ball screw drive |
| Test speed | 1~500mm/min(adjustable) |
| Effective travel of beam | 1000mm |
| Effective travel between fixtures | 650mm |
| Return rate | 1~500mm/min(adjustable) |
| Measurement range | 120mm |
| Display system | PC display |
| Print function | Need connect printer to export test report in Word format, including: serial number, peak value, curve, average value, can be remembered. Etc. |
| | Measurement and control software | Support Windows7,Windows10 |
| | Fixture | One set of 180° stripping fixture |
| | Measure steel plate | Mirror 304 stainless steel plate, roughness:50nm±25nm
L150mm*W50mm*T2.0mm |
| | Power system | Stepper motor + matching stepper driver |
| | Sensor | suncells |
| | Working power supply | AC220V50H |
| | Machine weight | About 90kg |
| | Machine dimension | L480×W560×H1250mm |
| | Spare part | testing software*1. data line*1.hand-operated box*1 |
| | Optional | Computer, printer |
