ASTM F2096 Medical Device Packaging Integrity Gross Leak Detection Bubble Test Machine by Internal Pressurization
Pubtester Instruments Co., Ltd.- Test Sample：Medical Device Packaging
- Pressure Method：Positive Pressure
- Test Range：0~600kpa; 0~87psi
- Gas Supply Pressure：0.4MPa~0.7MPa
- No. of Load Cell：2 (Free Selection)
- Transport Package：Veneer Case
Base Info
- Model NO.：LSST-02
- Trademark：Pubtester
- Origin：Jinan, Shandong
- Production Capacity：10 Sets,Quarter
Description
Extended ApplicationHigh-pressure Test The maximum pressure applied can be 1.6MPa Pilfer-proof Closure Seal performance tests of various pilfer-proof closures Three-sided Sealing Materials Tests of packaging bags with three-sided seal and one-sided open Compression Resistance of Medical Blister Pack Tests of various blister packs Soft Tubes Tests of various soft tubes for daily chemical products including toothpaste, facial cleaner, cosmetics as well as medical creams and some food products Aerosol Valves Tests of various aerosol valves, e.g. vales of pesticide, hair spray, auto spray paint and medical spray packages
Technical Specifications
Standards
ASTM F2096, ASTM F2054, ASTM F1140, ISO 11607-1, ISO 11607-2, GB 18454, GB 19741, GB 10440, GB 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00162002, YBB 00252005
Configuration

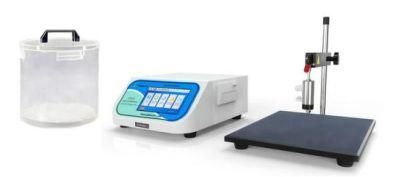

Standard configuration: Instrument, dual load cell, Test Frame, Micro-printer, Gross leak test fixture
Optional Configuration: Professional software, Communication cable, Test Accessories (Fixtures for Closed Package Restraining Test, Open Package Unrestrained Test, Fixture for Plastic Pilfer-proof Closure Test, Flexible Tube Test and Aerosol Vale Seal Performance and Test Device for Blister Pack Seal Performance).
Note: 1. The gas supply port of the instrument is Φ8 mm PU Tubing;
2. Customers will need to prepare for gas supply.
FAQ
Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.
Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
Technical Specifications
| Specifications | LSST-02 |
| Test Range | 0~600kPa; 0~87psi (Standard) 0-10kpa;0-1.45psi(Standard) 0~1.6 MPa;0~232.1 psi (Optional) |
| Gas Injection Head Dimension | Φ10mm (Standard), Φ4mm, Φ1.6mm (Optional) |
| Gas Supply Pressure | 0.4MPa~0.7MPa(Not in supply scope) |
| Port Size | Φ8mm PU tubing |
| No. of Load Cell | 2 (Free selection) |
| Instrument Dimension | 310mm(L)×370mm(W)×150mm(H) |
| Pedestal Size | 305mm(L)×356mm(W)×325mm(H) |
| Power Supply | AC 220V 50Hz/110V 60Hz |
| Net Weight | 25kg |
Standards
ASTM F2096, ASTM F2054, ASTM F1140, ISO 11607-1, ISO 11607-2, GB 18454, GB 19741, GB 10440, GB 17447, GB/T 17876, GB/T 10004, GB/T 10005, BB/T 0003, BB/T 0025, QB/T 1871, YBB 00162002, YBB 00252005
Configuration
Standard configuration: Instrument, dual load cell, Test Frame, Micro-printer, Gross leak test fixture
Optional Configuration: Professional software, Communication cable, Test Accessories (Fixtures for Closed Package Restraining Test, Open Package Unrestrained Test, Fixture for Plastic Pilfer-proof Closure Test, Flexible Tube Test and Aerosol Vale Seal Performance and Test Device for Blister Pack Seal Performance).
Note: 1. The gas supply port of the instrument is Φ8 mm PU Tubing;
2. Customers will need to prepare for gas supply.
