• Model NO.：WDW-5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Name：Strength Testing Machine
• Tensile Fixture：Manual Wedge Clamp Fixture
• Max. Load：5kn
• Structure：Single Column
• Load Accuracy：Class 1
• Load Range：1%-100%
• Trademark：CHENJI or OEM
• Origin：China Jinan or Others
• Production Capacity：100 PCS , Month

Basic Info.

Model NO. WDW-5 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Name Strength Testing Machine Tensile Fixture Manual Wedge Clamp Fixture Max. Load 5kn Structure Single Column Load Accuracy Class 1 Load Range 1%-100% Trademark CHENJI or OEM Origin China Jinan or Others Production Capacity 100 PCS / Month

Product Description

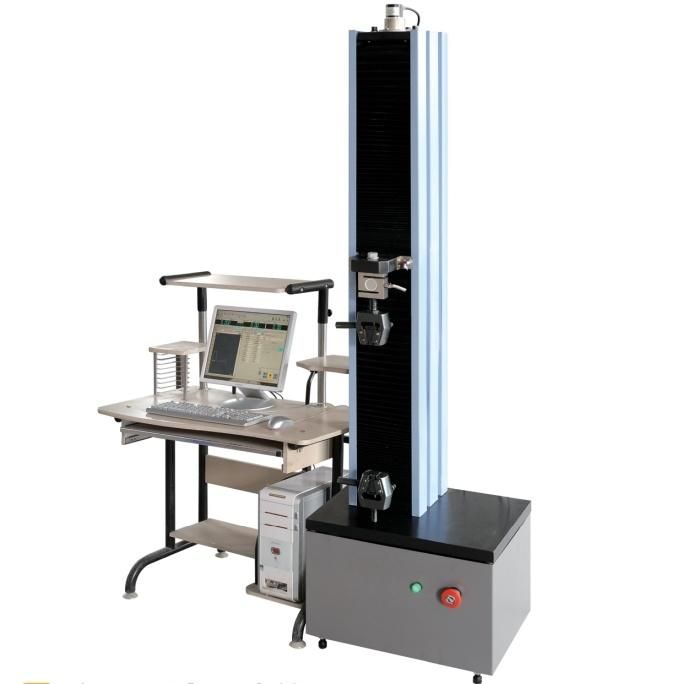

WDW-5 5KN Single Column Universal Testing Machine
With Convenient Operation



1. Actual Appliance Electronic universal testing machine series adopts international advanced machine control technology, providing customers with high end product testing machine. Designed to let the operator feel comfortable, convenient, accurate test process.Products are mainly used for metal, nonmetal, composite materials and products of tensile, compression, bending, shear, tearing, circulation methods such as mechanical property test, at the same time, according to GB, ISO, JIS, ASTM, DIN various standards to provide users with a variety of test plan and test data processing method. Widely used in aerospace, machinery manufacturing, wire and cable, rubber plastic, textile, building materials, home appliances and other industries of material inspection analysis.
2. Functional and FeaturesThis machine adopts ac servo motor and drive, driven by gear system with precision ball screw pair, fully digital controller as the core control system, control software based on Windows operating system and data processing system.Adopt international advanced machine control technology, realize the uniform deformation, displacement and force control test.Brand computer, analysis and display (metal material test packets with Windows electronic universal testing machine dedicated software, according to the national standard or customer provide the standard measure the performance parameters of material, to statistics and processing of experimental data, the output to print all kinds of requirements of test curve and test report: alternative stress strain, load one strain, load , load between the displacement and deformation displacement time, place and other kinds of test curve display, amplification, comparison, and the test process of monitoring, intelligent and convenient.Testing process of high automation and configuration dozens of different fixture can meet your test requirements of various materials.

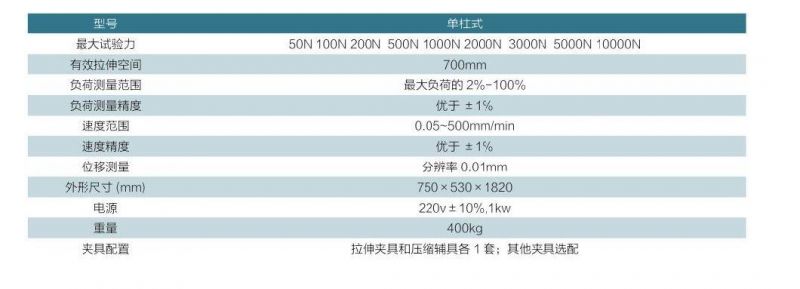

3. Technical Data


4. Widely Used for rubber /plastic material / steel bar/steel Rebar etc... By brand as the measuring system by computer host, complete set of machine test, the working state control, data acquisition, processing, display the print test results, and other functions; Equipped with testing machine for Chinese intelligent test package, according to national standards, international standards, or provide the standard method of measurement of various materials, the mechanical property parameters of bin to statistics and data processing; Then the output of various format required reports and curve pattern.

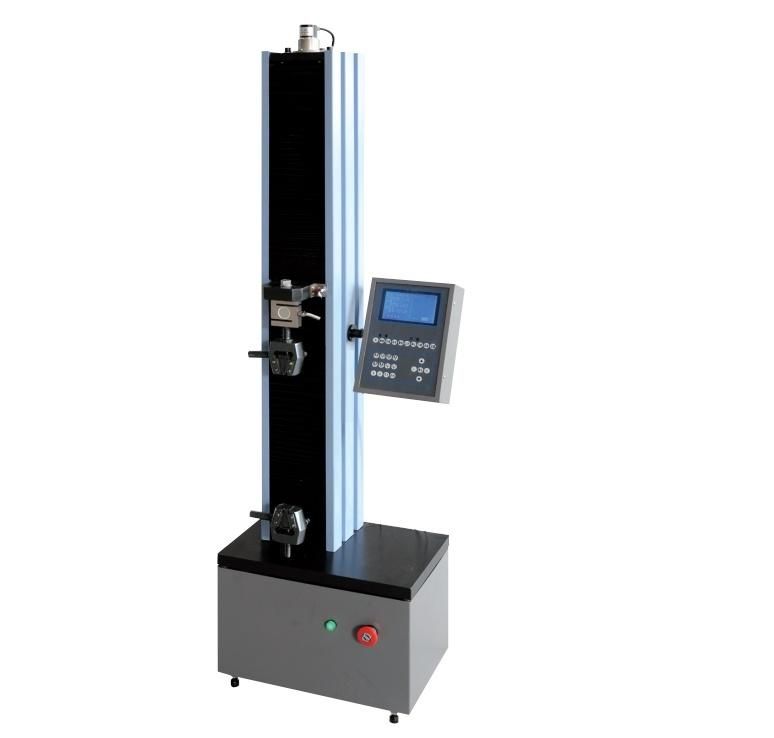

Also there are LCD panel control type:
