• Model NO.：HJ-68
• Loading Method：Static Load
• Display：Digital
• Weight：0-100Kg
• Power Source：AC220V
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-68 Loading Method Static Load Display Digital Weight 0-100Kg Power Source AC220V Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Product description:

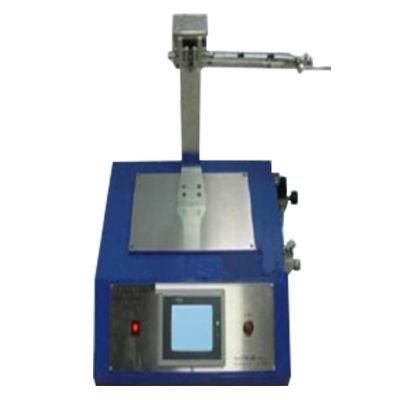

This machine is used to test electronic atomizers and e-liquids. It adopts cylinder-piston inhalation, and determines whether the electronic atomizer is qualified by setting the corresponding smoking duration, smoking volume and smoking times.


Station	1 station
Inhalation method	Cylinder piston type (with 1 cylinder)
Smoking volume	1-100ml (accuracy range ±1%)
Duration	1-9.9 Seconds (can be set)
Every mouth interval	1-999 Seconds (can be set)
Number of puffs	1-99999 ports (can be set)
Power	Stepper motor (type 60, 1.8N/M)+PLC
Cylinder push-pull mechanism	Ball screw rod
Touch screen counter	The number of ports can be set, and the test will automatically stop when the set number of times is reached
Key Function	Independently control the electronic atomizer switch button (with a fixing clamp similar to the one shown in the  figure, which can fix various types of electronic atomizers)
Display and control	Touch screen+PLC+self-programming
Power supply	AC220V, 50Hz, about 220w
Testable items	Smoke concentration detection function
Dimensions	400*500*680mm (length*width*height)

  FAQ    1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,we can send you new spare parts or provide on-site repair.

2..What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
