• Model NO.：CY-RF300
• Origin：Zhengzhou, China
• Production Capacity：5000pieces,Month

Basic Info.

Model NO. CY-RF300 Origin Zhengzhou, China Production Capacity 5000pieces/Month

Product Description

Description:
For low power, carrier applications, CY Series RF power supply compact, lightweight, with air-cooled design. RF power and manual matching device integrated into one machine. High quality components and fewer parts allow you to optimize reliability and product lifecycle to maximize your investment and process productivity. An intuitive and fast operator menu (switchable on the component's versatile front panel and displayed on a 128 x 64 pixel LCD) offers unparalleled convenience - with a wide selection of frequency segments ( 2M, 4M, 13.56M, 27.12M, 40.68 MHz)
Technical Parameters:

Power range	0~300W
Working voltage	AC 220V
Matching mode	auto
Power stability	≤2w
Max reflected power	30W
Harmonic component	≤ -50dBc
Power matching protection setting	DC over-current protection, over-temperature protection, reflection power protection,matching time protection
Control mode	Internal control / PLC analog / PC communication
Machine efficiency	≥70%
Cooling type	Forced air cooling
Dimension (H*W*D mm)	483*400*132
Work frequency	13.56Mhz
RF output connector	UHF male
Transmission efficiency	>90%
Reflected power (matching)	<2W
Matching time	3~5S
Real part range of matching impedance	0~88Ω,can be adjust according to load
Imaginary part range of matching impedance	-j200~+j200,can be adjust according to load
Matching network	L type and T type can be switchable
Net weight	15kg

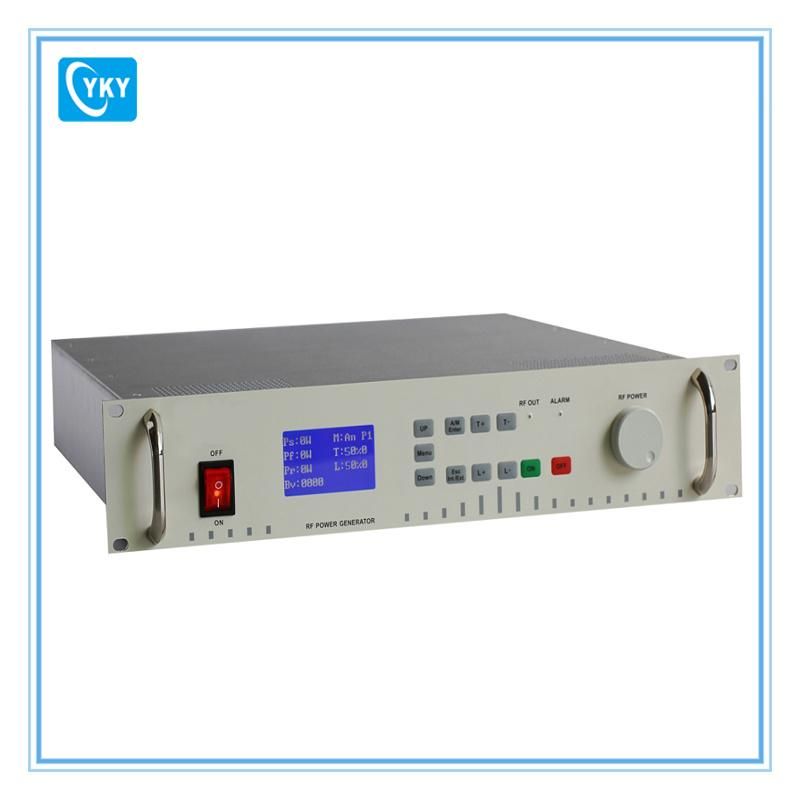

Picture of CY-RF300 generator:

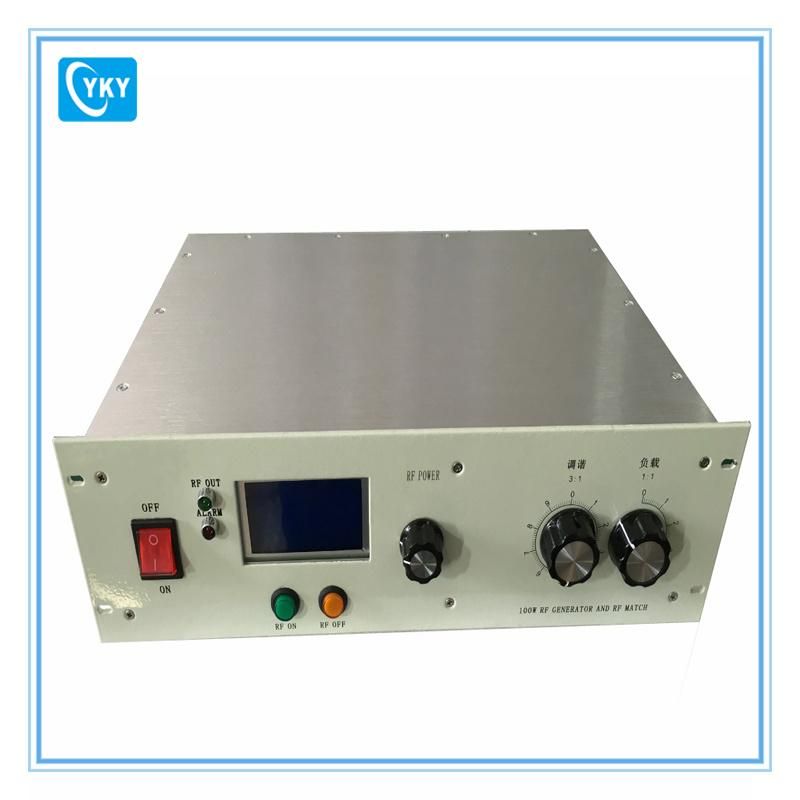

CY-RF100 Generator for your choice:
