• Model NO.：HJ-3
• Weight：0-100Kg
• Power Source：AC220V
• Determine The Maximum Load Range：2, 5, 20, 50kg
• Control Method：Computer Control
• Test Speed：0-200mm,Min
• Minimum Resolution：0.001kg or 0.1g
• Minimum Fine-Tuning Distance：0.01mm
• X Axis Movement Range：0-75mm
• Transmission Mechanism：Ball Screw Drive
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-3 Weight 0-100Kg Power Source AC220V Determine The Maximum Load Range 2, 5, 20, 50kg Control Method Computer Control Test Speed 0-200mm/Min Minimum Resolution 0.001kg or 0.1g Minimum Fine-Tuning Distance 0.01mm X Axis Movement Range 0-75mm Transmission Mechanism Ball Screw Drive Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Product Manual:

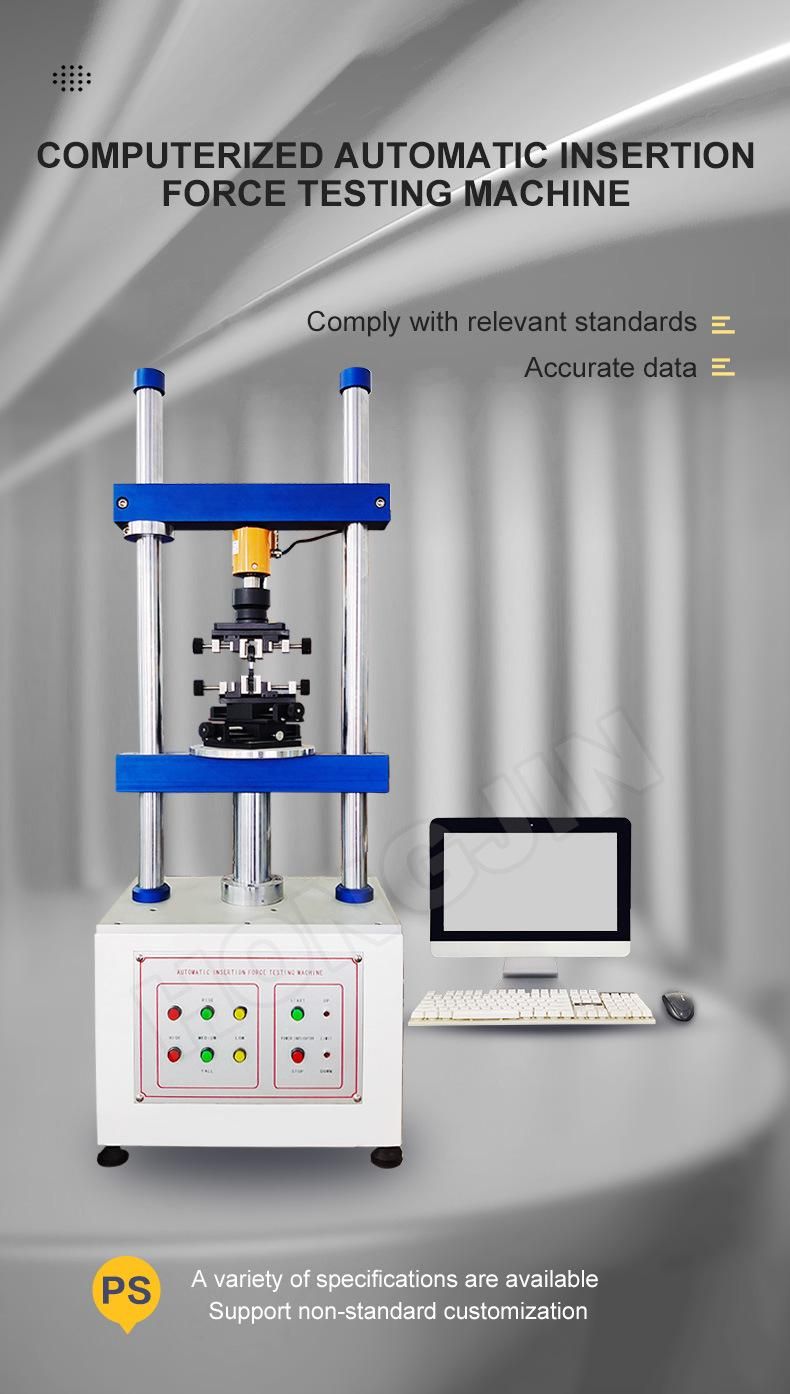

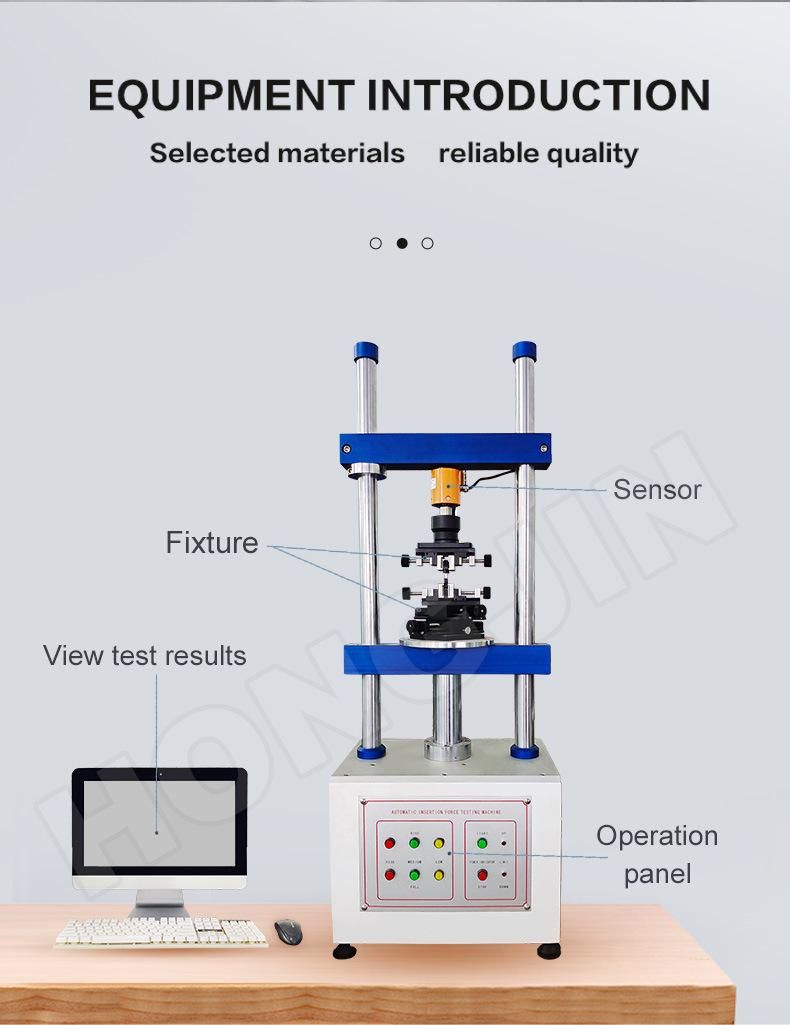

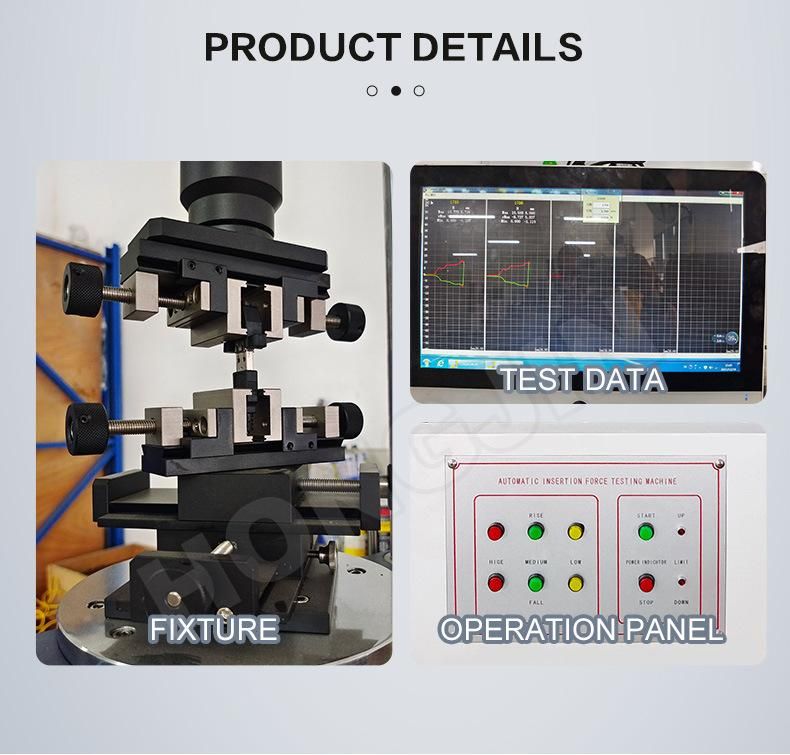

Computer-controlled high-precision full-automatic plug-in force testing machine, which is mainly used to detect the plug-in force, pull-out force, retention force, breaking force and other parameters of various connectors, shells, terminals, etc., through computer data analysis, can be accurately detected The load, stroke and the corresponding change curve, life curve, etc. of the connector are summarized through the data report. So as to provide various scientific data for product quality testing. This instrument uses an automatic heart-seeking device to solve the problems of male and female misalignment and unilateralism when testing various connectors. It is suitable for testing various products with different specifications.

Product use/standard
This machine is used to test the insertion force and pull-out force of various connectors. With a dedicated automatic heart-seeking device, it will be able to obtain completely accurate insertion and pull-out force tests, inspection reports, etc. The automatic center finding device is adopted to solve the fixture problems of various connection tests, and the male and female connectors can be automatically aligned during the test, and there will be no single-sided problems.


Determine the maximum load range	2, 5, 20, 50kg
Control method	Computer control
Test speed	0-200mm/min
Maximum measuring height	150mm
Minimum resolution	0.001kg or 0.1g
Minimum fine-tuning distance	0.01mm
X axis movement range	0-75mm
Y axis movement range	0-75mm
Transmission mechanism	Ball screw drive
Power supply	AC220V
Volume	360*260*940mm

Main test functions:
Kinetic resistance can be tested (ie: connector contact resistance measurement)
Can do connector single hole plug test
Can be used to connect the whole row plug test and connector plug life test
Can do connector single Pin and plastic retention test (ie: terminal retention test/fixed force point retention)
Can do connector NORMAL FORCE test
Can do general compression and tensile failure tests
Choice of continuous plug or single plug test
All point data on the waveform graph can be drawn and waveform graph remarks can be made
Can print and store graphics (plug displacement curve, life curve, inspection report, etc.)
Curve sampling rate can be set
Test data is stored in hard disk (each data can be stored, unlimited times)
The test conditions are all set in writing by the computer, which is convenient and fast (including plug-in stroke, speed, pause time... etc.)
The header content of the inspection report can be modified at any time
The inspection report can be transferred to Excel for editing
