Hzct-100 CT PT Analyzer Current Transformer Excitation Ratio Polarity Tester
Huazheng Electric Manufacturing (Baoding) Co., Ltd.- After-sales Service：Yes
- Warranty：1 Years
- Type：CT PT Analyzer
- Accuracy Grade：0.1 Class
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：Hzct-100
- Display：Digital
- Control：Manual Control
- Weight：0-100Kg
- Power Source：AC220V
- Oil Cylinder Position：No
- Name：CT PT Analyzer
- Storage：2000 Group
- Output：0~100vrms,12arms,36A(Peak Value)
- Voltage Measurement Accuracy：±0.2%
- Humidity：≤90%
- Usage：Class P,Tp CT & Vt
- Power Supply：AC220V±10%,50Hz
- Dimensions：340 mm 300 mm 150mm
- MOQ：1
- Certificate：ISO,IEC60044
- Transport Package：Box
- Specification：ISO,CE
- Trademark：HuaZheng
- Origin：Baoding, Hebei
- HS Code：9030820000
- Production Capacity：500set ,Year
Description
Usage
Class P/TP CT & VT
Output
0~180Vrms,12Arms,18A(peak value)
CT Ratio
Range
1~30000
accuracy
±0.2%
PT Ratio
Range
1~30000
accuracy
±0.2%
Phase
Range
±5min
accuracy
0.5min
DC resistance
Range
0~300Ω
accuracy
2%±2mΩ
Burden
Range
0~300VA
accuracy
2%±0.2VA
Power supply
AC220V±10%,50Hz
Environmental Conditions
Operating temperature :-10οC ~50οC,Humidity :≤90%
Weight and Dimensions
Dimensions:340 mm×300 mm×150mm,Weight<9kg
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

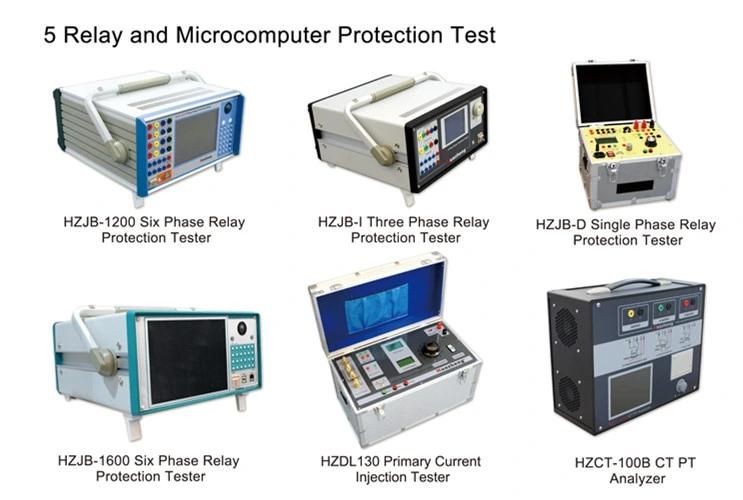

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
