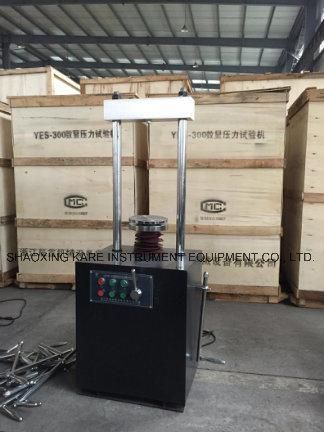

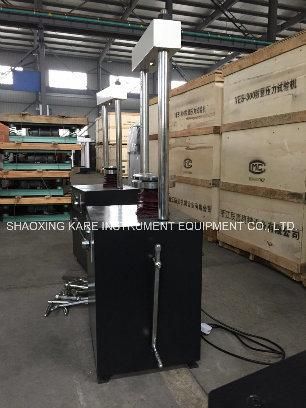

Pavement Material Strength Testing Machine Mainframe, Cbr Testing Machine (LD127-II)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Material Testing Machine
  • Maxcapacity：100kn
  • Accuracy Grade：1
  • Load Way：Mechanical Load
  • Display：Needle
  • Control：Manual Control

Base Info

  • Model NO.：LD127-II
  • Weight：About 120kg
  • Power Source：AC380V
  • Motor Speed：50mm,Min, 1mm,Min
  • Manual Speed：1,6mm,Cycle
  • Test Type：Cbr Test, Unconfined Compression, Indirect Flexure
  • Transport Package：Wooden Case
  • Origin：Zhejiang
  • HS Code：9024800000
  • Production Capacity：30 Sets,Month

Description

Max. load (slow stage)100KNLead screw disc max. moving distance200mmMotor rotating speedquick speed: 50mm /min
low speed: 1mm /min Manual speed1/6mm /cycleMotor specification 750W, 380V, 1400r.p.mOutline dimension508×430×1390mmWeightabout 120Kg
