Non-Nuclear Asphalt Density Gauge
Beijing ZBL Science and Technology Co., Ltd.- After-sales Service：Factory Supply Service
- Warranty：Three Years
- Transport Package：Carton Box Outside, Protecct Box Inside
- Specification：8.5kg , 43*23*16 cm
- Trademark：ZBL
- Origin：Beijing, China
Base Info
- Model NO.：ZBL-W310A
- HS Code：9031809090
- Production Capacity：1000 Pieces,Month
Description
Basic Info.
Model NO. ZBL-W310A HS Code 9031809090 Production Capacity 1000 Pieces/MonthProduct Description

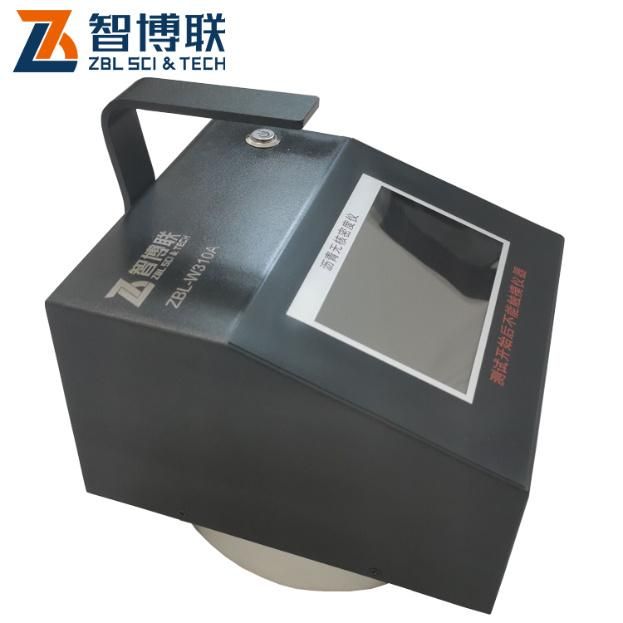

Non-Nuclear Asphalt Density Gauge ZBL-W310A
Functions:
This portable NDT instrument can detect the density of newly paved asphalt road (including the upper, middle and lower layers of the asphalt pavement structure), and it is also suitable for old asphalt pavements without pollution and loose surface.
Specifications:

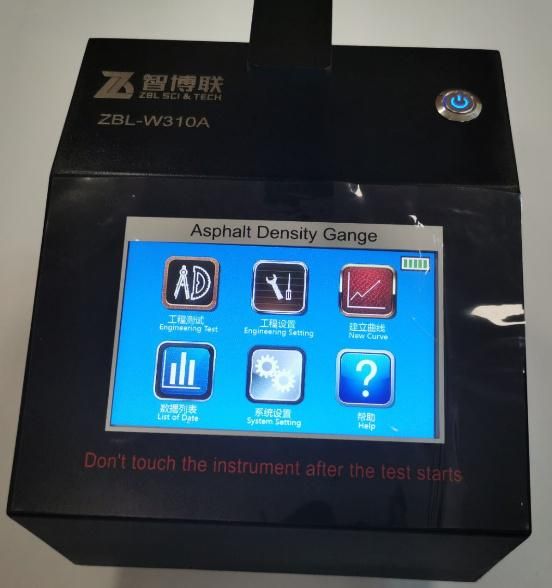

1. Portable design and user-friendly;2. Without the nuclear source, clear and safe;3. Continuous working time:24 hours;4. Test the temperature and wet of asphalt road;5. 5-inch high-brightness touch screen, and visible under strong sunshine; 6. Transfer data and upgrade software through USB.
Main parameters:
| Items | Technique Data |
| Detection area(cm) | diameter:15 cm, including Fine and coarse materials; |
| Operation temperature(Celsius degree) | environmental temperature: -7-45ºC Surface temperature:175ºC |
| Measurement unit | g/cm3 |
| Host size(mm) | 170*200*150 |
| Host weight(kg) | 3.1 |
| Detection depth(mm) | 20-120 |
| Detection items | density, compactness(%), porosity(%) |
| Storage capability | 10000 detection data |
| power supply | Lithium battery |
| Continuous working time | more than 24 hours |
| Data transfer | USB |
