• Model NO.：HV-1000Z
• Testing Before Delivery：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. HV-1000Z Testing Before Delivery Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

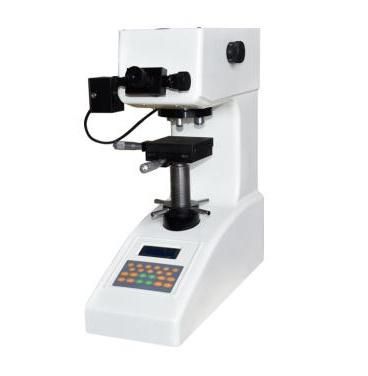

Precision Digital Auto-Turret Micro Hardness Tester Vickers HV-1000Z

 Application range: Nitriding layer, ceramics, steel, non-ferrous metals; sheet, metal sheet, electroplating layer, micro test piece; depth measurement of carbide layer, decarburization layer and quench hardening layer; suitable for parallel planes, micro parts and ultra-thin Precision Vickers measurement of parts.


Main features:
Friction-free spindle, high test force accuracy; high-precision optical measuring system, precise coordinate test bench; automatic test process, simple operation, the position switch of the observation-test-measurement of the hardness tester is completed by the automatic turret, no human operation Error; printer prints hardness test results; optional CCD camera device and image processing system; optional Knoop indenter for Knoop hardness test; accuracy conforms to GB/T4340.2 ISO 6507-2 and American ASTM E384.


Main technical specifications:
Measuring range: 5-3000HV
Test force: 0.09807, 0.2454, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N
(10,25,50,100,200,300,500,1000kgf)
Measurement system magnification: 400x, 100x
Minimum detection unit: 0.5μm
Maximum allowable height of sample: 90mm
Distance from center of indenter to machine wall: 95mm
Power supply: AC220V, 50/60Hz
Dimensions: 340*160*378mm
Weight: about 40kg

Standard configuration: coordinate test bench*1; thin shaft test bench*1; thin plate test bench*1; flat pliers*1; diamond pyramid indenter*1; standard microhardness block*2;
Optional configuration: Knoop pressure head; CCD image processing system



About  Company

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.




Certification
