• Model NO.：XHDD503D
• Test Region：Forming Cable
• Power：Electricity
• Certification：CE
• Customized：Customized
• Color：Black

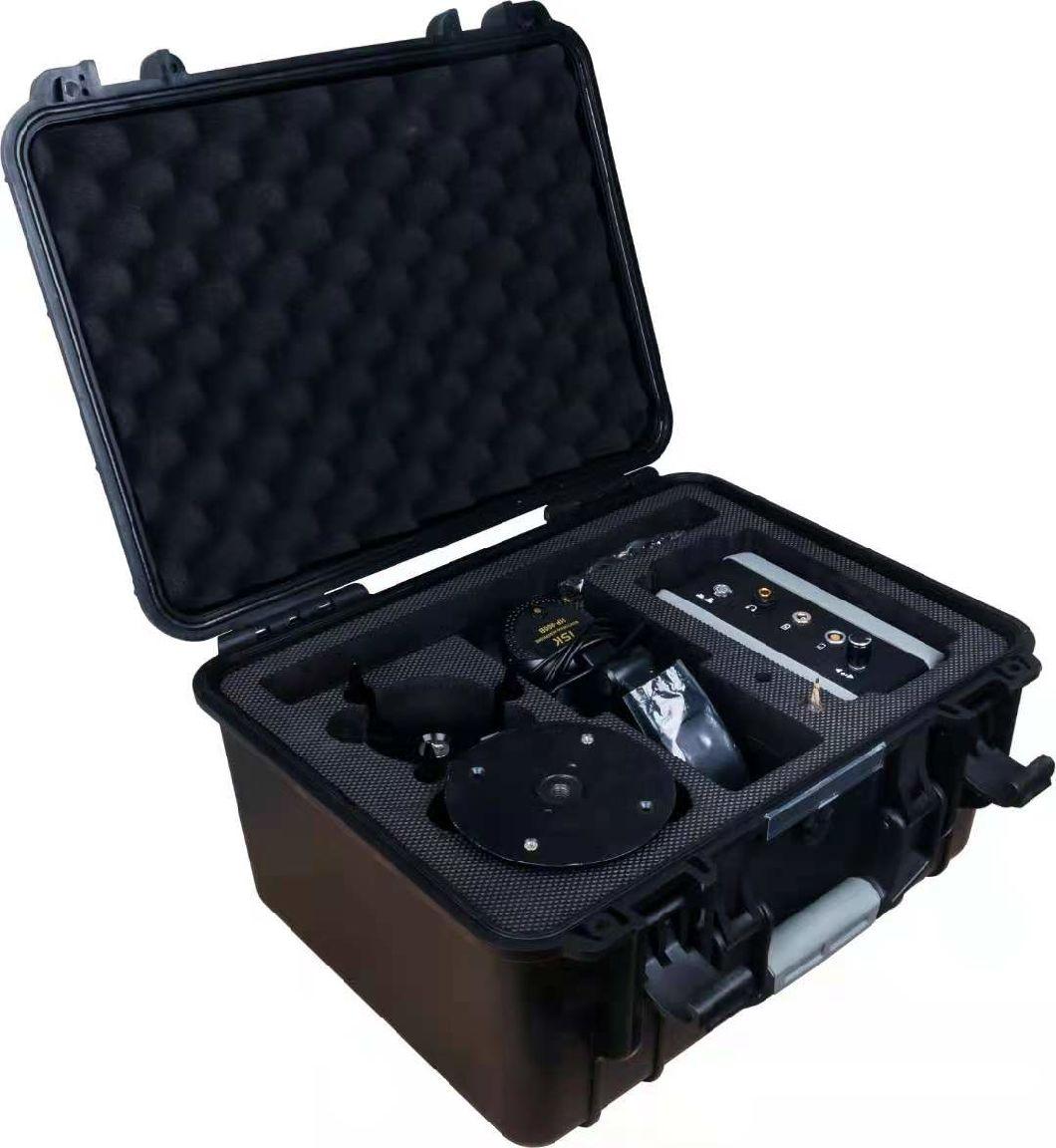

• Transport Package：Wood Case with Foam
• Specification：350*280*170 (mm)
• Trademark：XZH TEST
• Origin：China
• Production Capacity：2000PCS,Year
• Package size per unit product：35.00cm * 28.00cm * 17.00cm
• Gross weight per unit product：5.500kg

Basic Info.

Model NO. XHDD503D Test Region Forming Cable Power Electricity Certification CE Customized Customized Color Black Transport Package Wood Case with Foam Specification 350*280*170 (mm) Trademark XZH TEST Origin China Production Capacity 2000PCS/Year

Packaging & Delivery

Package size per unit product 35.00cm * 28.00cm * 17.00cm Gross weight per unit product 5.500kg

Product Description

















Product description:

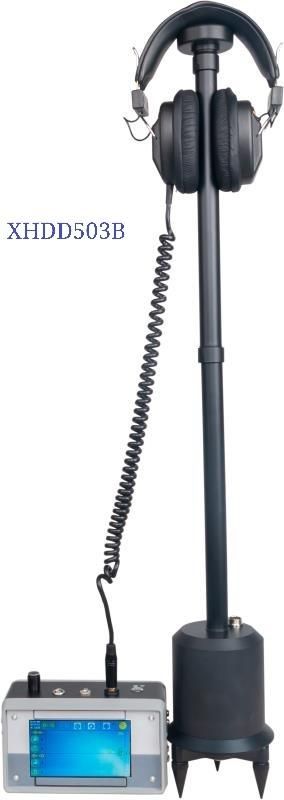

XHDD503B cable faults pin-pointer is used for pin-Pointing kinds of cable faults of underground
power cable by using acoustic and magnetic method.

Main features:


★Acoustic wave, magnetic wave dual display, background noise reduction technology, active filter circuit.
★Directly display the acousto-magnetic delay value through intelligent algorithms, and the compass indicates the cable path.
★Adjustable filter parameters, suitable for complex environments to suppress environmental noise.
★Automatic gain function, automatic adjustment of magnetic field trigger gain, fool-style fixed point.
★High-performance anti-noise monitor headphones to ensure that the discharge sound is not distorted.

Technical Data:

★Fixed-point accuracy: 0.1m
★Bandwidth: 300-1500Hz can be adjusted arbitrarily
★Gain:>80db
★Power supply: Built-in 3400mAH lithium ion battery.
Use time: continuous use time> 8 hours;
Charger: input AC220V±10%, 50Hz; Nominal output 8.4V, 1A
Charging time: <6 hours.

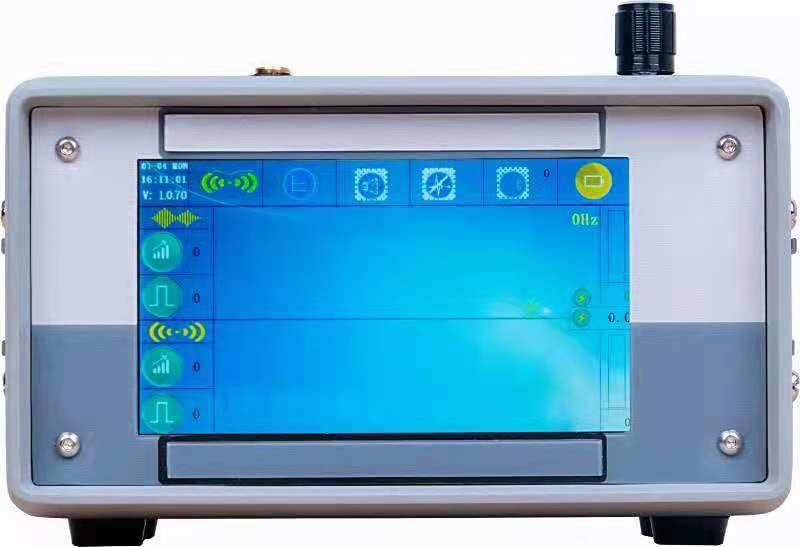

★Display: 5-inch color LCD, 854*480 resolution, with touch function
★Volume: host 200mmX195mmX120mm
★Weight: host 2.0kg; sensor 2.5kg
★Conditions of use: temperature -25ºC-40ºC, humidity 90%RH, altitude <4500m
