• Model NO.：HZJQ-N1
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Top
• Oil Cup Capacity：400ml 200ml
• Hz-381 Type：Single Oil Cup Structure
• Testing Time：6 Times (1~6 Times Optional)
• Minimum Resolution：0.1kv
• Insulating Oil Pressure Test：0-80kv (Optional)
• Measurement Resolution：±(2% * Reading+ 0.2kv)
• Electrode Distance：2.5mm (Electrode Gap Can Be Adjusted)
• Wave Form Distortion：Less Than 3%
• Supply Voltage：AC220V±10% 50Hz±1 Hz
• Applicable Humidity：Max Relative Humidity 75%
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030899090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. HZJQ-N1 Loading Method Static Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Top Oil Cup Capacity 400ml 200ml Hz-381 Type Single Oil Cup Structure Testing Time 6 Times (1~6 Times Optional) Minimum Resolution 0.1kv Insulating Oil Pressure Test 0-80kv (Optional) Measurement Resolution ±(2% * Reading+ 0.2kv) Electrode Distance 2.5mm (Electrode Gap Can Be Adjusted) Wave Form Distortion Less Than 3% Supply Voltage AC220V±10% 50Hz±1 Hz Applicable Humidity Max Relative Humidity 75% Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9030899090 Production Capacity 100 PCS/Month

Product Description

HZJQ-N1 80kV Transformer Oil BDV Measuring Kit Dielectric Strength Test Equipment
 I.Introduction

1,Output voltage: 0~80KV (100kV optional)

2,Voltage distortion rate: <3%

3,Voltage raising speed: 0.5~5 KV/S (adjustable)

4,Standing time: 15min (adjustable)

5,Boosting interval: 5 min (adjustable)

6,Boosting frequency: 1~9time(s) (optional)

7,Booster capacity: 1.5KVA

8,Measuring accuracy: ±3%

9,Supply voltage: AC220V±10%  50Hz±1 Hz

10,Power: 200W

11,Applicable temperature: 0ºC~45ºC

12,Applicable humidity: <75%RH

13,Overall dimension: 465×385×425

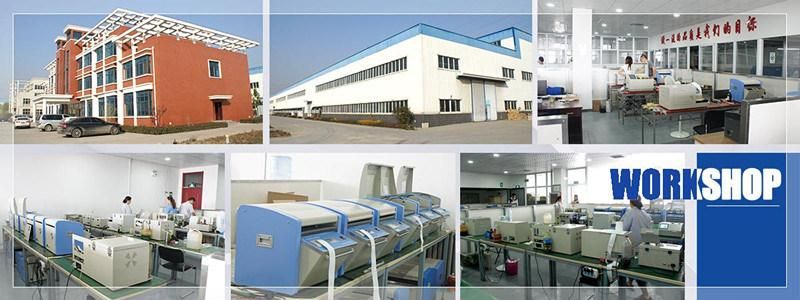

Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

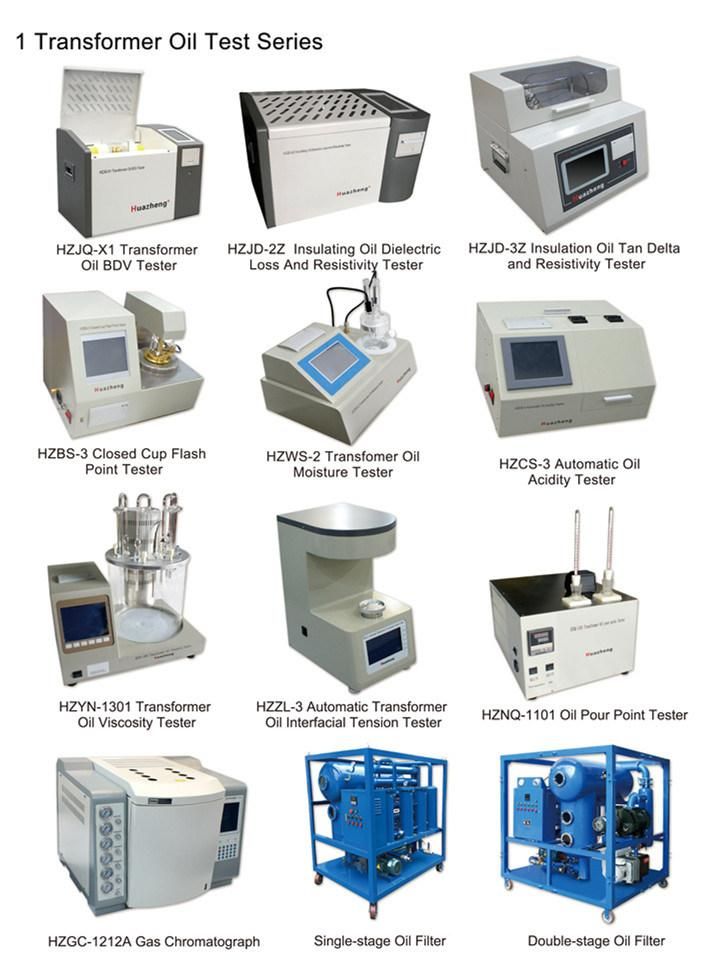

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


FAQ

1. Q: What is the language? After sale service? Warranty?
A.Yes,English version. After sale service. Warranty: 1 year.
2. Q: What is the highest voltage the instrument can test?
A: The instrument can test up to 100KV, OEM is also ok.
3. Q: Whether can communicate with computer , RS232? A: Yes, it can communicate with computer. It has RS232.
4. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: It has a little Li-battey , no liquid, which does not influence the delivery.
5. Q: Does this instrument have the priter ? Automatically or by hand?
A: Yes, it has, you can set up whether to print the result automatically or by hand.
6. Q: How many times can it test once? How to get the result?
A: It can test 1-6 times (according to your requirement). Result is the average of testing
