• Model NO.：HZJB-Y
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Usage：Single Phase Relay Tester
• Work Power：110V-400V Adjustable
• Power Frequency：50±1Hz
• Phase：0--360 °
• Power Capacity：300va , Phase
• Line Voltage Range：0--250V
• Power：AC220V ± 10% 50Hz 10A
• Environment Humidity：≤90%Rh
• Work Temperature：-10°c~ 50°c
• Certificate Standard：ISO CE
• Transport Package：Standard Carton, Box
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Baoding, Hebei
• HS Code：9030820000
• Production Capacity：500set ,Year

Phase-shifted or variable-frequency output

5,stopwatch

Range:0.0000~999999S, Resolution:0.1mS ,precision:±5 characters

With contact and potential input, maximum input voltage: DC 250V

6,Ammeter

Range:Internal:0.000~150.0A(AC or DC)

External:0.000~6.000A(AC or DC)

precision:0.5%

Measurement method:AC:True RMS    DC:Average value

7,Voltmeter

Range:0.0~600.0V(AC or DC)   precision:0.5%

Measurement method:AC:True RMS  DC:Average value

8,Resistors and capacitors

Resistance:0.5Ω~2.5kΩ,   Capacitor:10uF,maximum voltage AC 450V

9,Split/close auxiliary contacts

Maximum current:1A,  Maximum voltage:AC250V or DC120V

10,Use environment: temperature-10~40ºC,relative humidity less than 80%

11,Volume:360 mm×270 mm×250 mm

12,Weight: 18kg

Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.

What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

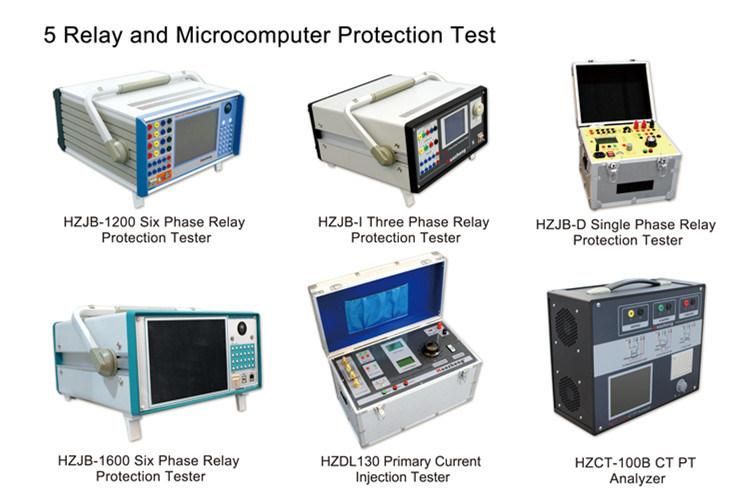

Our main products are Safety Products, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


Our Services
1. Good after sales service: Any small problem happening will be solved at the most prompt time;
2. We have many years of experience, we have specializing in fastener;
3. Specifications list is available upon your request
4. Welcome to send enquiry,we will reply soon.If you want to know more,pls feel free to contact us.
5. Prompt shipment with professional documents
6. Packing as your request, with photo before shipment
7. High quality and competitive price
8. All the product quality are under strict controll and offer good service.
9. Our produts now are known by lots of our domestic customers and oversea clients.
