• Model NO.：GN-BTS-5V6A 5V20A 5V30A
• Per Channel Voltage Range：Charge0V-5V;Discharge2.5V-5V
• Stability：(0.05% of Reading + 0.1% of Range)
• Resolution：1,16384*Range(5V)
• Per Channel Current Range：Charge 0A-20A; Discharge 0A-20A
• Accuracy：(0.05% of Reading + 0.1% of Range)
• Per Channel Output Power：800W
• Current Response Time：<=50ms
• Steptime Range：>1000h,Step
• Transport Package：Standard Wooden Box for Exporting
• Specification：SGS, ROHS, UL, CE
• Trademark：GELON
• Origin：China
• Production Capacity：500set,Month

Basic Info.

Model NO. GN-BTS-5V6A 5V20A 5V30A Per Channel Voltage Range Charge0V-5V;Discharge2.5V-5V Stability (0.05% of Reading + 0.1% of Range) Resolution 1/16384*Range(5V) Per Channel Current Range Charge 0A-20A; Discharge 0A-20A Accuracy (0.05% of Reading + 0.1% of Range) Per Channel Output Power 800W Current Response Time <=50ms Steptime Range >1000h/Step Transport Package Standard Wooden Box for Exporting Specification SGS, ROHS, UL, CE Trademark GELON Origin China Production Capacity 500set/Month

Product Description

Battery Tester Machine Testing system Charging and Discharging Tester For Lithium Ion Battery

Product Description

Battery charging and discharging testing Product Description

1. The battery tester is according to the international standard design, battery tester each channel has an independent constant-current source and constant-voltage source. It is used to test rechargeableas( Ni-MH battery, Ni-CD battery, Lithium-ion battery and polymer batter, etc.) pack battery, and so on.

2. Battery tester's internal electrical power supply uses the high efficiency switching power supply, the energy conservation effect isemarkable, each power tube has the independent protection circuit, guarantees the Equipment works with safety and reliability.

3. Measure adopts four wire method, decrease contact error, increase measure precision.

4. Battery tester e ach channel is independent; With high efficient cooling system, Equipment can work 24 hours with full load.


We also provide the different USES of various types of testers.

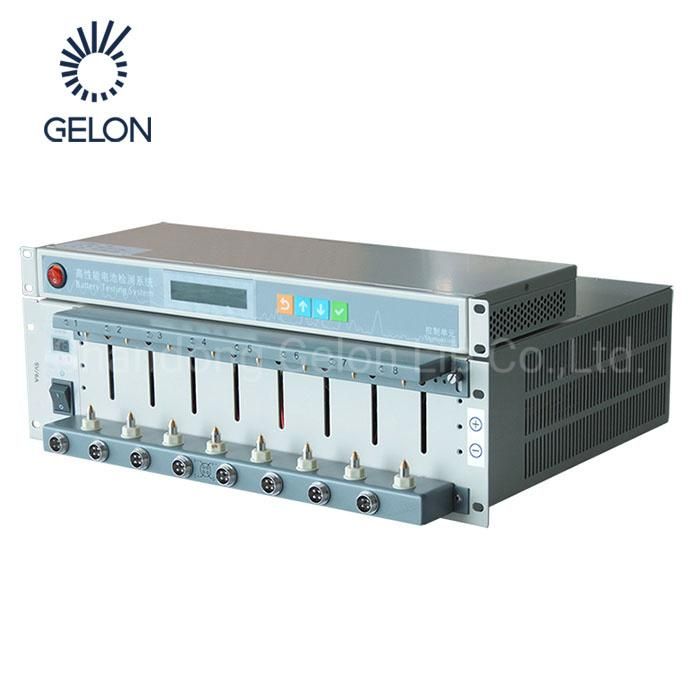

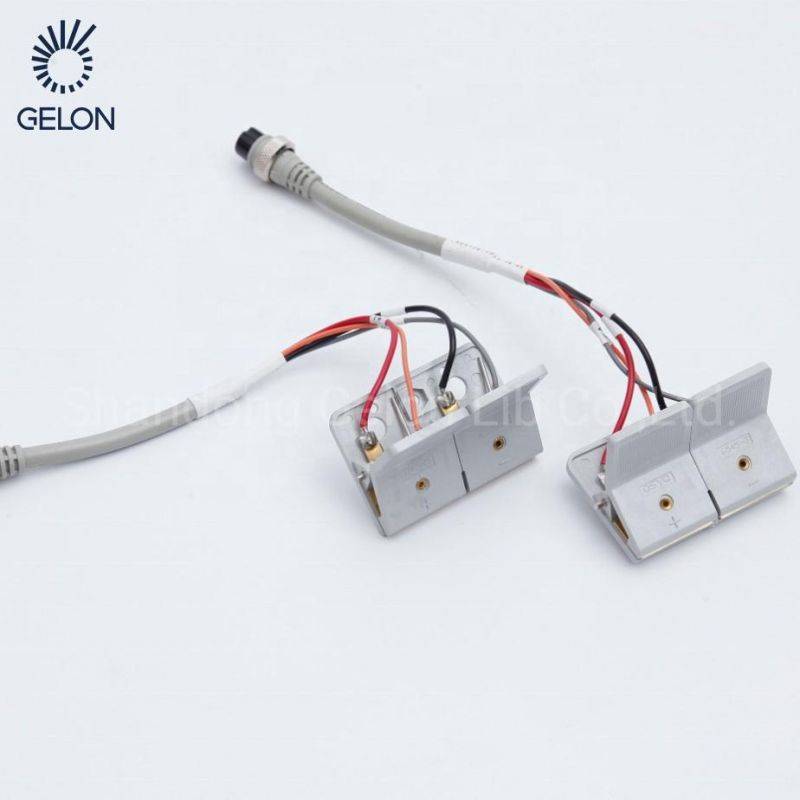

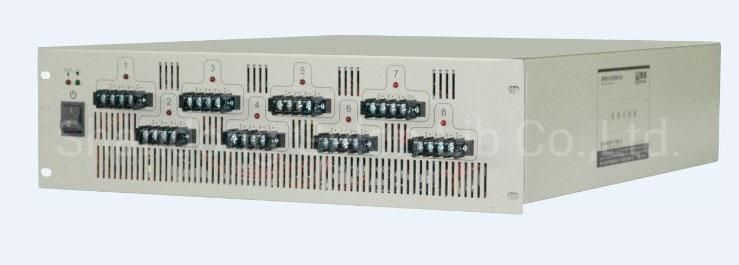

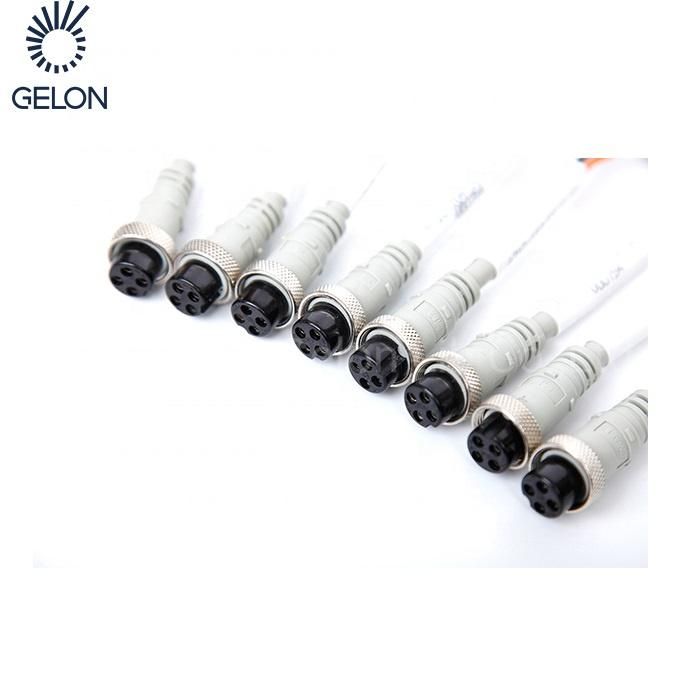

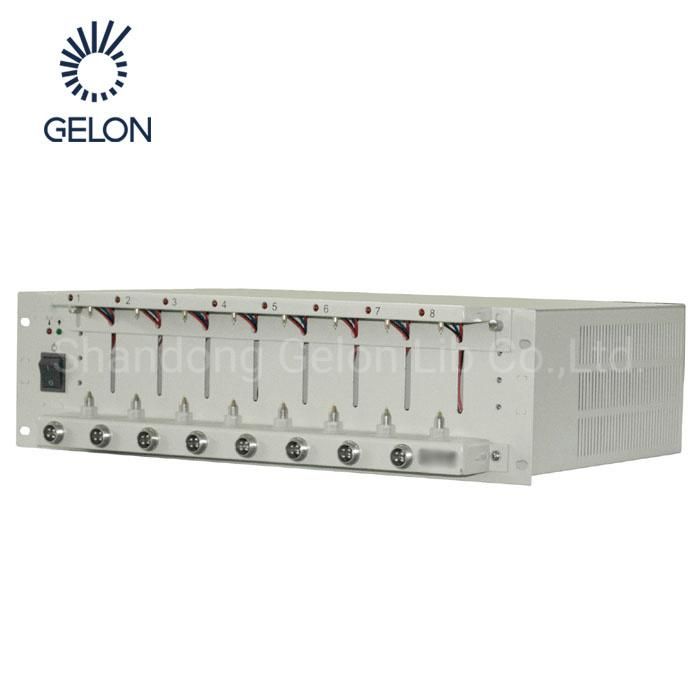

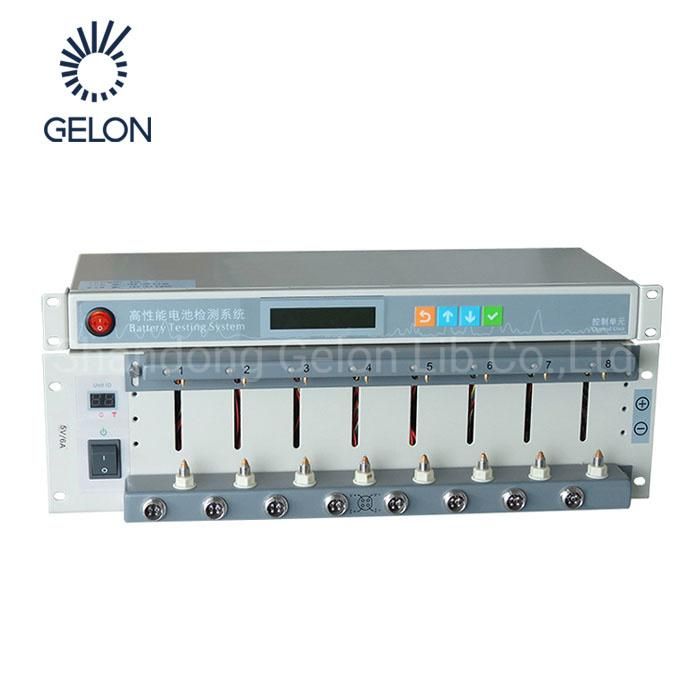

Product photo





 We provide full set of lithium ion battery raw material and equipment .




Company Information



We are the first and earliest exporter for Li-ion battery materials. We focus on lithium electricity industry for 10 years, can provide full set of lithium battery materials ,equipment and technology.    We can provide one-stop solution for you, provide a "turn key" project for you!
