• Model NO.：GN-TS4008
• Battery Internal Resistance Testing：Bk-300, Bts-100
• Finished Battery Testing：Gn-301
• Other Tester：Protection Board Tester
• Offer：One Stop Service for Lithium Ion Battery Machine
• Voltage Measurement Range：DC100-4500mv
• Channel：216,512
• Working Temperature：0~40 ºC
• Relative Humidity：Less Than 85%
• Minimum Discharge Voltage：2000mv
• Clamp Spacing：35mm
• Max Power Dissipation：7000W
• Transport Package：Standard Exporting Packing
• Trademark：gelon
• Origin：China(Mainland)
• Production Capacity：50set,Month

Basic Info.

Model NO. GN-TS4008 Battery Internal Resistance Testing Bk-300, Bts-100 Finished Battery Testing Gn-301 Other Tester Protection Board Tester Offer One Stop Service for Lithium Ion Battery Machine Voltage Measurement Range DC100-4500mv Channel 216/512 Working Temperature 0~40 ºC Relative Humidity Less Than 85% Minimum Discharge Voltage 2000mv Clamp Spacing 35mm Max Power Dissipation 7000W Transport Package Standard Exporting Packing Trademark gelon Origin China(Mainland) Production Capacity 50set/Month

Product Description

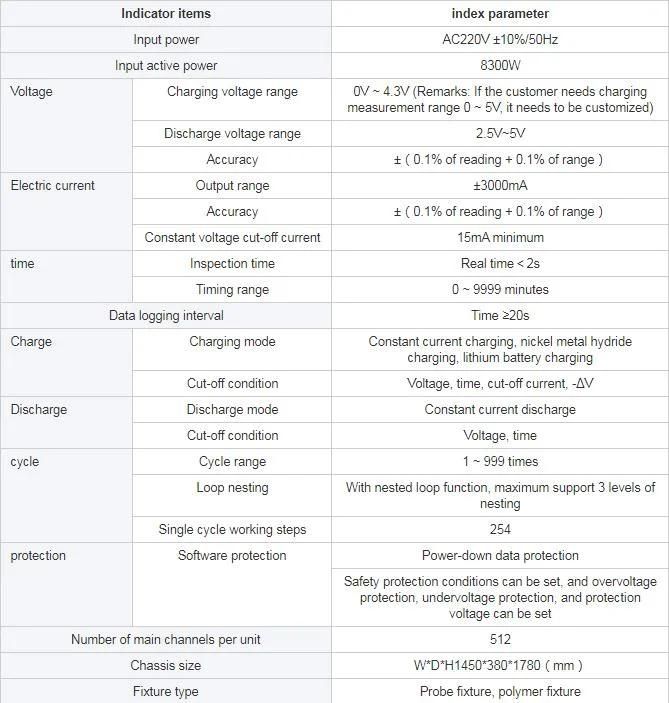

Battery 256/512 Channel Tester Battery Charge and Discharge Equipment
Battery tester analyzer for charging -discharging/ Voltage/internal resistance testing performance for all Ni-MH,Lithium ion cell
5V5A:

We can provide full set of li ion battery materials,equipment and technology, offer one-stop service.

1. 5V5mA 5V10mA  5V3A 5V6A  5V10A   10V3A 10V6A 10V 20A etc for Ni-MH Lithium ion battery charging and discharging testing process
2. Battery Voltage/internal resistance testing  for all Ni-MH,
Lithium ion cell GNBTS-100 internal resistance battery tester:
3. Battery short circuit testing machine for battery production line  ( half-finished battery )

4. Finished  battery testing machine
5. Forming and grading machine:



Other relatively lithium ion battery materials and equipment:
1) we can also supply all materials and full set of equipments for Lithium ion battery
2) Linyi Gelon Lib Co., Ltd. is the original name of LinYi Gelon New Battery Materials Co., Ltd.




We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
