• Power Source：AC220V
• Test Method：Touch Screen
• Test Station：Can Measure 2 Samples at The Same Time
• Test Speed：10-60 Times,Minute (Manually Adjustable)
• Test Product Thickness：10-50mm Can Be
• Clamping Fixture：Clamp Both Sides
• Height Adjustment：Manually Directly Adjustable
• Machine Size：500*450*520mm
• Power Supply：220V
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Power Source AC220V Test Method Touch Screen Test Station Can Measure 2 Samples at The Same Time Test Speed 10-60 Times/Minute (Manually Adjustable) Test Product Thickness 10-50mm Can Be Clamping Fixture Clamp Both Sides Height Adjustment Manually Directly Adjustable Machine Size 500*450*520mm Power Supply 220V Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Products Description

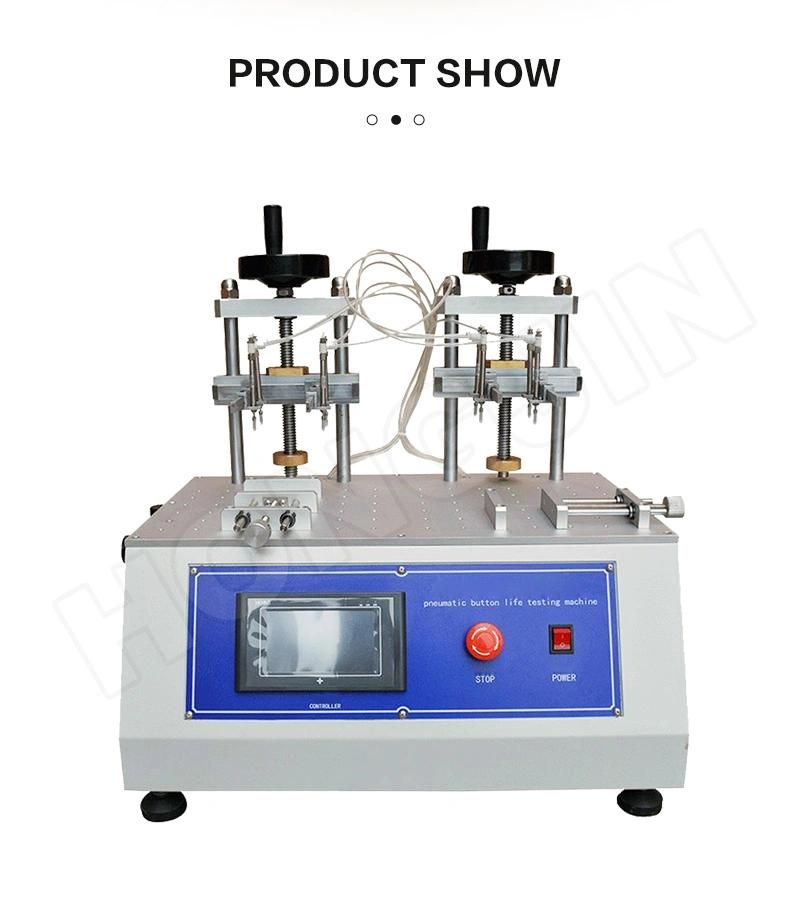

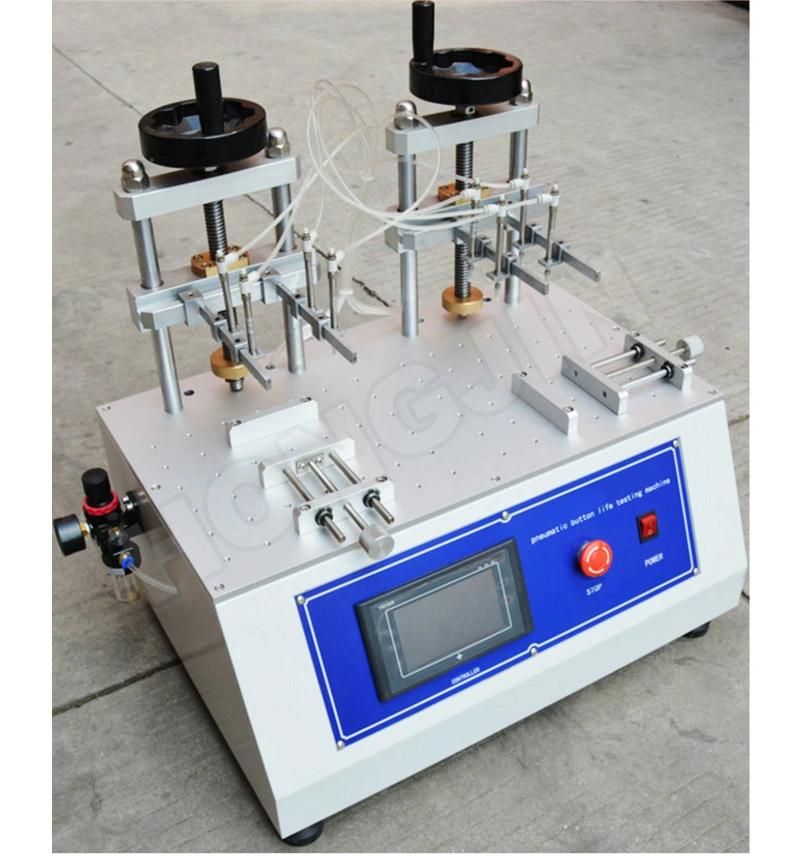

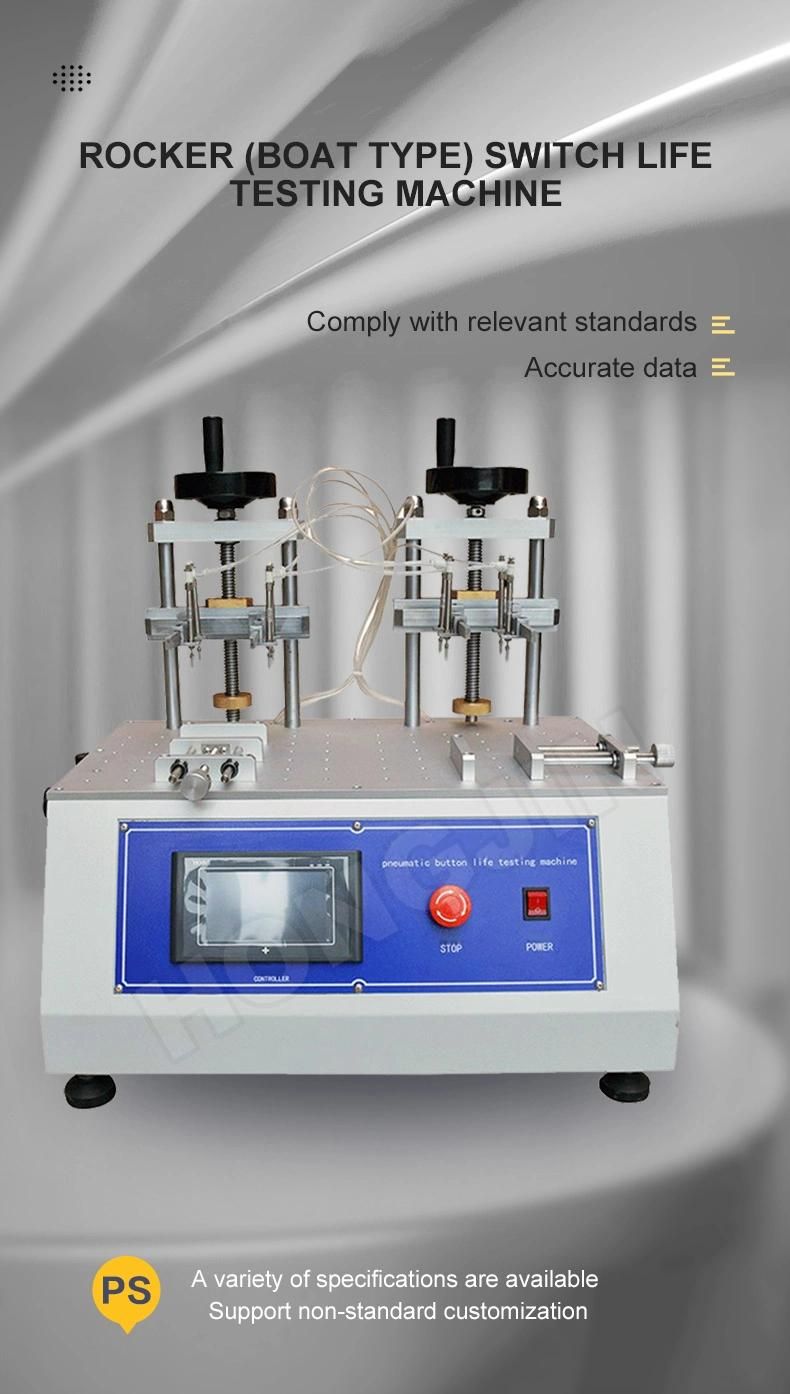

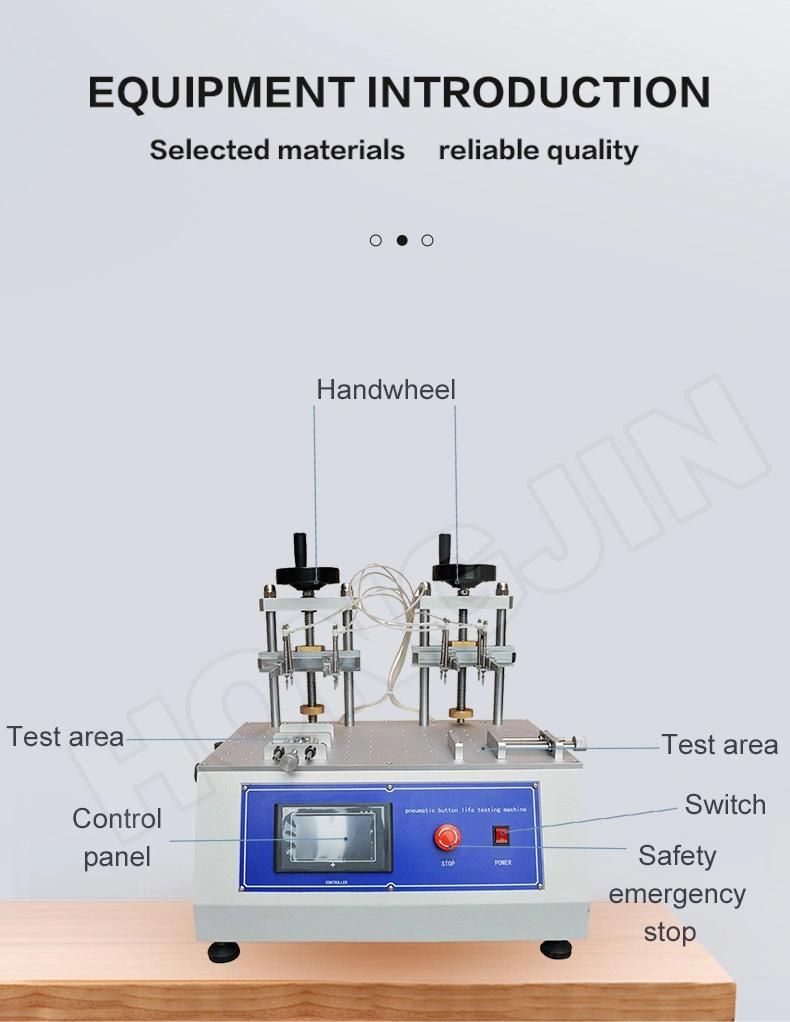

This machine is widely used to test the fatigue life of various keys, keyboards, switches and so on.

This machine is a pneumatic key life testing machine, which USES cylinder drive to drive the probe.Move up and down so that the key or keyboard moves relative to the probe.

Feature
The equipment adopts computer control and special software for combat testing developed under windows environment, with intuitive interface and simple operation.
Strike load: the current pressure sensor strikes the maximum load
Set the target number of times: set the number of lifespans that need to be hit
Number of completions: the recorded number of times after the station has been activated (the number of times of changing the station can be cleared through the reset menu)
Interval time: Intermediate pause time between second and second
Depression time: dwell time after the blow head is depressed
Depression mode: simultaneous depression and sequential 1-2-3-4 depression mode
Power monitoring: open to determine the upper and lower range of the following group of forces, if it exceeds the alarm and stop, it will not be monitored after it is turned off
Start button: used to start the movement of the station
Real-time load display: used when calibrating the load sensor
Maximum load display: record the maximum load of each blow during the test.

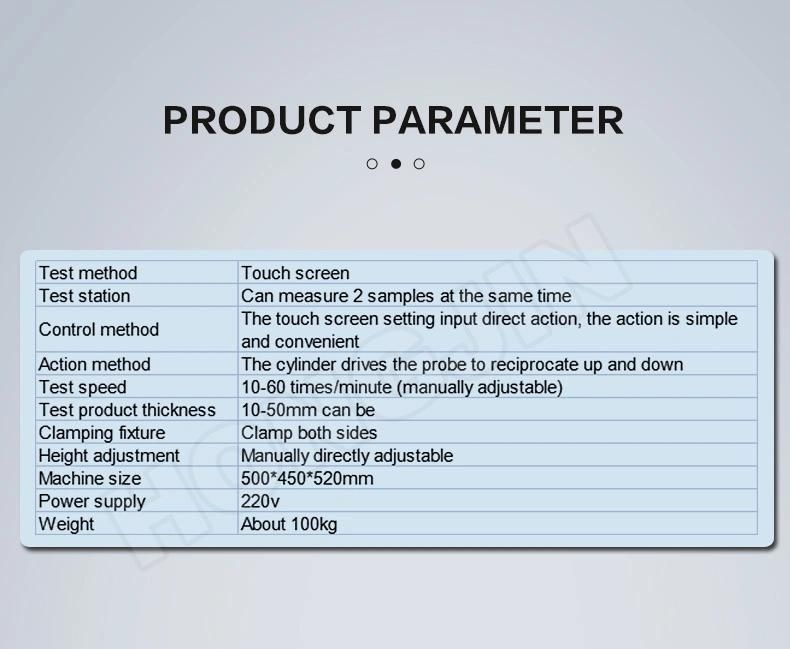

Test method	Touch screen
Test station	Can measure 2 samples at the same time
Control method	The touch screen setting input direct action, the action is simple and convenient
Action method	The cylinder drives the probe to reciprocate up and down
Test speed	10-60 times/minute (manually adjustable)
Test product thickness	10-50mm can be
Clamping fixture	Clamp both sides
Height adjustment	Manually directly adjustable
Machine size	500*450*520mm
Power supply	220v
Weight	About 100kg
