Collectors Solar Modules Mechanical Load Tester with IEC61215-2: 2016 The Newest Testing Standard
Dongguan Hong Tu Instrument Co., Ltd.- Max Diameter of Workpiece：>3200mm
- Mass Scope of Workpiece：900kg
- Type：Mechanical Load Tester
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Mechanical Load
Base Info
- Model NO.：HTPV-08
- Loading Method：Dynamic Load
- Display：Computer
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC220V
- Product Name：Mechanical Load Tester
- Testing Standard：IEC61215-2:2016
- The Positive Load：The Maximum 8000PA
- The Negative Load：The Maximum 5400 PA
- Testing Sample Size：2000*1000mm
- Control Ways：Computer Control
- Sucker Diameter：120mm
- Cylinder Quantity：8 PCS
- Sucker Quantity：32 PCS
- Pressure Control Accurate：5%
- Transport Package：Export Wooden Case
- Specification：Conform IEC61215-2: 2016
- Trademark：HOTOTECH
- Origin：China
- HS Code：9031809090
- Production Capacity：100 Sets Per Month
Description
Sensor ( the accurate:0.1N)
Software operate system feature1.Computer operate and control software by HOTOTECH researched and development,easy operate and test data stable2.The software support Chinese and English , with the Switching function3.Software real-time display pressure, deformation , testing time, cycle times and current electricity continuity4.Software real-time drawing pressure and deformation curve 5.Software real-time display each cylinder's force value and drawing the force value curve
6.Testing data real-time storage , query & print
7.The Testing data can export Word, Excel, PDF,JPG format8.The software with the fault warning function

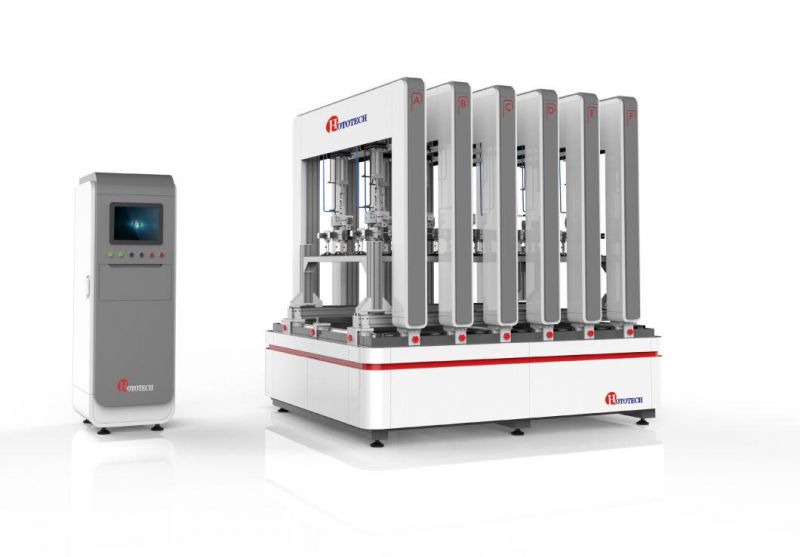

The Machines appearacne figure display

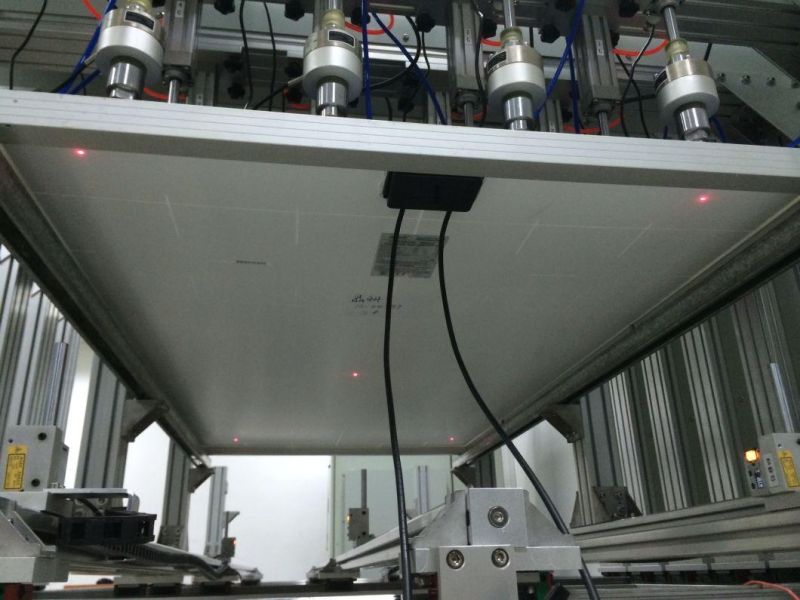

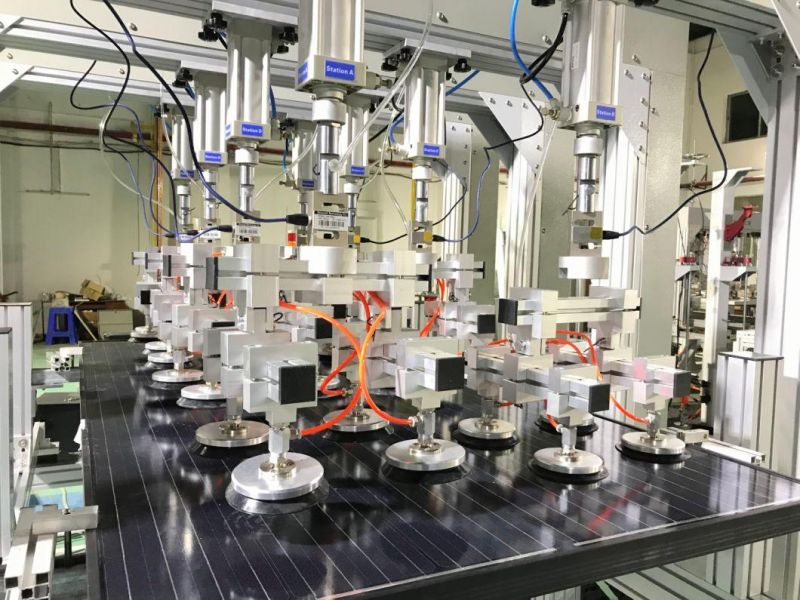

The Machines details figures display
