• Model NO.：STYH-4
• Loading Method：No
• Display：Electrical
• Control：Automatic Curing Cabinet Controller
• Weight：90kgs
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Styh-4 Automatic Curing Cabinet Controller
• Application：Controller for Curing Cabinet of Cement Specimens,
• Capacity：10m2
• Temperature Control Range：0-50c
• Accuracy：2c
• Humidity：Bigger95% Rh
• Heating Power：2kw
• Humidify Power：60W
• Voltage：220+10%V, 50+1Hz
• Controller Dimension：500X285X900mm
• Main Frame Dimension：350X420X600mm
• Transport Package：Wooden Case
• Specification：0.7CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STYH-4 Loading Method No Display Electrical Control Automatic Curing Cabinet Controller Weight 90kgs Power Source AC220V Oil Cylinder Position No Product Name Styh-4 Automatic Curing Cabinet Controller Application Controller for Curing Cabinet of Cement Specimens, Capacity 10m2 Temperature Control Range 0-50c Accuracy 2c Humidity Bigger95% Rh Heating Power 2kw Humidify Power 60W Voltage 220+10%V, 50+1Hz Controller Dimension 500X285X900mm Main Frame Dimension 350X420X600mm Transport Package Wooden Case Specification 0.7CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

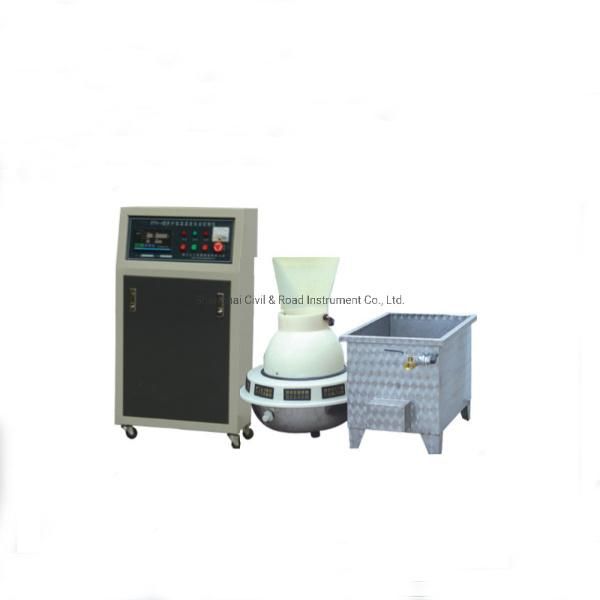

STYH-4 Automatic Curing Cabinet Controller
Application: Controller for curing cabinet of cement specimens, concrete specimens;
Purpose:
The equipment is suitable for standard curing the concrete and cement specimen by the building, road, scientific research units, and construction site.
Technical parameter:

Capacity	10m2
Temperature control range	0-50ºC
Accuracy	± 2ºC
Humidity	>95% RH
Heating power	2KW
Refrigerator power	<2KW
Humidify power	60W
Voltage	220+10%V, 50+1Hz
Controller dimension	500×285×900mm
main frame dimension	350×420×600mm
