• Model NO.：TH2838A
• Warranty：With Warranty
• Power Source：DC 100V-300V
• Weight：〉10Kg
• Installation：Direct Connected
• Customized：Customized
• Frequency：20Hz-1MHz
• Basic Test Accuracy：0.05% (The Details Refer to The Instruction)

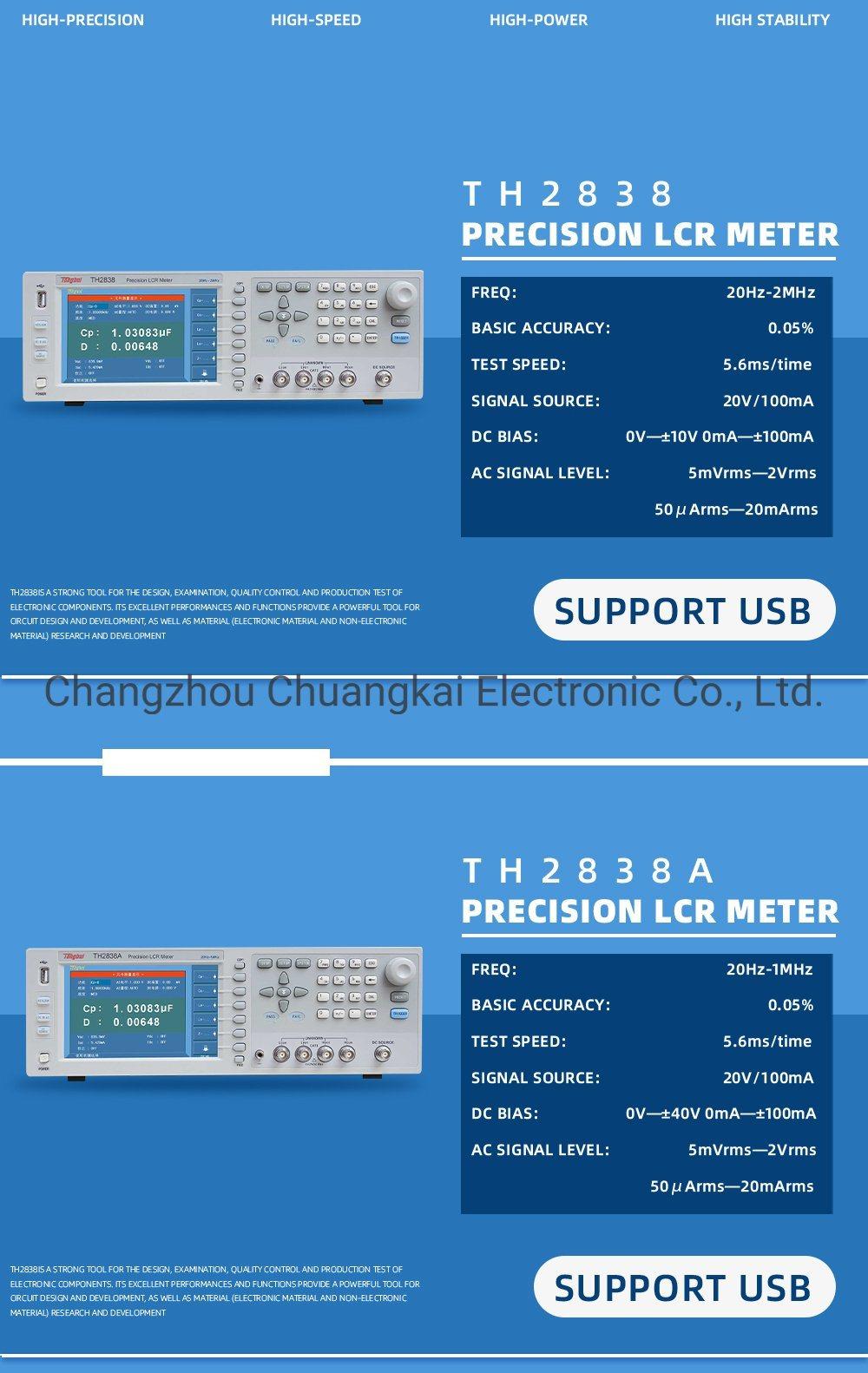

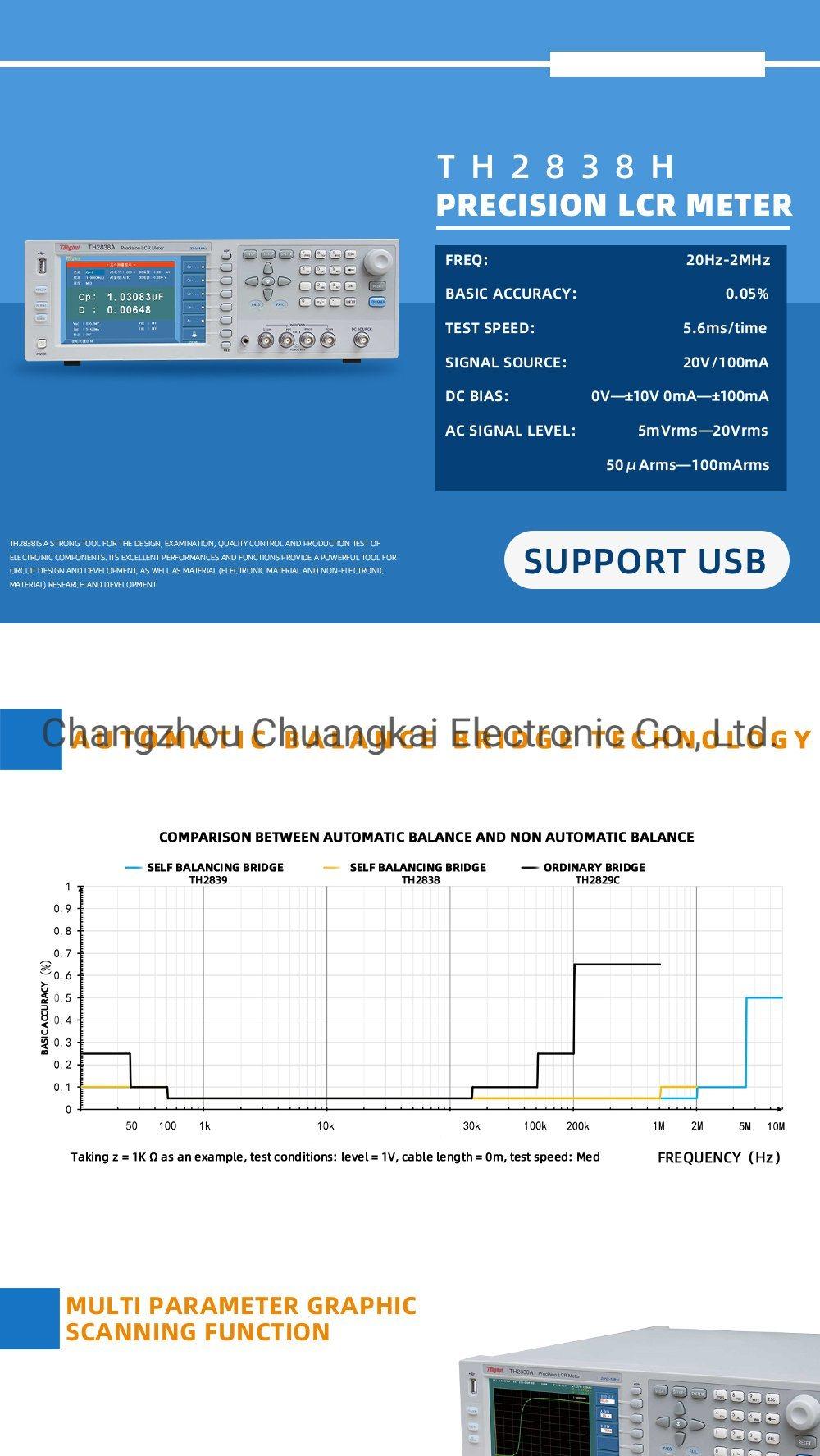

• Product Name：Th2838A High Accuracy High Frequency Rlc Meter
• Trigger Delay：0 S -- 999 S, Resolution 100us
• Range Mode：Auto, Hold
• Trigger Mode：Internal, Manual, External, Bus
• Calibration Function：Open, Short, Load
• Sweep Points：up to 201 Points
• Average Time：1-255
• Transport Package：Carton
• Specification：55x54x33cm
• Trademark：CKT
• Origin：China
• HS Code：9030339000
• Production Capacity：2000 Sets Per Month

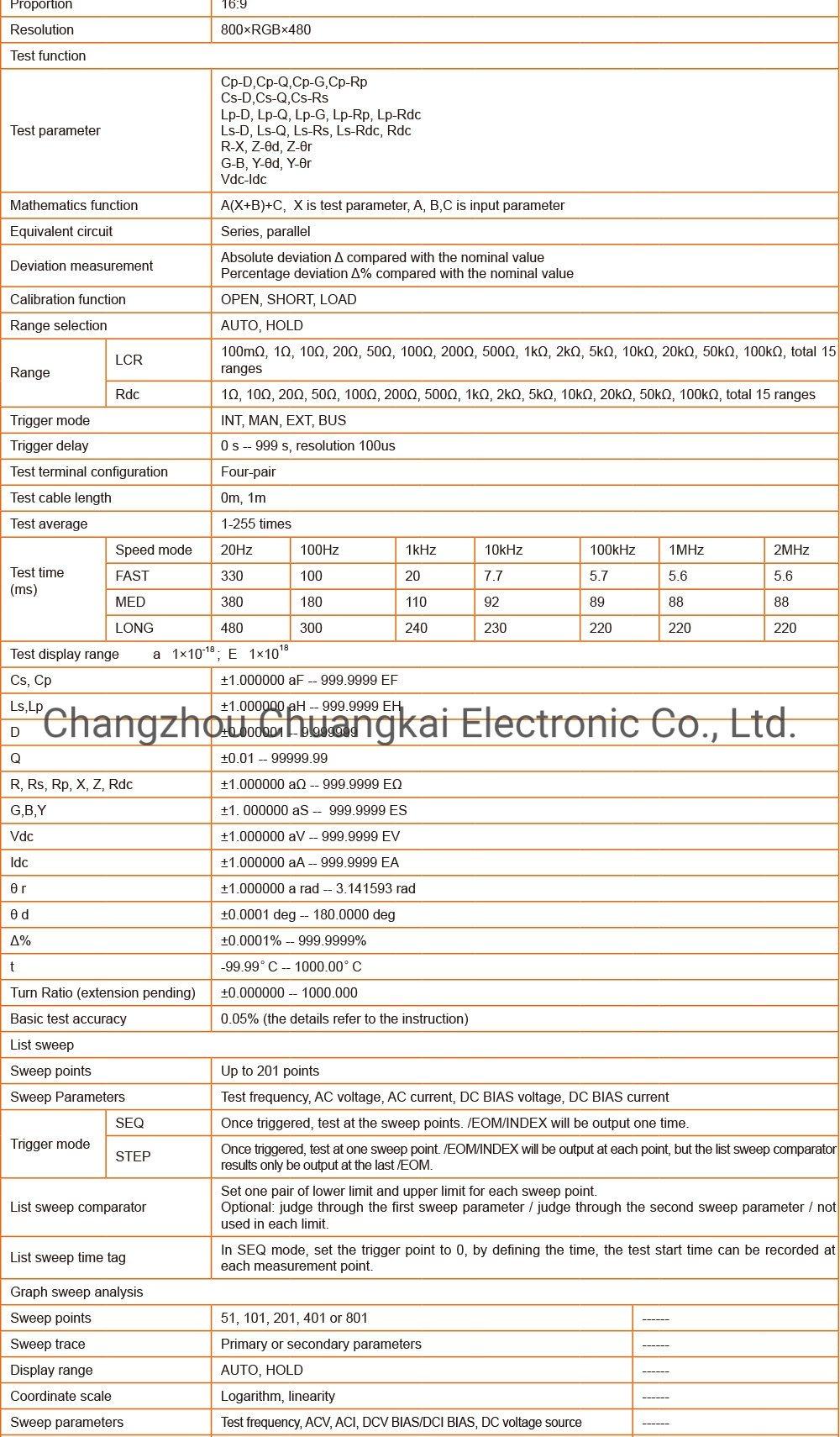

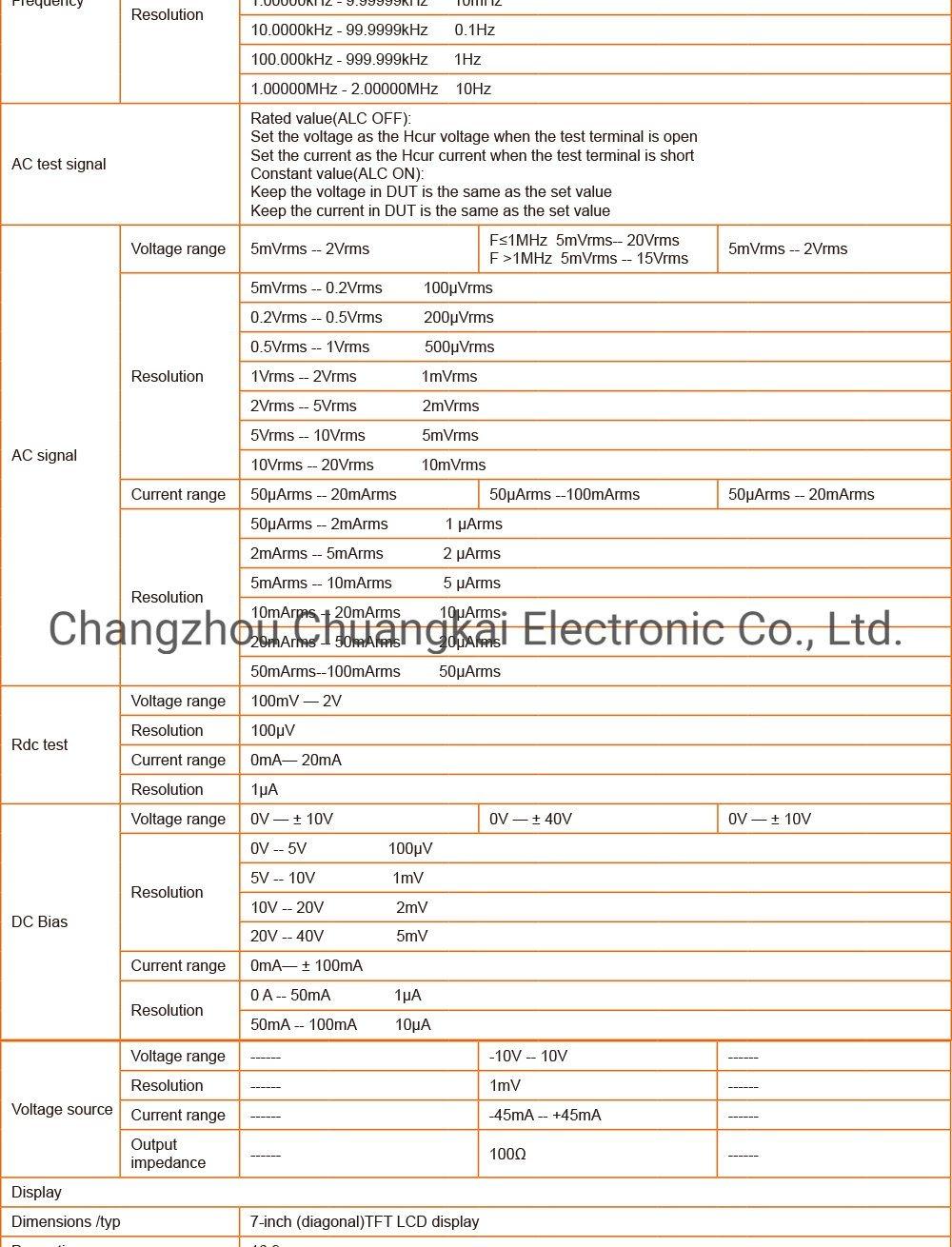

ModelTH2838HTest Signal SourceOutput impedance100Ω, ±1% @1kHzFrequencyRange20Hz-2MHzResolution20.0000Hz - 99.9999Hz         0.1mHz100.000Hz - 999.999Hz         1mHz1.00000kHz - 9.99999kHz      10mHz10.0000kHz - 99.9999kHz      0.1Hz100.000kHz - 999.999kHz      1Hz1.00000MHz - 2.00000MHz    10HzAC test signalRated value(ALC OFF):Set the voltage as the Hcur voltage when the test terminal is open Set the current as the Hcur current when the test terminal is short Constant value(ALC ON):Keep the voltage in DUT is the same as the set valueKeep the current in DUT is the same as the set valueAC signalVoltage rangeF≤1MHz 5mVrms--20Vrms  F>1MHz  5mVrms--15VrmsResolution5mVrms -- 0.2Vrms          100μVrms0.2Vrms -- 0.5Vrms         200μVrms0.5Vrms -- 1Vrms            500μVrms1Vrms -- 2Vrms               1mVrms2Vrms -- 5Vrms               2mVrms5Vrms -- 10Vrms             5mVrms10Vrms -- 20Vrms           10mVrmsCurrent range50μArms --100mArmsResolution50μArms -- 2mArms              1 μArms2mArms -- 5mArms              2 μArms5mArms -- 10mArms            5 μArms10mArms -- 20mArms         10μArms20mArms -- 50mArms         20μArms50mArms--100mArms         50μArmsRdc testVoltage range100mV - 2VResolution100μVCurrent range0mA- 20mAResolution1μADC BiasVoltage range0V - ± 40VResolution0V -- 5V                   100μV5V -- 10V                  1mV10V -- 20V                 2mV20V -- 40V                 5mVCurrent range0mA- ± 100mAResolution0 A -- 50mA              1μA50mA -- 100mA         10μAVoltage sourceVoltage range-10V -- 10VResolution1mVCurrent range-45mA -- +45mAOutput impedance100ΩDisplayDimensions /typ7-inch (diagonal)TFT LCD displayProportion16:9Resolution800×RGB×480Test functionTest parameterCp-D,Cp-Q,Cp-G,Cp-RpCs-D,Cs-Q,Cs-RsLp-D, Lp-Q, Lp-G, Lp-Rp, Lp-RdcLs-D, Ls-Q, Ls-Rs, Ls-Rdc, RdcR-X, Z-θd, Z-θrG-B, Y-θd, Y-θrVdc-IdcMathematics functionA(X+B)+C,  X is test parameter, A, B,C is input parameterEquivalent circuitSeries, parallelDeviation measurementAbsolute deviation Δ compared with the nominal valuePercentage deviation Δ% compared with the nominal valueCalibration functionOPEN, SHORT, LOADRange selectionAUTO, HOLDRangeLCR100mΩ, 1Ω, 10Ω, 20Ω, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, total 15 rangesRdc1Ω, 10Ω, 20Ω, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, total 15 rangesTrigger modeINT, MAN, EXT, BUSTrigger delay0 s -- 999 s, resolution 100usTest terminal configurationFour-pairTest cable length0m, 1mTest average1-255 timesTest time(ms)Speed mode20Hz100Hz1kHz10kHz100kHz1MHz2MHzFAST330100207.75.75.65.6MED38018011092898888LONG480300240230220220220Test display range         a   1×10^-18 ;  E   1×10¹⁸Cs, Cp±1.000000 aF -- 999.9999 EFLs,Lp±1.000000 aH -- 999.9999 EHD±0.000001 -- 9.999999Q±0.01 -- 99999.99R, Rs, Rp, X, Z, Rdc±1.000000 aΩ -- 999.9999 EΩG,B,Y±1. 000000 aS --  999.9999 ESVdc ±1.000000 aV -- 999.9999 EVIdc±1.000000 aA -- 999.9999 EAθ r±1.000000 a rad -- 3.141593 radθ d±0.0001 deg -- 180.0000 degΔ%±0.0001% -- 999.9999%t-99.99°C -- 1000.00°CTurn Ratio (extension pending)±0.000000 -- 1000.000Basic test accuracy0.05% (the details refer to the instruction)List sweepSweep pointsUp to 201 pointsSweep ParametersTest frequency, AC voltage, AC current, DC BIAS voltage, DC BIAS currentTrigger modeSEQOnce triggered, test at the sweep points. /EOM/INDEX will be output one time.STEPOnce triggered, test at one sweep point. /EOM/INDEX will be output at each point, but the list sweep comparator results only be output at the last /EOM.

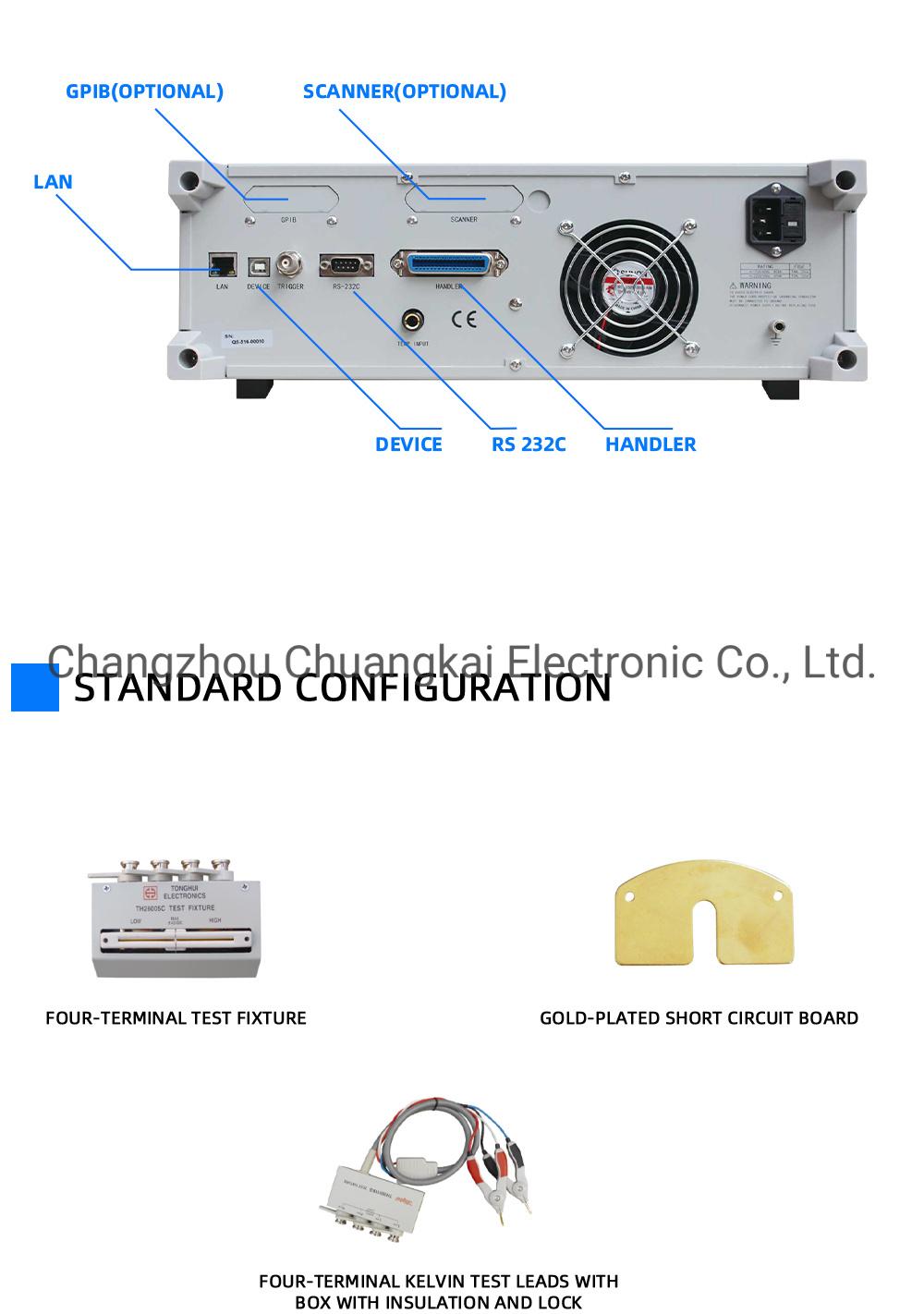

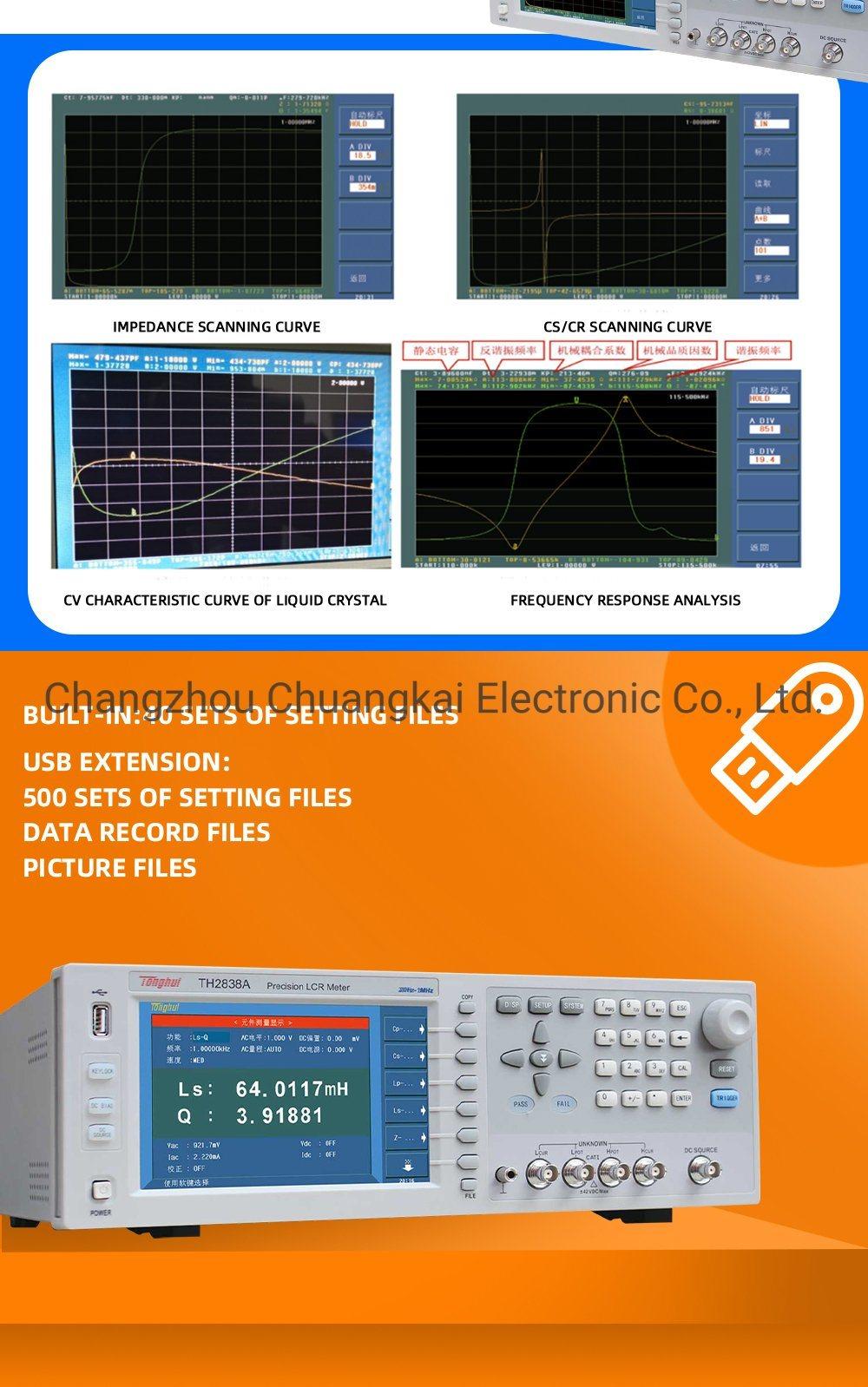

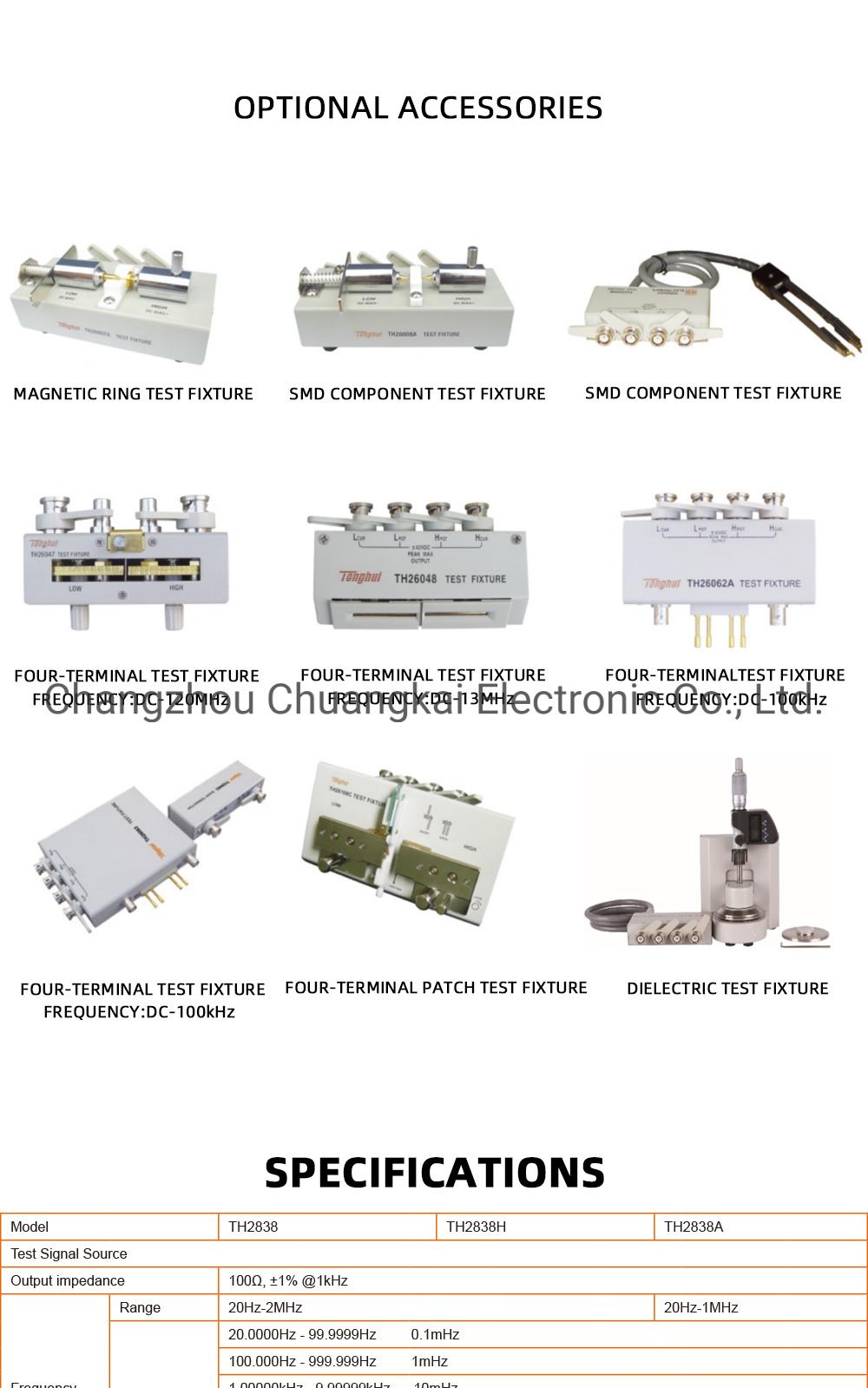

Detailed Photos

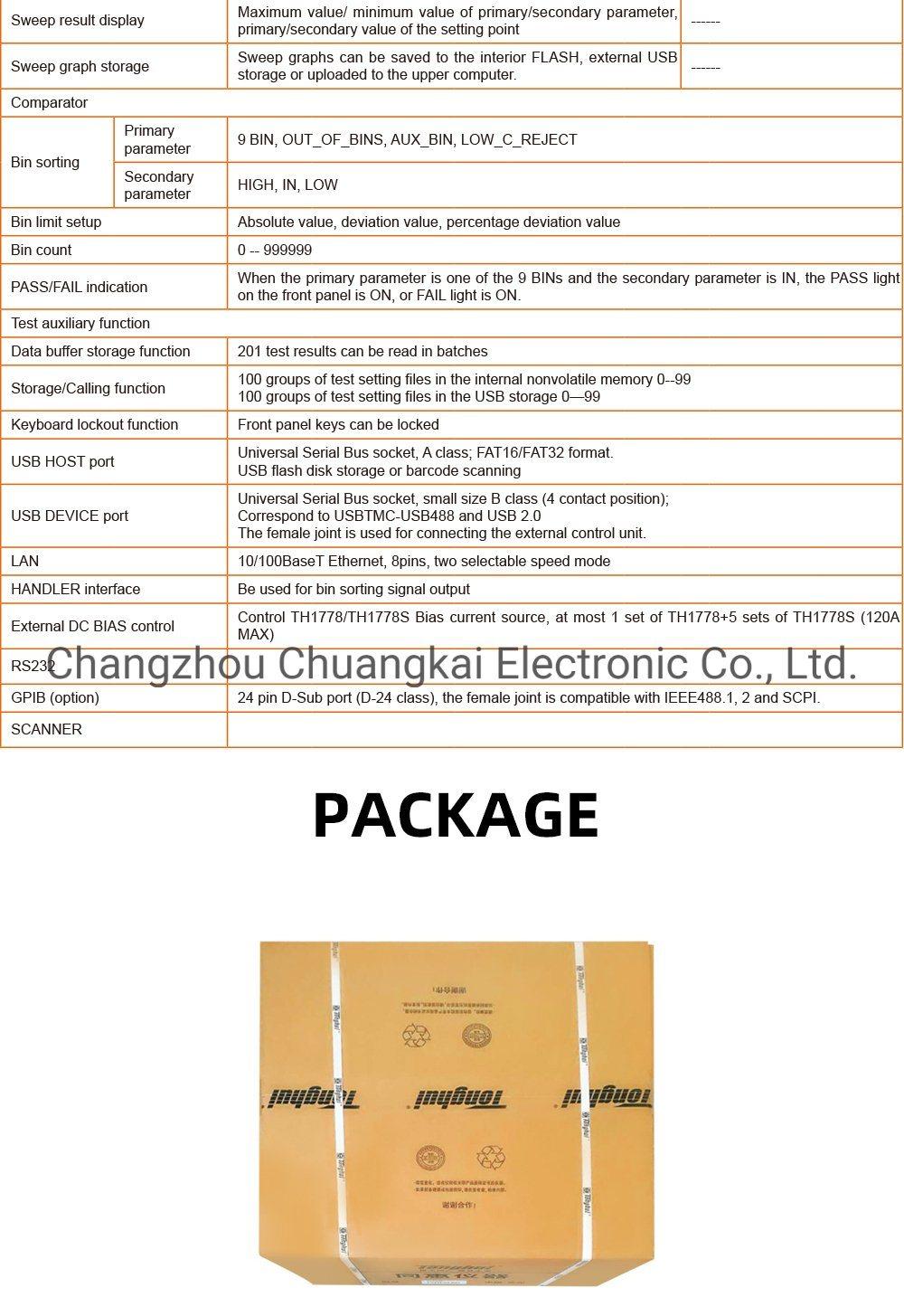

Packaging & Shipping
