High Precision Coal Calorific Value Meter Oxygen Bomb Calorimeter ASTM D240

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Max Diameter of Workpiece：600mm
  • Mass Scope of Workpiece：<900kg
  • Type：Oxygen Bomb Calorimeter
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：GDY-1C
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Top
  • Transport Package：Wooden Case
  • Specification：600mm*460mm*430mm
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：200unit,Month

Description

No.ItemSpecifications1Heat capacity14000~15000J/K2Temperature measurement range10 ~ 35ºC3Temperature resolution0.001 ºC4Repeatability error≤0.2 % (Grade C)5Endured pressure in oxygen bomb20 MPa6Operation environment temperature15 ~ 28ºC(Ambient temperature); Temperature fluctuation is not more than 1 ºC during a test;7Ambient humidityless than 85%8Power supplyAC 220V±5%, 50 Hz



Related Models:

ParametersGDY-1AGDY-1A+GDY-1CTest modeManualdigital with color LCD displayFully automated controlled by PCHeat capacity(14000~15000) J/K(14000~15000) J/K(14000~15000) J/KTemperature resolution0.001K0.001K0.001KControl modelIn-build computerMicro-computerComputerComputer interfaceNONOYESPrintingNowith built-in printerwith external printerPacking Size

72*59*51;

47*47*28;

71*56*50;

46*37*26;

69*55*48;

45*37*25;

58*52*84;

Gross Weight40kg33kg63kg

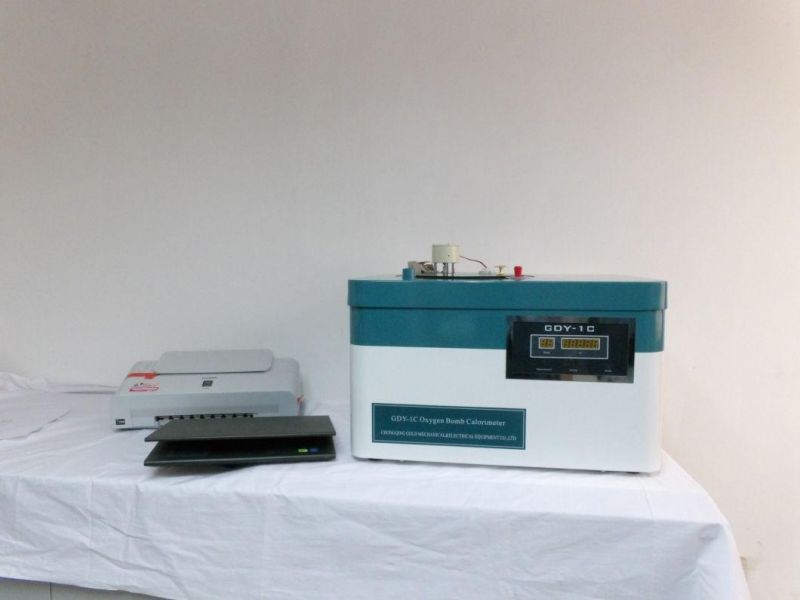

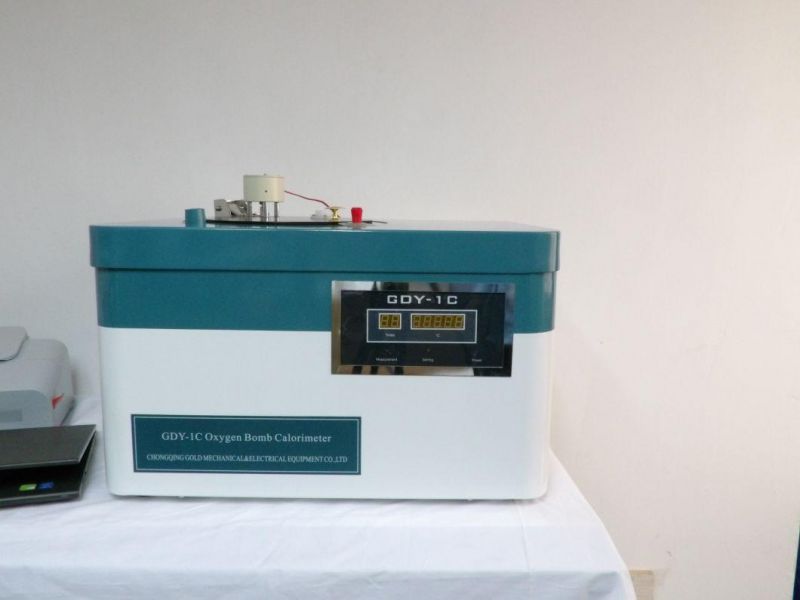

Detail Images:
Automatic Oxygen Bomb Calorimeter for Testing Calorific Value of Oil Products and Combustible Material

High Precision Coal Calorific Value Meter Oxygen Bomb Calorimeter ASTM D240
