• Model NO.：HZ2691
• Weight：0-100Kg
• Power Source：AC220V
• Brand Name：Impulse Winding Tester
• Frequency：50Hz
• Rated Current：Rated Current
• Voltage Stability：Random Fluctuations, Supply Voltage Transformation
• Working Style：Intermittent Use
• Ripple Factor：≤0.5%
• Power Supply：Single-Phase Current 50Hz
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9030339000
• Production Capacity：100 PCS,Month

Specifications

Output for Impulse Voltage

HZ2691-5000V

HZ2691_5S4

HZ2691_5S2

100V~5000V

10V steps

5%±10V

HZ2691-3000V

100V~3000V

10V steps

5%±10V

Inductance Test Range

More than 10μH

Impulse Energy

Max 250mili-Joules

LCD Display Resolution

Waveform Display Area

Contents

800 x 480 dot-matrix LCD

650×250 dot-matrix(Support 1.5 times amplification

display)

Setup parameters, standard wave and test wave,

comparison result, file information, etc.

Sample Wave

Sampling rate: Max. 100MSPS, 10 grades(adjustable)

Resolution: 8bits

Memory depth: 6500 Bytes

Input Impedance

10M

Test Speed

Single-channel test: 15 times/sec

Multi-channels test: 2 times/sec

Averaging Rate

Number of test impulse

1 to 32 averaging rate

programmable

Number of demagnetizing

impulse

0  to  8  averaging  rate

programmable

Measurement Functio

Voltage, Time and Frequency

Trigger Mode

Internal, Manual(Foot), External and Bus

Comparison Method

Area Size Comparison

Differential Zone Comparison

Corona Discharge Comparison

Differential Phase Comparison

Area Size  Measurement

Accurac

±1%

Area  Difference

Measurement Accuracy

±1%

Comparison Output

PASS/FAIL display

Beeper alarm and Light alarm

Beep Mode

Long High, Long Low, Single Short, Double Short tone and

OFF

Memory

Built-in

200 files

USB disk

500 files(standard waveforms and measurement settings)

Interface

Handler(START,STOP,PASS,FAIL ,BUSY,EOC)

RS232C

USB Device(support USB TMC and USB CDC)

USB Host(support FAT16 and FAT32, GIF)

GPIB(option)

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

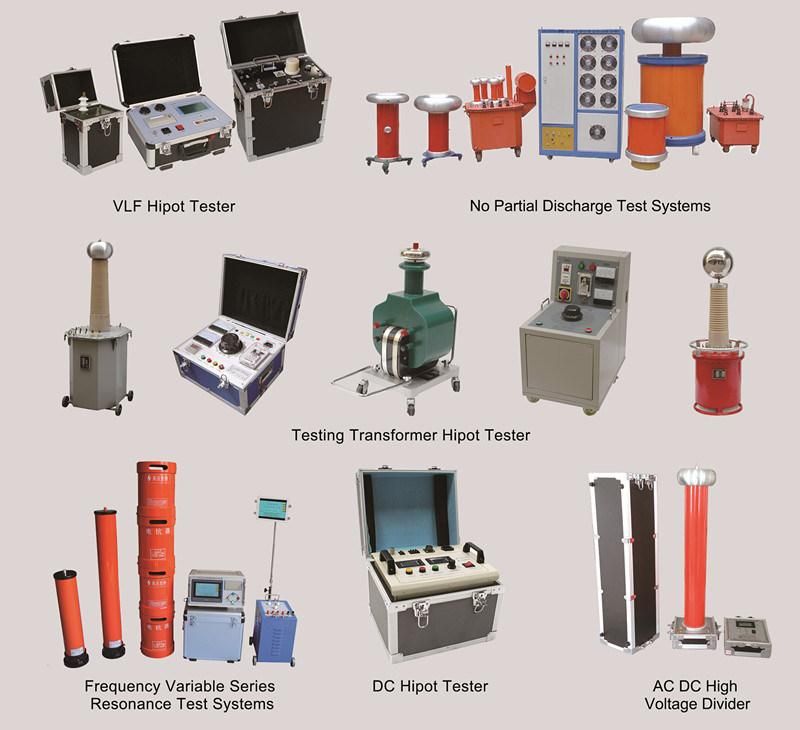

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
