Metallographic Sample Mosaic Machine
Suzhou Qiantong Instrument Equipment Co., Ltd.- Accuracy Grade:1
- Loading Method:Static Load
- Display:Digital
- Control:Manual Control
- Weight:31kg
- Power Source:AC220V
Base Info
- Model NO.:QT-HM1000
- Delivery Time:3 Days
- Wararanty:1 Year
- Transport Package:Wooden Case
- Specification:310*300*400mm
- Trademark:QIANTONG
- Origin:Jiangsu, China
- HS Code:8479899990
- Production Capacity:423 Set
Description
Basic Info.
Model NO. QT-HM1000 Delivery Time 3 Days Wararanty 1 Year Transport Package Wooden Case Specification 310*300*400mm Trademark QIANTONG Origin Jiangsu, China HS Code 8479899990 Production Capacity 423 SetProduct Description

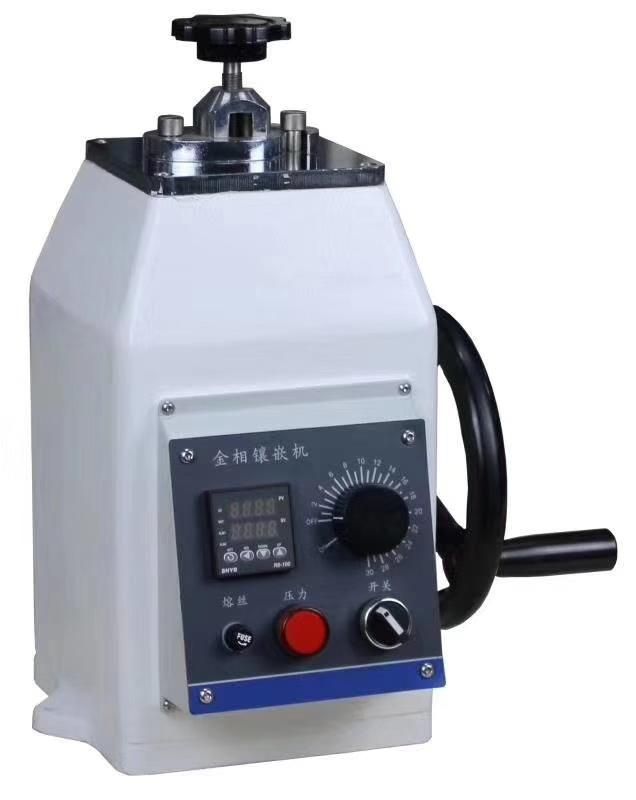

1. Qiantong main scope of testing machineElectronic universal material testing machine, Horizontal tension testing machine, Hydraulic universal testing machine, MFI, Charpy Impact, Izod Impact, HDT-Vicat tester, Hardness tester, Torsion tester, Metallographic series, Oven and so on. (We accept customization.)QT-HM1000 Metallographic sample mosaic machine2. ProductFeatures
Operation is easy and convenient
- Temperature digital display control, automatically heat and thermal
- Sample timing control, when the timing is finished, it will have the voice to prompt completion and can cut the power automatically. Using the power is more safe.
- It has the pressure prompt indicator light. When the light is on, it means the pressure is reached; otherwise, it needs more pressure.
- It has safety protection lid. When you take the sample out, you can put the sample mode on a safety position to avoid bouncing and damage safety of people and estate.
- It has beautiful and firm shape.
Name | Specification |
Diameter of mould | Standard configuationφ30mm(φ22mm/φ40mm/φ45mm) |
Heater | φ22mm and φ30mm power:450W φ40mm and φ45mm power:650W |
Mosaic temperature range | 0~200ºC adjustable |
Temperature display | Setting and actual temperature LED display |
Mosaic time range | 0~30min |
Cooling method | Air |
Pressurization mode | manual |
Power | AC220V 50HZ |
Shape size | 310×300×400mm |
Weight | 31Kg |
Name | Number | Name | Number |
Inlay(HM1 black) | 1 bottle | Instruction manual | 1 piece |
spoon | 1 piece | certification | 1 piece |
