• Model NO.：TPZ-1
• HS Code：90248000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. TPZ-1 HS Code 90248000 Production Capacity 1000PCS/Year

Product Description

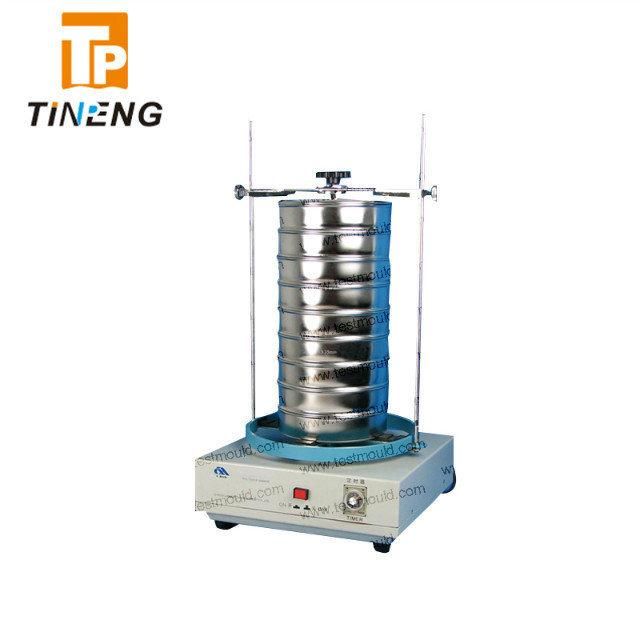

Test Sieve Shaker

1. General Description:

This new and advanced sieve shaker fully satisfy the standards, which require that the test material on any given sieve progresses over the surface of the sieve when it is agitated. Conforming to ISO 3310-1 it can hold round sieves up to 315 mm dia. The main features of this shaker consists in the multiple vibration motion:



Vertical by the electromagnet

Rotational by the three laminated

suspension springs in both ways.

The shaker is provided with a microprocessor

digital control system with display unit for the following functions:

Timer 0-99 min by 1 min steps or continuous operation

Continuous or intermittent operation

(very important for critical products to intensify the sieving action reducing the duration of operation)

Adjustable vibration intensity



The shaker is also fitted with antivibration dampers, which totally isolate the machine from work surfaces reducing the noise level.



2. Specification:

1). Mate boult diameter: 300mm, 200mm

2). Swing times: 221times/ min.

3). Swing journey: 25mm

4). Peak attack times: 147 times/ min.

5). Peak attack journey: 8mm

6). Working voltage: AC380V or 220V



3. Main features

1). Multiple sieving motions

2). Microprocessor digital control system

3). Continuous or intermittent operation

4). Adjustable vibration intensity

5). Timer

6). Antivibration damper system

7). Fast clamping





1.Shaking frequency: 500 times/min.

2.Shaking method: up and down

3.Shaking amplitude: 1.5 mm

4.Time setting: 0 - 60 min. selectable

5.Motor power: 25 W

6.Sieve size: Ø200 x 50 mm (9pieces) orØ300 x 75mm (7pieces)

7.sieve opening: 20 - 0.75 mm

8.Power supply: 220 V 50 Hz

9.Dimension: 430 x 430 x 750 mm³

10.Weight: 16 kg
