• Model NO.：HD-E702

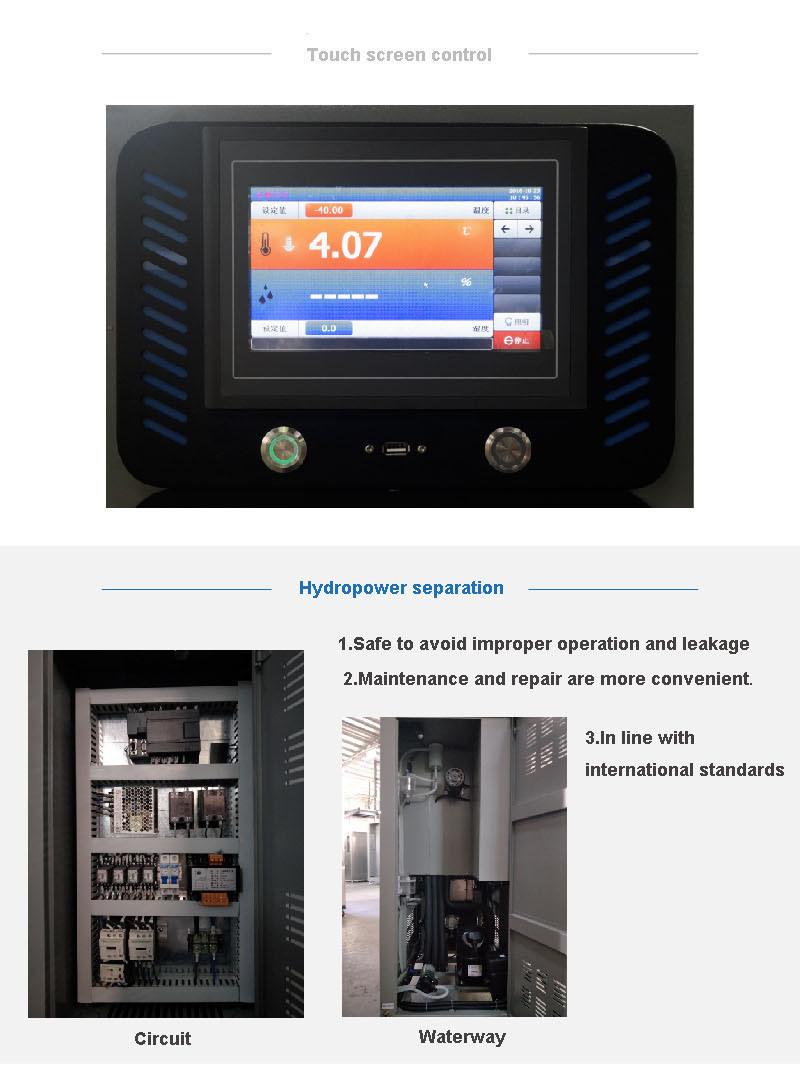

• Control：PLC
• Weight：100-500Kg
• Power Source：AC220V

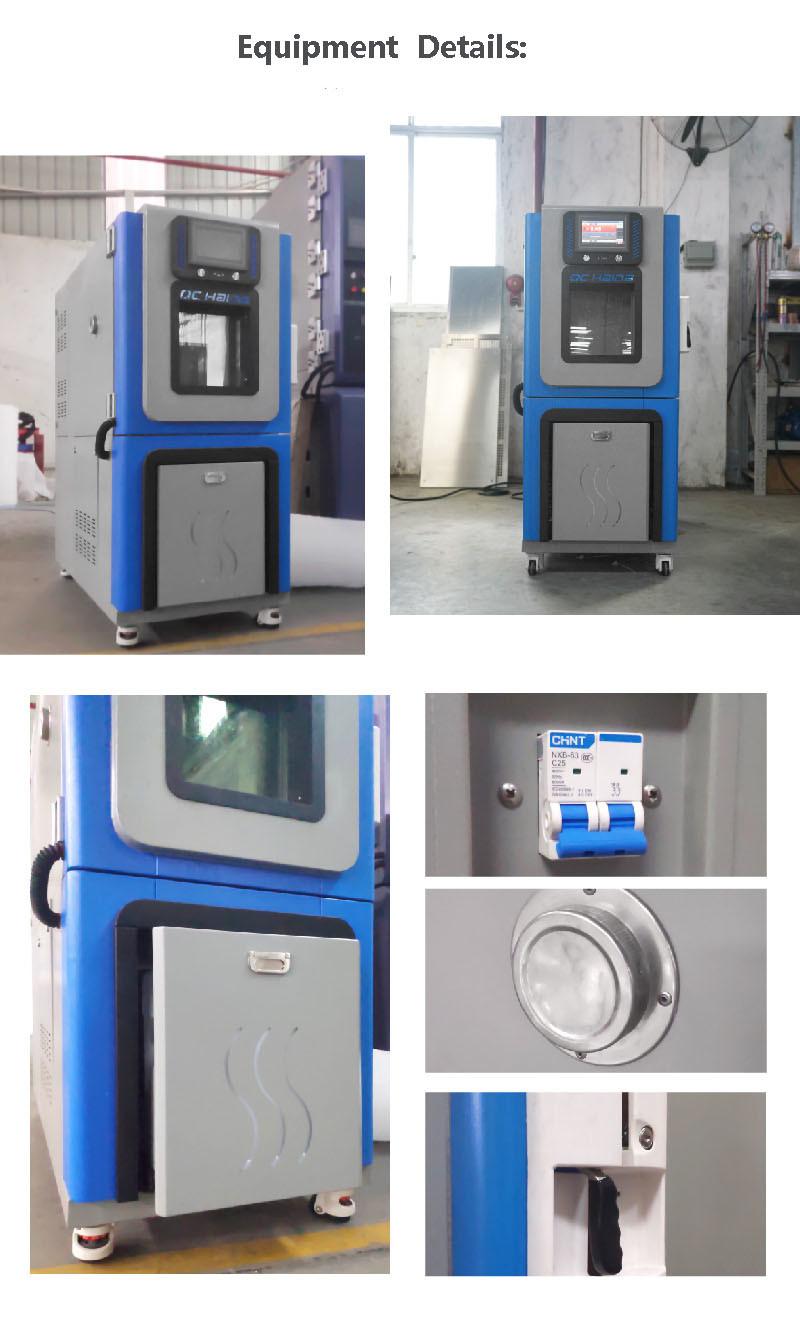

• Product Name：Tenperature and Humidity Chamber
• Certificate：ISO9001: 2008
• Warranty Period：12 Months
• Inside Dimensions：400mm*500mm*500mm(W*H*D)
• Exterior Dimension(W* D* H)：620mm*1390mm*1410mm(W*H*D)
• Insulation：Rigid Foam
• Refrigeration System：Air Cooled, Hermetic Compressor, Single Stage Ref
• Accessories：Viewing Window, Shelves (Freely Adjustable 2 PCS.
• Humid. Range：20 ~ 98 Percent R. H.
• Temperature Range：-40ºC ~ + 150ºC
• Transport Package：Strong Wooden Case
• Specification：GB,T10586, Gb11158, Gb10589, GB,T2423, GJB150.9A
• Trademark：HAIDA
• Origin：Dongguan, China
• Production Capacity：150 Sets,Month

HD-E702-100K40Capacity100LInternal dimensions400mm*500mm*500mm(W*H*D)External dimensions620mm*1390mm*1410mm(W*H*D)Temperature Range-40ºC ~ + 150ºCHumidity Range20%~98%RHTemperature resolution0.01ºCHumidity resolution0.1%R.HTemperature deviation±0.5ºCHumidity deviation±2%R.HTemperature uniformity<= 2ºCHumidity deviation±3%R.HTemperature fluctuation±0.5ºCHumidity fluctuation± 2%R.HHeating rate>= 3ºC / min(-40ºC → + 150ºC)Cooling rate>= 1ºC / min(150ºC → -40ºC)CompressorImported French Taikang fully enclosed compressorRefrigerantEnvironmental protection refrigerant R404A/R23Cooling methodSingle-stage coolingBlowerCentrifugal fan with forced circulationEvaporatorFinned tube heat exchangerCondensation methodAir-cooledCondenserAir-cooled scale condenser, cooling fan coolingFilter drierAbsorbs residual moisture and acidic substances in the refrigerant of the refrigeration system, and filters out solid rest particles and copper shavings in the system to protect the normal operation of the expansion valve and capillary from ice and dirty pluggingHumidification systemStainless steel humidifierHeating systemNickel chromium alloy stainless steel heaterWater supply systemFront-mounted water supply tank, automatic water supply systemControllerTaiwan Visuo ControllerSetting methodChinese / English interface, touch inputOperation modeProgram method / fixed value methodPredetermined areaMaximum temperature range: 5 ºCStorage functionStandard configuration 2G SD card to record test data curve, can upload and download data, expand storage capacitySafety protection measuresThe overall equipment is over temperature, the fan is overheated, the overall equipment is under-phase / reverse-phase, the refrigeration system is overloaded, the refrigeration unit is over-pressured, the overall equipment timing, leakage, operation indication, automatic shutdown after failure alarm, etc.Case shellHigh-quality cold-rolled steel plate electrostatic spray (1.2mm thick)Chassis inner wallSUS304 # stainless steel plate (1.2mm thick)Insulation material100mm polyurethane rigid foam + 100mm high density glass fiber cottonStandard configurationφ50 test hole, lighting lamp, double-layer vacuum strengthened glass observation windowWeight150kgElectric current6APower5.5kwPower supplySingle phase, 220V, 50 / 60HZ(The above parameters are machine standard parameters and can be customized according to your requirements)




The Introduction Of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    --24 Hours online service for your consult.
    --Help choose right model,and a series of service,person,advise.
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc



Customer Feedback:



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
