• Model NO.：TYPE 82,TYPE 85
• HS Code：90248000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. TYPE 82/TYPE 85 HS Code 90248000 Production Capacity 100 Sets/Month

Product Description

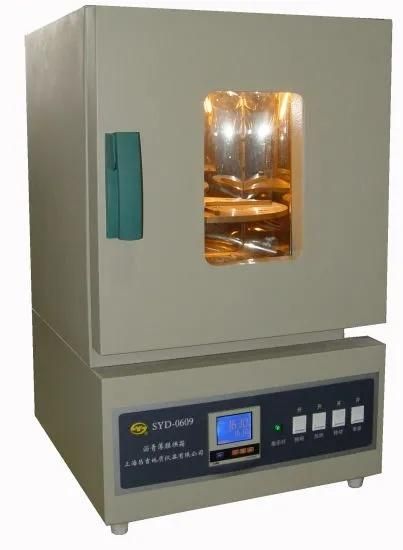

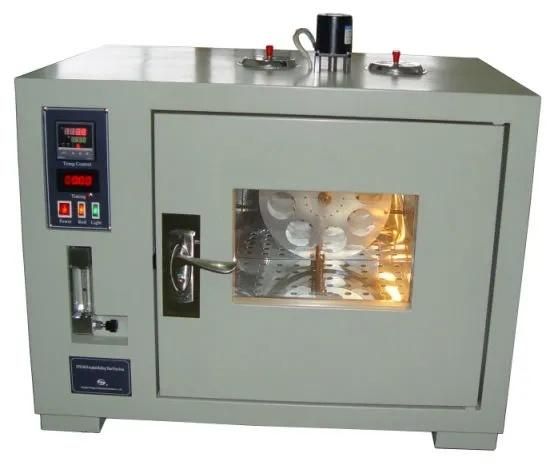

Asphalt Rolling Thin Film Oven

STANDARD: ASTMD2872
    The rolling thin film oven is used to measure the effect of heat and air on a moving film of semi-solid asphaltic
material. The results of this treatment are determined from measurements of the asphalt properties before and after the test. Through the use of a programmable temperature controller and 4-digit digital display system, the oven accurately maintains the specified test temperature of 163°C. The oven includes a 200 to 14,000 ml/min flow meter, 0 to 100 psi air pressure gauge, rotating test rack and eight glass specimen jars. Overall dimensions 40"W x 36"H x 26"D (1016 x 3292 x 660mm). Meets ASTM D2872, AASHTO T240 and California test method 346. A clean, dry compressed air source is required for oven operation.


TYPE 85
Power supply: AC 220V±10%, 50 Hz
Heating power: 2.4 kW
Temperature in working chamber: 163ºC
Temperature controlling accuracy: ±0.5ºC
Speed of dial: 15±0.2 RPM
Air fl ow rate: 4000±200mL /min
Timing device: 85 minutes
Ambient temperature: 5~50ºC
Relative humidity: 85%
Total power consumption: not more than 2.6 kW


TYPE 82
Power supply: AC 220V±10%, 50 Hz
Heating power: 2.5 kW
Temperature in working chamber: 163ºC±0.5ºC
Temperature controlling accuracy: ±0.5ºC
Speed of dial: 5.5r/min±1r/min;
Air fl ow rate: 4000±200mL /min
Sample quantity: 4 pieces
Ambient temperature: 5~50ºC
Relative humidity: 85%
Size of working chamber: 450×450×510mm
