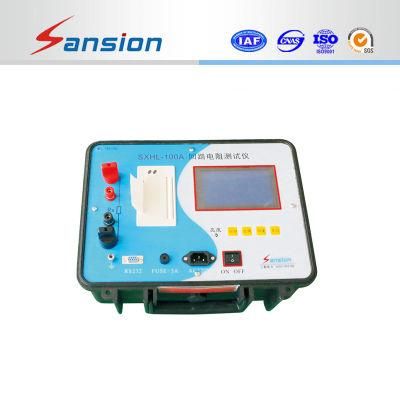

Low Price 100A 200A 300A DC Contact Resistance Tester Loop Resistance Tester

Sansion Power Electric Co., Ltd.
  • Display：LCD
  • Control：Computer Control
  • Weight：15kg
  • Power Source：AC220V
  • Current Range：200A
  • Duty：Continuous

Base Info

  • Model NO.：SXHL
  • Measuring Time Setting Range：15-60s
  • Input Voltage：220V AC 50Hz
  • Screen：LCD English Interface
  • Transport Package：Plywood Case
  • Specification：ISO9001 SGS
  • Trademark：Sansion
  • Origin：Wuhan, China
  • HS Code：9030339000
  • Production Capacity：1000 Units

Description

Measure range: 0-14999.9μΩResolution:0.01μΩTest current:50A-100A-150A-200A is convertible. (current is at your customized)Accuracy:0.5%±5digitScreen:LCD English interfaceMax. output voltage:DC 5V/10VStandard output current:DC 50A-100A-150A-200ADuty:ContinuousInput voltage:220V AC ±10% 50Hz±5HzMeasuring time setting range:15-60S
More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
